NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
3

Overview

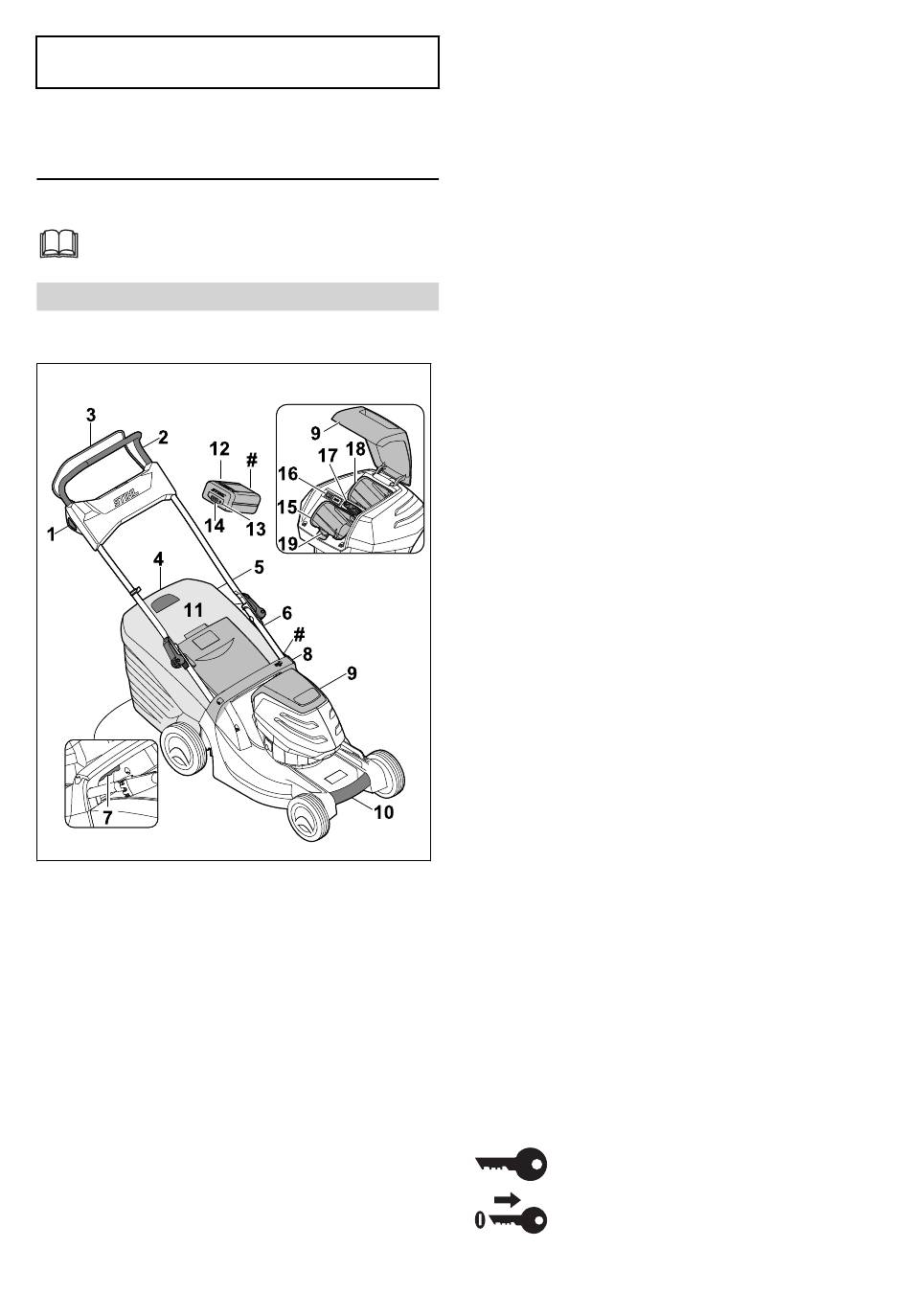

3.1 Lawn Mower and Battery
1 Locking button
The locking button switches the blades on
and off together with the control bar for mow‐
ing.
2 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
3 Control bar
The control bar switches the blades on and
off together with the locking button.
4 Level indicator
The level indicator shows how full the grass
catcher box is.
5 Grass catcher box
The grass catcher box collects the mown
grass.
24
6 Discharge flap
The discharge flap closes off the discharge
chute.
7 Lever
The lever is used to set the cutting height.
8 Handle
The handle is used to hold the lawn mower
when adjusting the cutting height and to
transport the lawn mower.
9 Flap
The flap covers the battery and activation
key.
10 Transport handle
The transport handle is used to transport the
lawn mower.
11 Quick-clamping devices
The quick-clamping device clamps the upper
handlebar onto the lower handlebar and is
used to fold down the handlebar.
12 Battery
The battery supplies the lawn mower with
power.
13 Button
The button activates the LEDs on the battery.
14 LEDs
The LEDs indicate the battery charge state
and faults.
15 Battery compartment
The battery compartment holds the battery.
16 Transport compartment
The transport compartment holds a replace‐
ment battery.
17 ECO switch
The ECO switch activates and deactivates
ECO mode.
18 Activation key
The activation key activates the lawn mower.
19 Locking lever
The locking lever keeps the battery in the bat‐
tery compartment.
# Rating plate with machine number
3.2 Symbols
The symbols can be on the lawn mower or bat‐
tery and have the following meaning:
This symbol identifies the activation
key.
This symbol identifies the key recepta‐
cle.
3 Overview
