4. Assembly of RollTec
a) Insert the castors with the bore into the vertical frame. Fasten them with the hexagon
screws and the self-arresting screw-nuts in the bores. The brakes have to be locked
into place.
b) Mount and lock the platform (max. into the third rung from below) and the rail braces
as shown on image 2.
c) Mount and lock the diagonal brace (image 2).

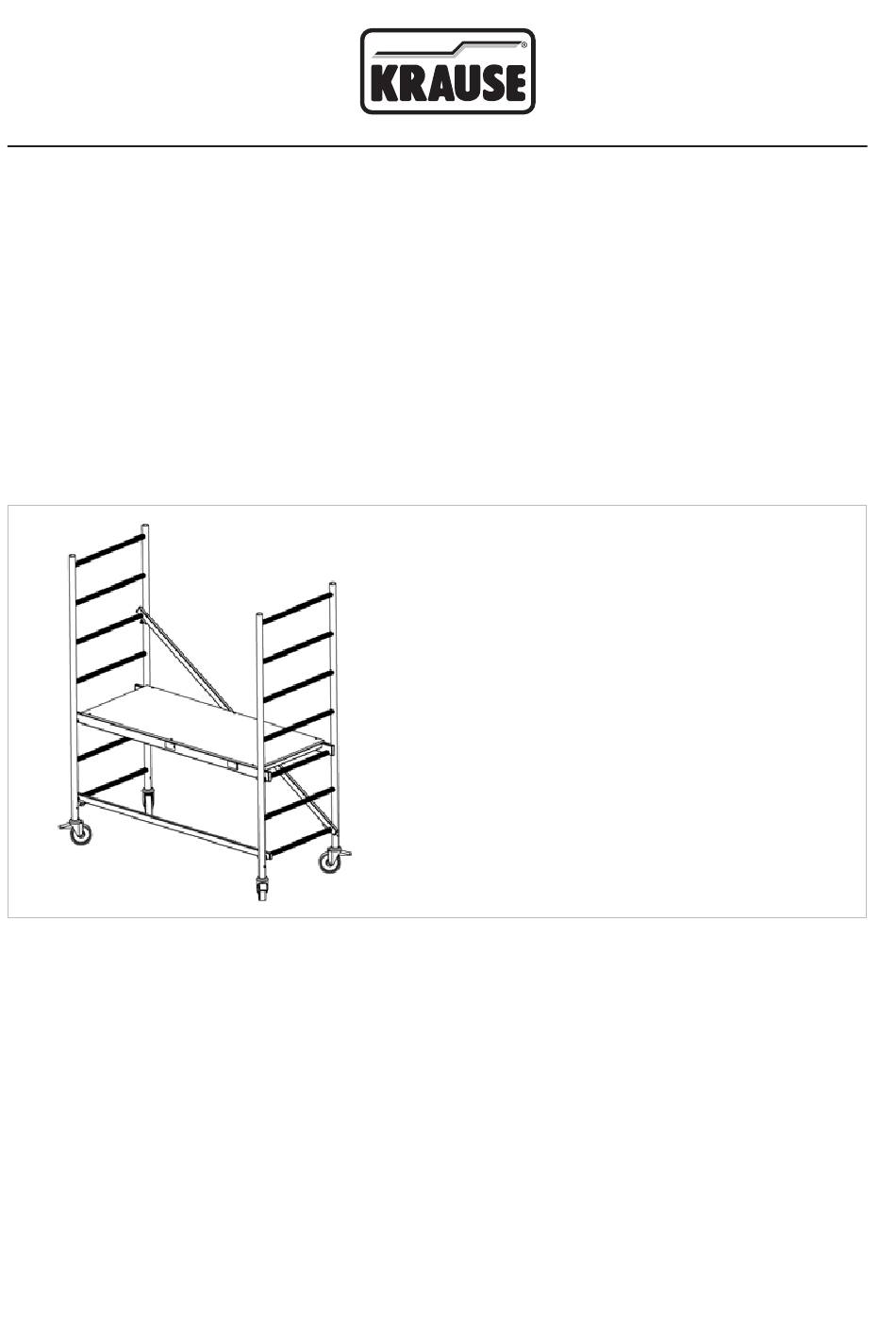

Image 2
Data:
Art.-No. 710307
Max. standing height:
Working height:
Weight:
Loading capacity:
ca. 0,90 m
ca. 2,90 m
ca. 24,0 kg
200 kg/m
2
