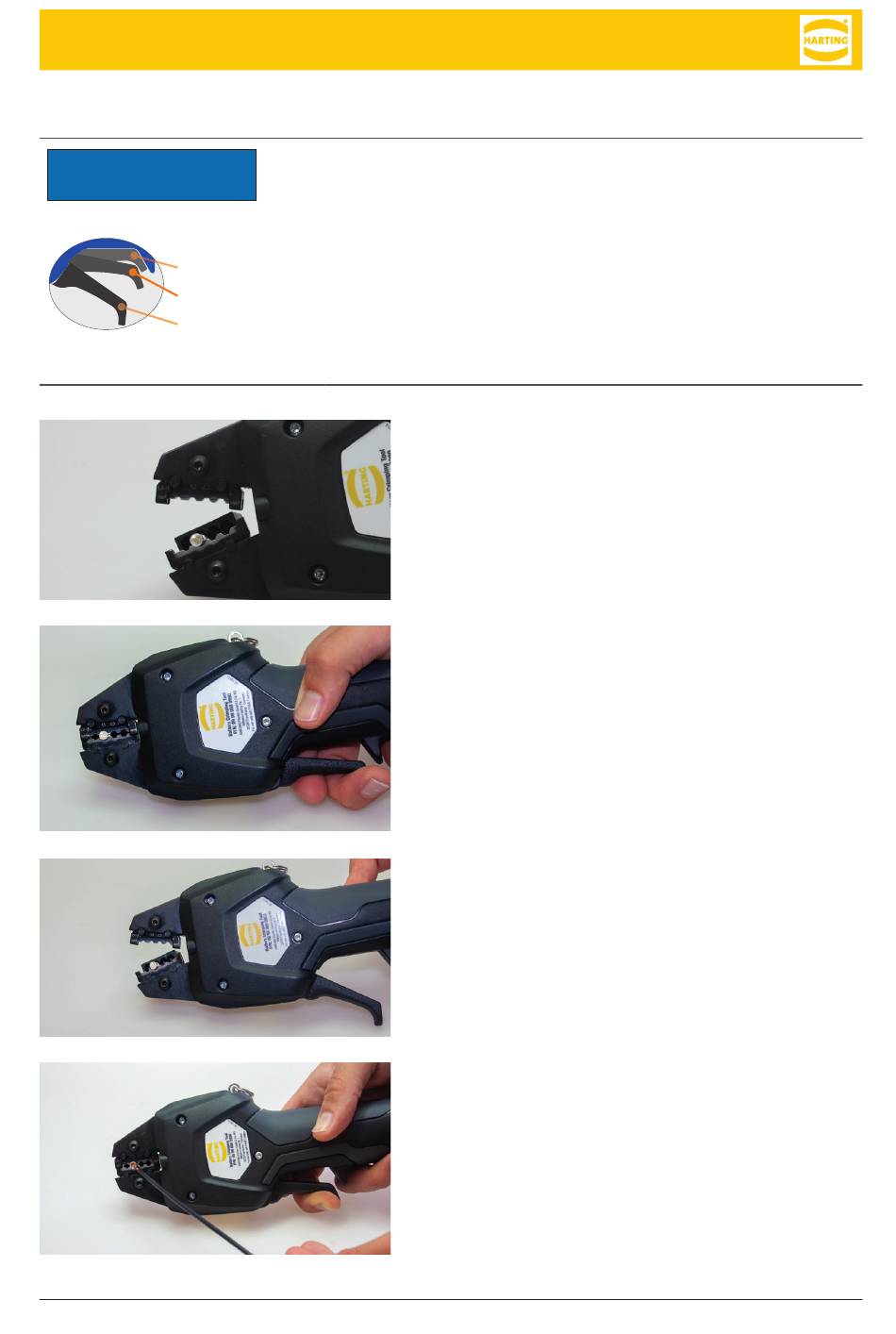

Set up and commissioning
NOTICE
Released
Fixed (II)
Opened (I)
①
Lever:
Stage I
②
Lever:
Stage II
③
Lever:
Stage I
Lever:
Stage II
④
Instruction manual tool 09 99 000 0990 / Betriebsanleitung Werkzeug 09 99 000 0990
Positions of release lever
The lever for triggering the crimping process can take three
different positions:
Stage III (upper position):
(III)
Stage II (mid position):
Stage I (lower position):
crimping die closed, crimping
process starts
crimping die mechanically clo-
sed, contacts can be inserted
crimping die opened
1. Insert the contact into the appropriate
positioner / the appropriate position in the
crimp die.
2. Fix the contact between the upper and
lower die.
3. Lower the release lever so that the die
opens and the contact can be readjusted
if necessary.
4. Fix the positioned contact and insert the
stripped wire.
