Set up and commissioning
Ⓐ
Ⓑ
Instruction manual tool 09 99 000 0990 / Betriebsanleitung Werkzeug 09 99 000 0990
③

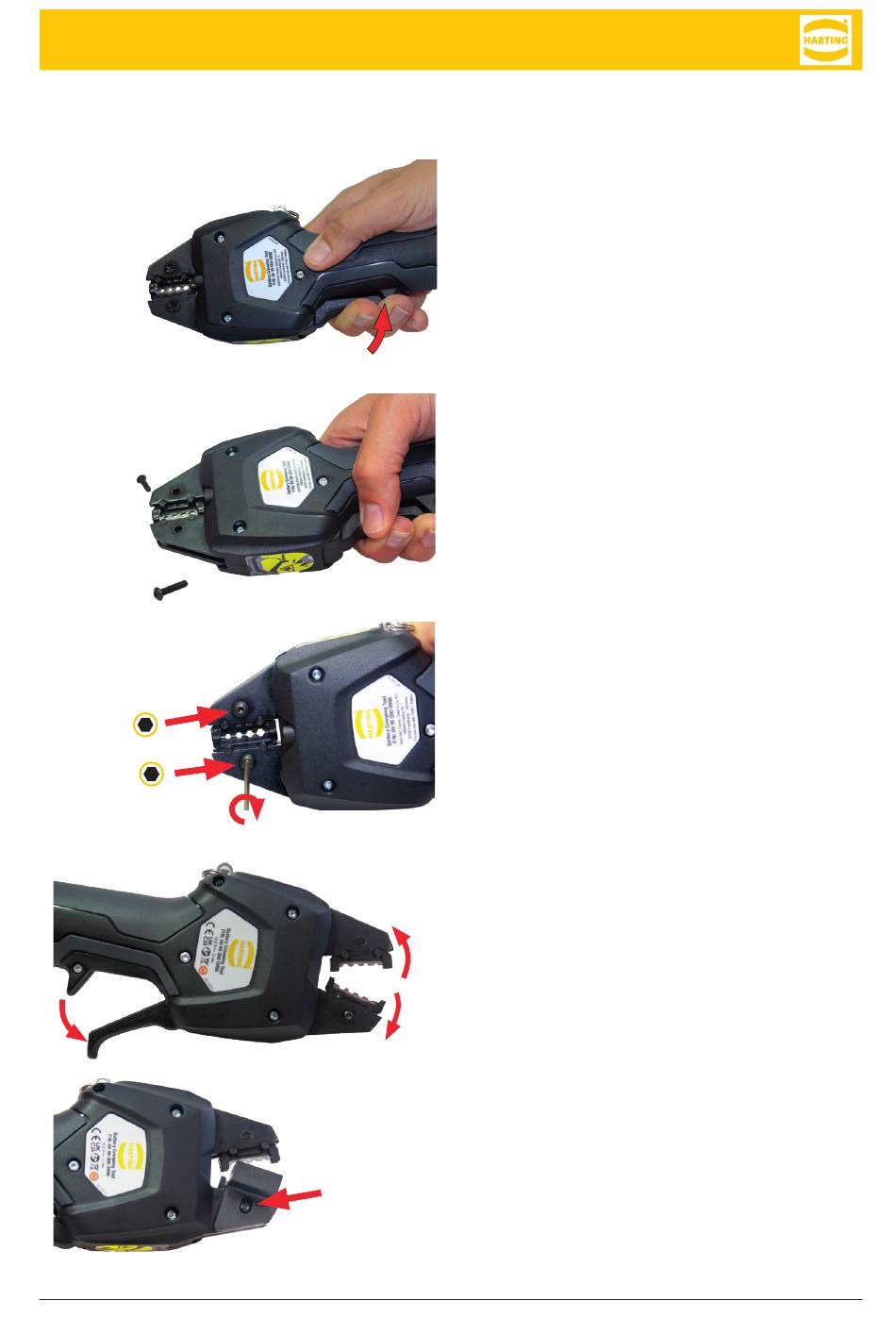

3. Pull up the release lever until the crimp
die closes firmly and both parts of the
crimping die hold position.
④
4. Keep the tool closed so that the up-
per and lower crimp die remain fixed in
the correct position until you tighten the
screws.
⑤
5. Use a 3.5 mm Allen key to tighten both
fixing screws (⇨ red arrows). The recom-
mended torque is 2 N m.
Note: Make sure to use the correct faste-
ning screws to position the locator.
Insert the longer screw Ⓑ in the lo-
wer die, and the shorter one Ⓐ in the
upper die.
⑥
6. Open the crimping tool again.
7. Insert the locator in the designated
⑦
position and fix it with the supplied screw
(➱ red arrow).
▸ Reinsert the battery.
