Cleaning And Maintenance - ECG VT 5220 2in1 Flex Clean Bedienungsanleitung

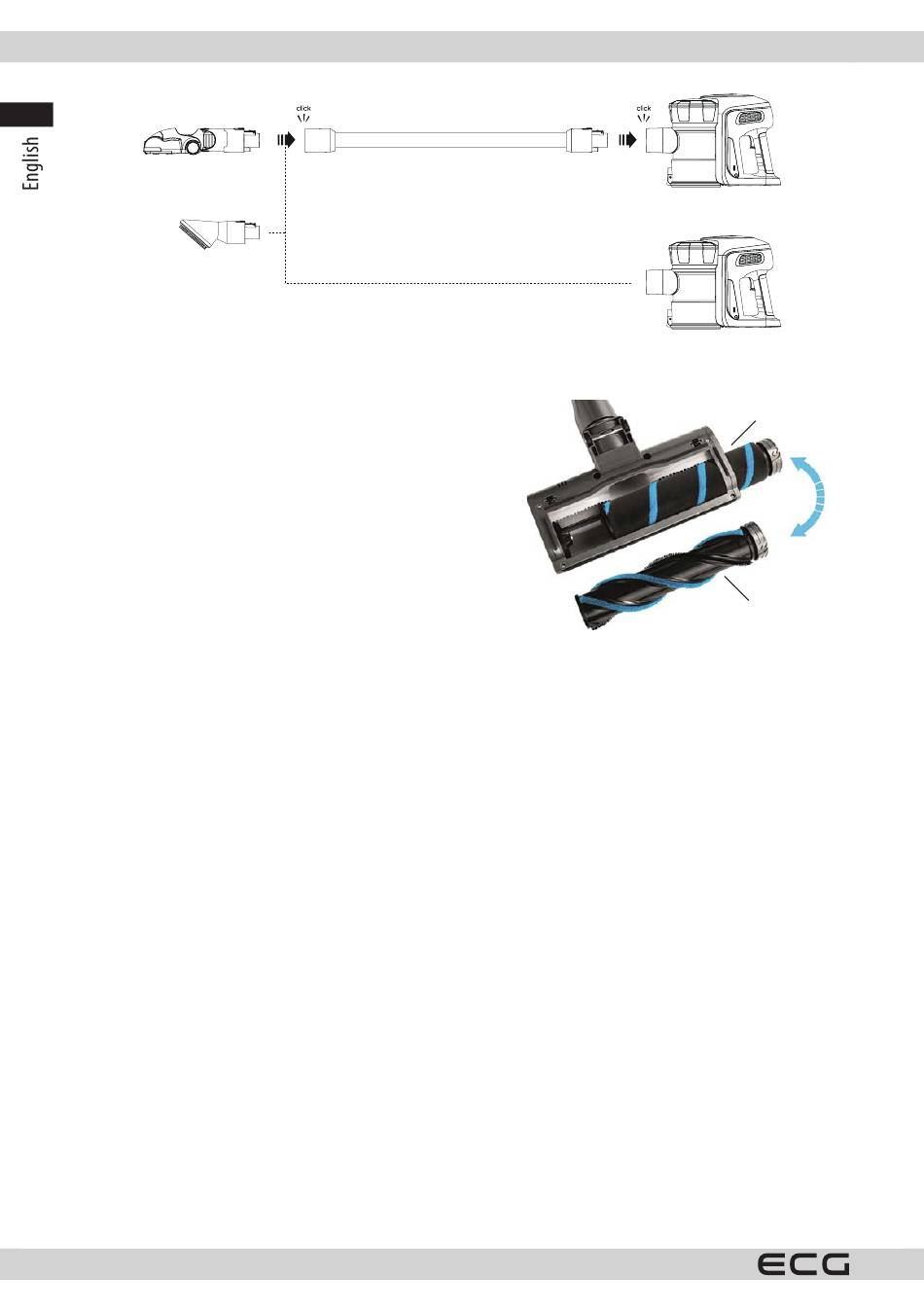

Replacing the roller in the motorised brush (carpets / hard floors)
If you need to change the roller tip in the motorised brush (for
hard floors / carpets); press the brush lock button.
The roller will slide out freely. Insert the desired brush roll, turn
the edge of the brush until it fits into the hole and press to
secure.

CLEANING AND MAINTENANCE

Replacement and cleaning filter and dust
container
To make sure that the vacuum cleaner always delivers
optimum performance, empty the dust container after each
use and clean the filter.
1. Remove the hand-held vacuum cleaner from the holder in the floor vacuum cleaner.
2. Press the dust container release button and remove the container.
3. Remove the dust container filter.
4. Empty the container.
5. Remove the filter cover 0. Remove the Hepa filter and conical microfilter; clean both filters. You can rinse
both filters in cold water and allow the filters to dry thoroughly before reinserting them into the dust
container. Do not wash the dust container filter in the washer. For drying, do not use a hair dryer, allow
the filter let to dry by itself.
6. Replace the filter carefully in the dust container. NEVER use the vacuum cleaner without inserted filter.
7. Insert the dust container in the handheld vacuum cleaner.
WARNING: The suction opening must be permeable and free of obstructions in all circumstances.
Otherwise, it could lead to engine overheating and damage to the appliance.
Note: Depending on the intensity of use, it is recommended that you replace the filter with a new one
every 3 to 6 months to ensure the top performance of the appliance.
8
Hard floor brush
Carpet brush
