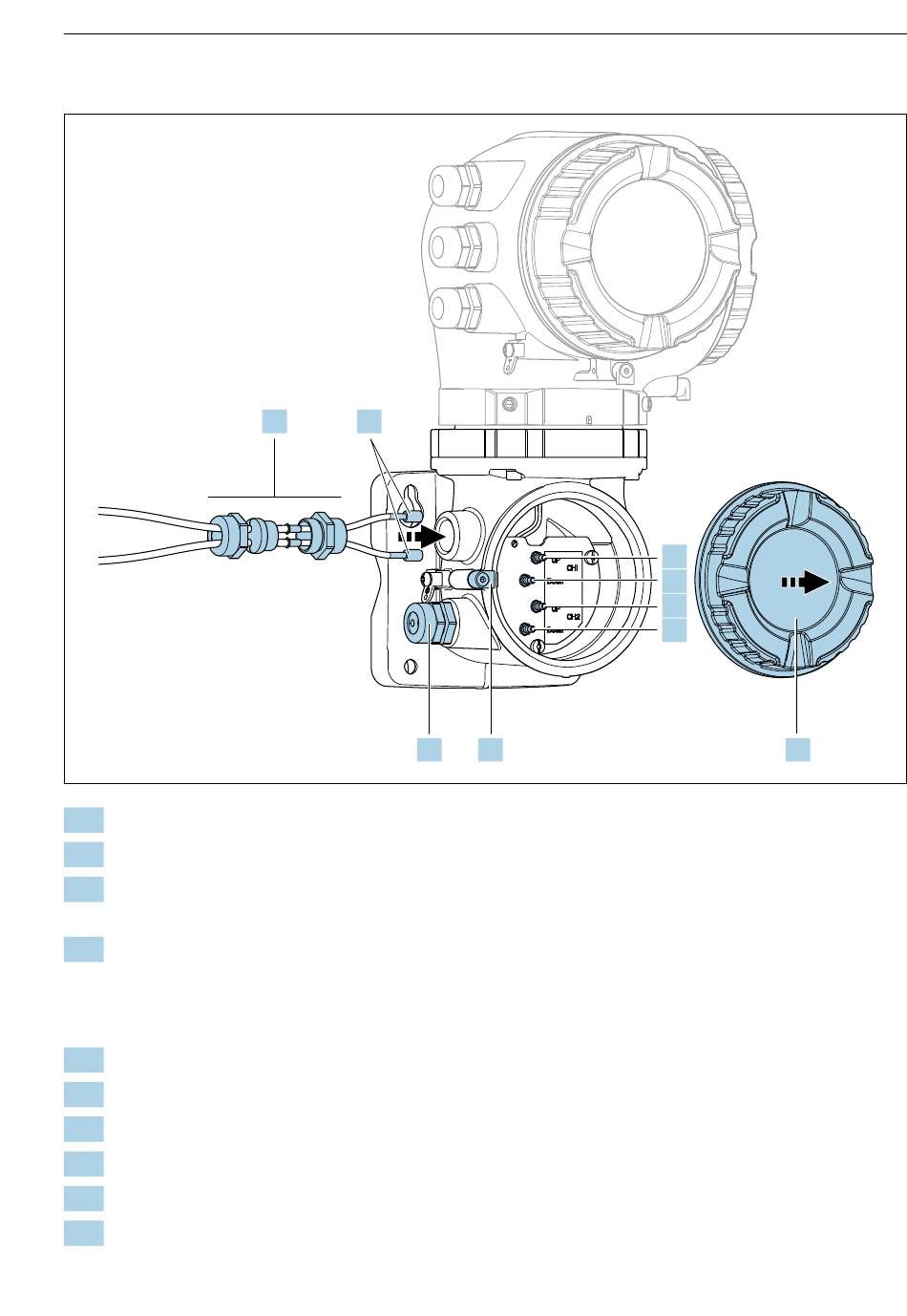

6.1 Connecting the sensor cable to the transmitter
1. Loosen the securing clamp of the connection compartment cover.
2. Unscrew the connection compartment cover.
3. Route the two sensor cables of channel 1 through the slackened top union nut of the
cable entry. To ensure tight sealing, mount a sealing insert on the sensor cables.
4. Mount the screw part of the cable entry in the top housing opening and then guide both
sensor cables through the entry. Then fit the coupling nut with the sealing insert on the
screw part and tighten. Ensure that the sensor cables are positioned in the cut-outs
provided in the screw part.
5. Connect sensor cable to channel 1 upstream.
6. Connect sensor cable to channel 1 downstream.
7. For a two-path measurement: proceed as per steps 3+4
8. Connect sensor cable to channel 2 upstream.
9. Connect sensor cable to channel 2 downstream.
10. Tighten the cable gland(s).
 This concludes the process for connecting the sensor cable(s).
Endress+Hauser
3 4
. .
7
.
1
.
EA01370D
5.
6.
8.
9.
2
.
9
