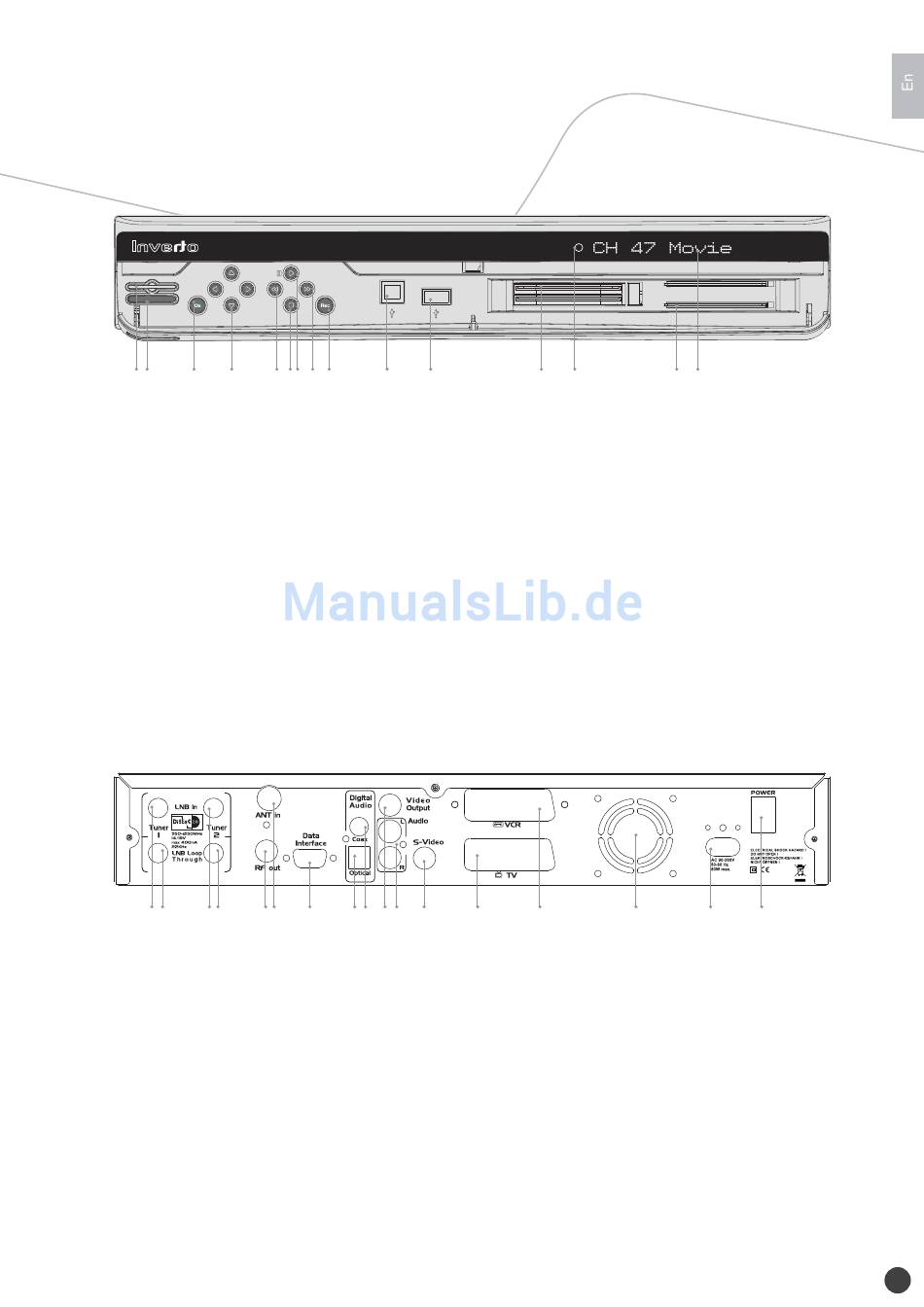

3. Control elements and connections
3.1. Front panel:
1 2
3
4
1.
Standby LED indicator
2.
Standby key
3.
OK key
4.
Navigation (direction) keys
5.
Fast rewind key
6.
Stop key
7.
Play / Pause key
8.
Fast forward key
9.
Record key
10.
USB-B connector
11.
USB-A connector
12.
Common Interface* -
13.
Infrared sensor
14.
CA Interface*
15.
VFD Display (10 digit, 7x5 segment display)
*optional only for certain receiver models
3.2.
Rear Panel:
1 2
3 4
5 6
1.
Antenna input of Tuner 1
2.
Loop through output of Tuner 1
3.
Antenna input of Tuner 2
4.
Loop through output of Tuner 2
5.
RF Modulator output
6.
RF Modulator input
7.
RS-232 Data Interface
8.
Optical digital audio output
9.
Electrical digital audio output
10.
Video output (CVBS, composite, FBAS)
11.
Audio outputs (L/R)
12.
S-Video Output
13.
TV Scart – For connection to the TV set
14.
VCR Scart – For connection to a VCR or DVD-R
15.
Cooling Fan
16.
Mains power connection
17.
Main power switch (On/Off)
5 6 7 8 9
10
11
7
8 9 10 11
12
12
13
13
14
15
14 15
16
17
11
