TRANSLATION OF ORIGINAL MANUAL
DOUBLE PADDLE MIXER
CAUTION: BEFORE USING THE DEVICE READ THIS MANUAL CAREFULLY
AND KEEP IT FOR FUTURE REFERENCE.
DETAILED SAFETY REGULATIONS
a) Use additional handles supplied with the tool. Loss of control may
cause operator personal injury.
b) Whenever working tool can hit hidden electric wires, or its own
power cord during operation, hold the device only by insulated
surfaces of the handle. Contact with power supply line may transfer
voltage to metal parts of the tool and cause electric shock.
c) Avoid touching rotating parts. Touching the rotating power tool
parts, equipment in particular, may cause body injury.
d) Wait until power tools comes to a complete stop before putting it
away. Working tool may jam and cause loss of control over the power
tool.
e) In case of working tool jam immediately switch off the power tool,
also be prepared for high reaction torque.
f) Do not use the mixer in environment with potentially explosive
atmosphere. Do not mix solvents or substances that contain
solvents with ignition temperature below 210°C.
g) Do not wind the power cord around any part of the mixer body.
h) Switch the mixer on and off only when the mixer paddle is
immersed in a container.
i) Ensure the container for mixing is properly fixed.
j) Do not put your hands or any other objects into the container when
mixing.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, precaution measures
and additional safety systems are used, nevertheless there is
always a small risk of injuries at work

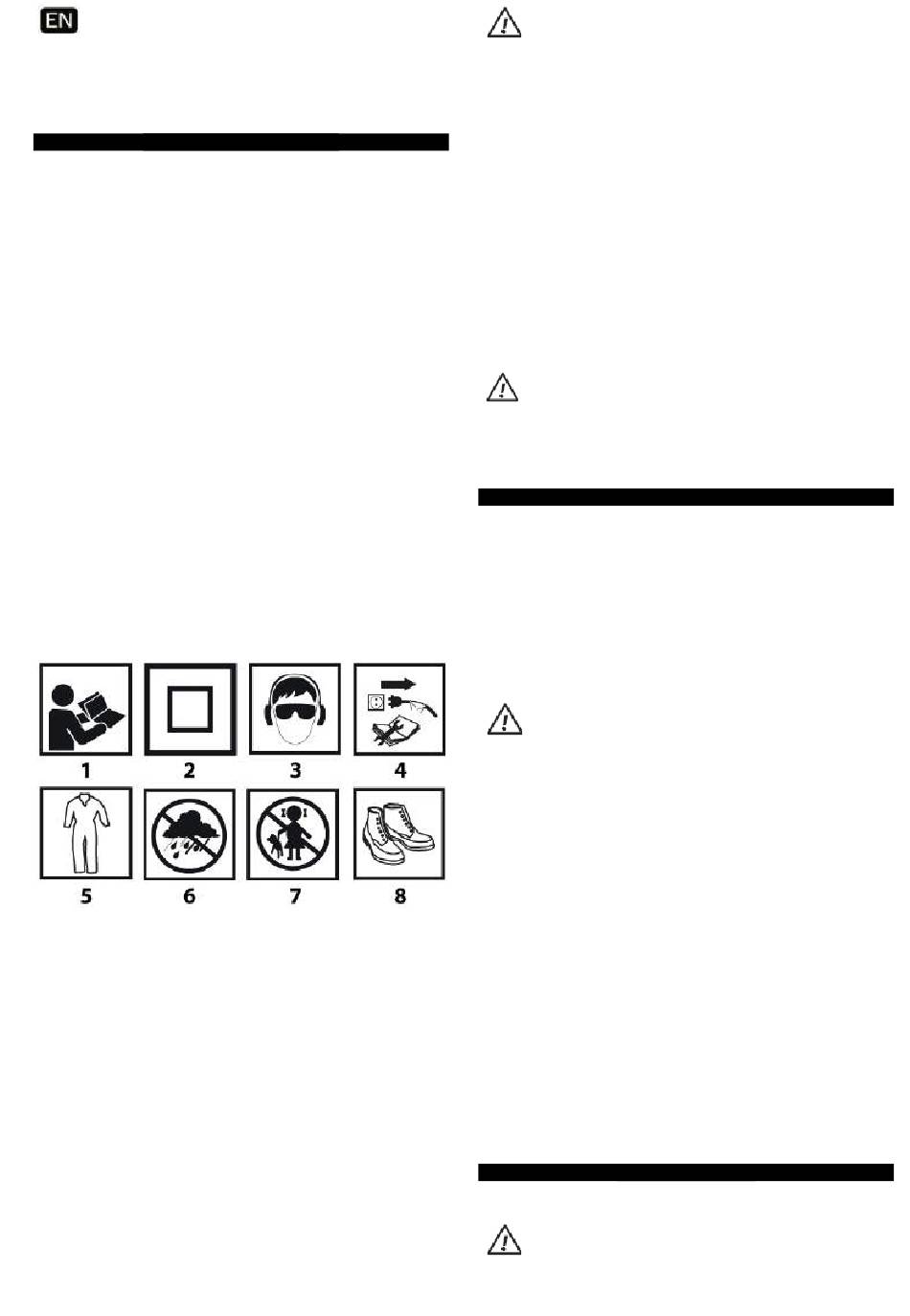

Explanation of used symbols
1. Read instruction manual, observe warnings and safety conditions
therein!
2. Protection class 2.
3. Use personal protection measures (protective goggles, earmuff
protectors, anti-dust mask).
4. Disconnect the device before repairs.
5. Use protective clothes.
6. Protect the tool from moisture.
7. Keep the tool away from children.
8. Use protective footwear
DESIGN AND INTENDED USE
Mixer is a hand-held power tool equipped with two paddles, which
rotate in opposite directions (operation with single paddle is also
possible). There are many possible applications of mixer in construction
industry and other fields. You can swap the mixer paddles sides and mix
materials with different properties, e.g. cement, gypsum, stucco, paint,
plaster, self levelling underlayment and other chemicals. Regardless of
the mixture composition and setup of paddles used, it is recommended
to mix no more than 160 litres of product at a time The mixer features
Quick Lock holders, allowing quick and tool free change of paddles.
58G789
The mixer is designed for mixing only non-flammable and
non-explosive substances. Use the mixer according to the
manufacturer's instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Switch
2. Switch lock button
3. Carbon brush cover
4. Handle
5. Gear switch
6. Fixing sleeve
7. Holders
8. Wheel for rotational speed control
9. Mixing paddles
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
WARNING
EQUIPMENT AND ACCESSORIES
1. Mixing paddle
PREPARATION FOR OPERATION
INSTALLATION OF WORK TOOLS
• Hold the fixing sleeve (6) of the holder (7) and overcome the spring
resistance to pull it to the back.
• Insert paddle shaft (9) into holder hole (7), slide it in to the stop (it
may be necessary to rotate the paddle so the protrusion in the paddle
shaft can be located in the holder groove) (fig. A).
• Release the fixing sleeve (6), it will finally fix the paddle.
• Mixing paddle is properly seated if it cannot be removed without
pulling off the fixing sleeve (6).
• Repeat above procedure to install the second mixing paddle.
The mixing paddles rotate in opposite directions. Upper R
rotates clockwise, bottom L rotates counter-clockwise.
Ensure correct operation by installing the mixing paddles correctly
in accordance with the performed operation.
When the mixers are installed in holders in accordance with the
markings R and L on the paddles with the markings on the spindle
casing are used for mixing thick solutions, such as: mortars,
concretes, glues with the filling of sand filling, gravel, expanded
clay (paddle blades in pulling configuration) (fig. B).
You can swap the paddles by sides, where R and L markings are
opposite to the markings on the spindle casing, then the tool can
be used to mix thin solutions such as: paints, gypsum plasters,
structural paints (paddle blades in pushing configuration). Use of
different paddle configuration may splash the thin solution around
and at the operator.
It is possible to use only single mixing paddle in either case.
DEINSTALLATION OF WORKING TOOLS
• Pull the fixing sleeve (6) to the back and hold.
• Remove the mixing paddle with your second hand by pulling it
forward.
Remove mixing paddles from the mixer and clean at once when the
work is finished.
OPERATION / SETTINGS
SWITCHING ON / OFF
The mains voltage must match the voltage on the rating
plate of the mixer.
