Kemper MINI-TRESOR Einbau- Und Bedienungsanleitung Seite 8

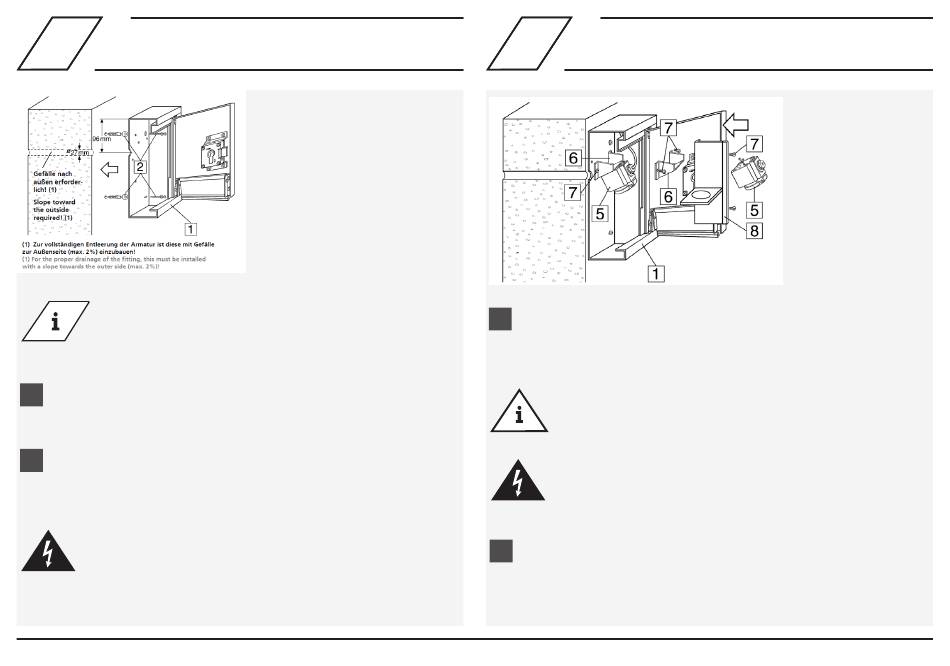

Installation of surface-mounted wall
1
cabinet
Info!
Following figures are delivered with protection type IP 55:
21202015CH I 21209015CH
Align the surface-mounted wall cabinet on the outer wall, and
1.
mark and drill the four holes (Ø 8 mm) and the hole for the frost-
free outer fitting (Ø 27 mm).
Attach the cabinet (1) to the outer wall using the four spacers and
2.
attachment screws (2).
Danger!
Earthing
Carry out connection of the earthing cable to the respec-
tive screw in the upper part of the wall-mounted box (thus
all metallic parts are earthed).
Provide the power supply
- Note FI fuse:
Nominal fault current ≤ 0.03 A,
connection current ≤ 16 A and
connection voltage 230 V
- Protection type IP 44
Installation of socket combination and
2
spray plate
Screw the 230 V socket (5) onto the mounting plate (6), connect
1.
in the surface-mounted wall cabinet (1) and attach to the cabinet
rear wall using the screws supplied (7).
Note!
Carry out a functional test!
Danger!
Electrical work must be carried out only by authorised
specialist personnel!
Screw the spray protection plate (8) vertically between the socket
2.
and the connection of the frost-proof outer fitting to the attach-
ment points provided on the rear wall, using the screws provided
(7). (The spray protection plate can also be fitted after the instal-
lation of the frost-proof outer fitting.)
8 / 12 – K410021200001-00 / 09.2021 – © www.kemper-olpe.de
