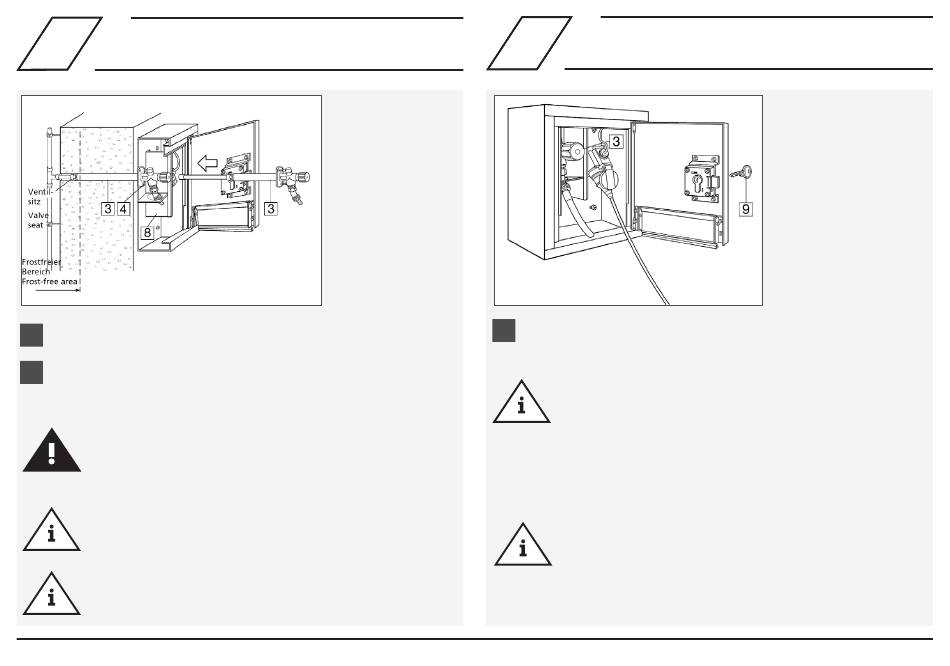

Installation of frost-proof outer fitting
3
and spray protection
Insert the frost-proof outer fitting (3) into the hole and attach
1.
using the two M6 screws (4) provided.
Connect the outer fitting (3) to the water supply
2.
(copper pipe Ø 15 mm or AG R ½")
Warning!
Installation must be carried out by qualified plumbers!
Note!
The valve seat (thread R ½") must be located in the frost-
free area.
Note!
The masonry must be at least 180 mm thick (see frost-
free area).
4
Functional testing
Conduct functional testing of the frost-proof outer fitting (3).
1.
Note!
Due to the automatic draining of the frost-proof outer
fitting (3) after removal of water, water will continue
to drain out for a few seconds after closing the fitting
(frost safety). For this reason, the fitting only needs to be
closed gently.
Note!
To ensure the correct 'frost safety' function, hoses and
other attachements must be removed before the start of
the frost period!
