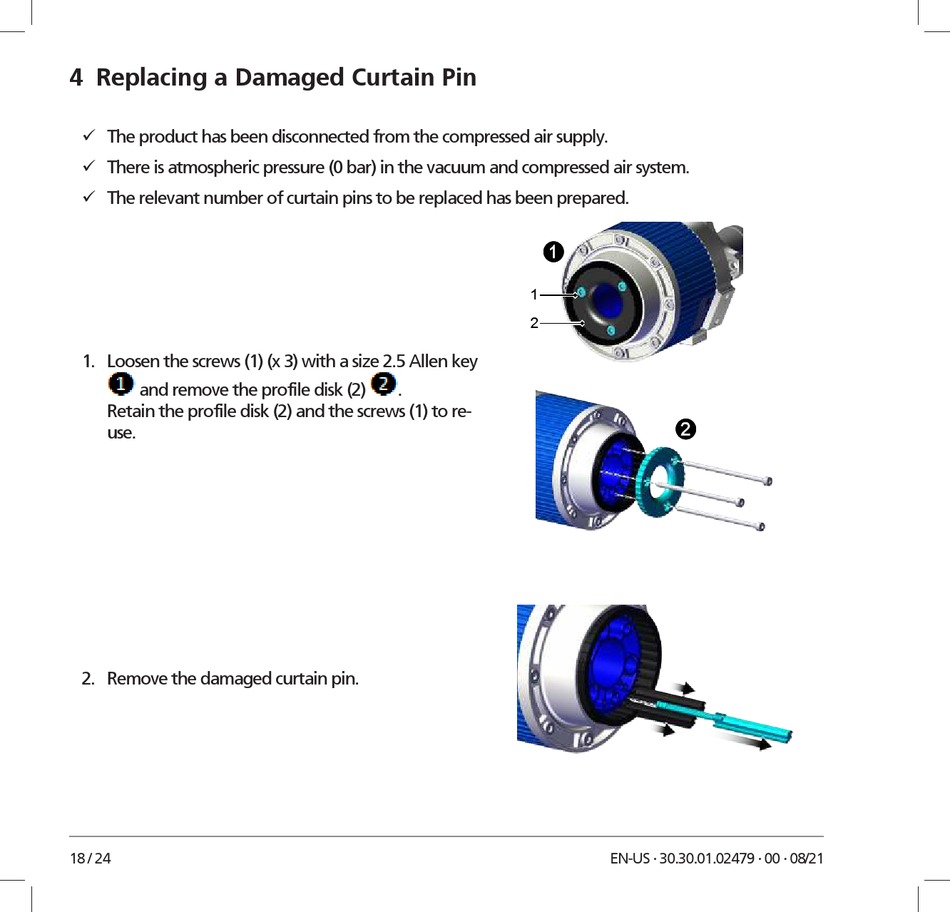

4 Replacing a Damaged Curtain Pin
ü The product has been disconnected from the compressed air supply.
ü There is atmospheric pressure (0 bar) in the vacuum and compressed air system.
ü The relevant number of curtain pins to be replaced has been prepared.
1. Loosen the screws (1) (x 3) with a size 2.5 Allen key
and remove the profile disk (2)
Retain the profile disk (2) and the screws (1) to re-
use.
2. Remove the damaged curtain pin.
18 / 24
1
1
2
.
2
EN-US · 30.30.01.02479 · 00 · 08/21
