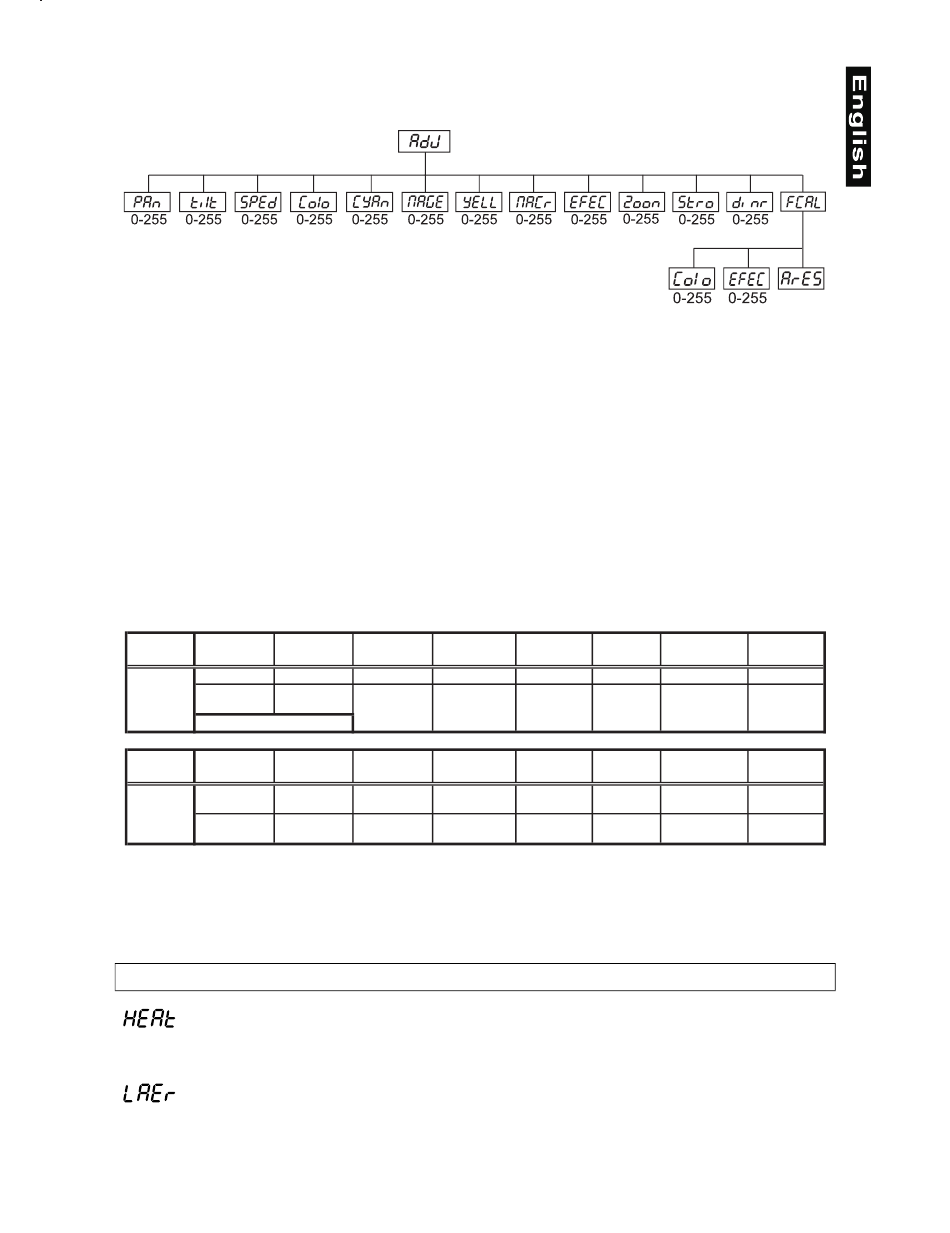

messages: "PAn, Tilt, SPEd, Colo, CYAn, MAGE, YELL, MACr EFEC, Zoom, Stro, dimr, FCAL" by which

you can adjust the fixture to the required / desired position (0-255) before the function calibration. Then when

the positioning is finished use the last "FCAL" function (Fixture calibration).

1. Calibration via the control board

Press [Enter] and the [Up] and [Down] keys in order to display the following messages: "Colo, EFEC" for

very smooth function calibration. Select one of them, press [Enter] and use the [Up] and [Down] keys in

order to adjust their right value from 0 to 255. Then press [Enter] to confirm or [Mode] to cancel and return

to the menu. This can be repeated for each calibration parameter if it is required. When the calibration is

finished, it is necessary to use the "ArES" function in order to write the calibration values to the memory

(EEPROM) and to make a reset in order to check the newly adjusted positions of the colour, gobo and effect

wheels. When the reset of the fixture is finished, the display will show the "FCAL" message. Press [Enter] to

repeat the calibration or [Mode] to return to the "AdJ" menu.

2. Calibration via the external controller

Press [Enter] and the [Up] and [Down] keys in order to display the following messages: „Colo, EFEC" -

calibration parameters. Select one of them and press [Enter].

Now you can calibrate the colour, gobo and effect wheel by your controller. The DMX calibration protocol is

described in the table mentioned below.

DMX Calibration protocol:

DMX

Channel

COLOUR

EFFECT

CALIBRATION

Function

0 - 255

SMOOTH MICROSTEP MOVEMENT

DMX

Channel

MAGENTA

YELLOW

Function

STANDARD

PROTOCOL

After having calibrated required functions press [Enter] to confirm (or [Mode] to cancel and return to the

menu without reset by the "ArES" function) and use the "ArES" function in order to write the calibration

values to the memory (EEPROM) and to make a reset in order to check the new adjusted positions of the

colour, effect and rot. gobo wheels and gobo indexing.

This message appears if you try to switch on the lamp within 5 minutes after having switched it off (the lamp

is too hot). The message will appear on the display if the lamp doesn't ignite within 28 seconds. The MH-840

will store this information and automatically ignite the lamp when the 5 minutes period has expired.

The ignition of the lamp is seven times unsuccessful (the HEAt message appeared six times before), and the

display shows "LAEr", meaning that the lamp could be damaged or even missed, the fixture is overheating

(this can occur if the ambient temperature is 40° C or more) or there could be a failure on the ignitor or

ballast.

All manuals and user guides at all-guides.com

SPEED

COLOURS

CMY,DIMMER

MACROS

STANDARD

PROTOCOL
