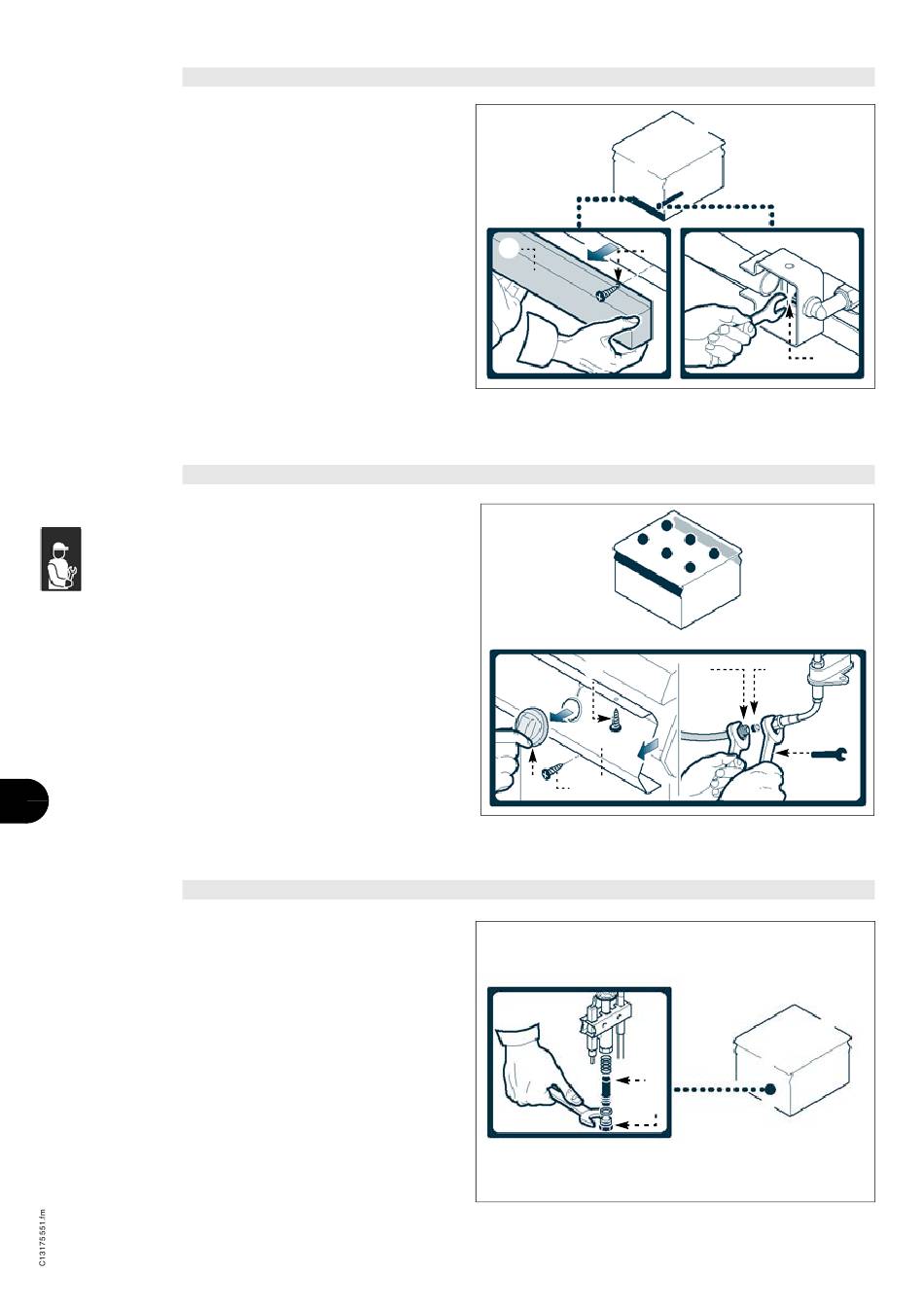

REPLACING THE OVEN BURNER NOZZLE

To carry out this operation, proceed as follows.
1 - Turn off the gas supply tap
2 - Undo the screws (B) and remove the control
panel (A).
3 - Unscrew the nozzle (C) and replace it with the
one suitable for the type of gas in use (see table
at back of manual).
4 - Replace the control panel.
REPLACING TOP BURNER PILOT LIGHT NOZZLE
To carry out this operation, proceed as follows.
1 - Turn off the gas supply tap
2 - Pull off the knob (A).
3 - Undo the screws (C) and remove the con-
trol panels (B).
4 - Remove the pipe (D).
5 - Remove the nozzle (E) and replace it with the
one suitable for the type of gas in use (see table
at back of manual).
6 - Replace the pipe (D), the control panels (B) and
IT
the control knobs (A).
GB
DE
REPLACING OVEN BURNER PILOT LIGHT NOZZLE
FR
To carry out this operation, proceed as follows.
1 - Access the pilot light through the opening provi-
ded in the bottom of the appliance.
ES
2 - Unscrew the cap (B).
3 - Remove the nozzle (C) and replace it with the
one suitable for the type of gas in use (see table
at back of manual).
4 - Replace the cap (B).
