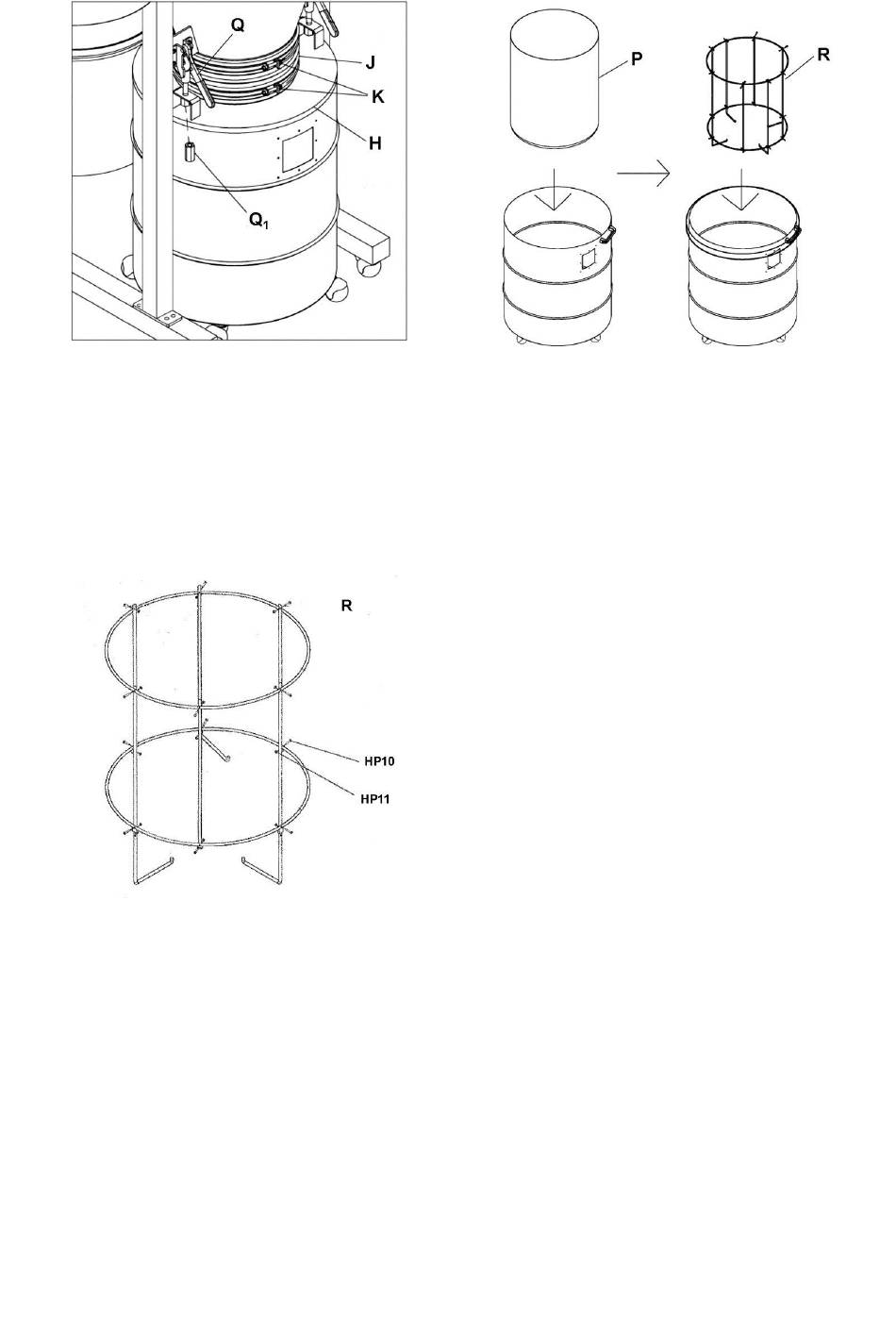

Figure 12
The bag frame maintains the shape of the bag in the
negative-pressure environment of the cyclone drum.
Assemble bag frame as follows:
18. Screw the short and long frame supports into
the hoops in alternating manner, as shown in
Figure 13. Secure with twelve pan head
screws and hex nuts (HP10,HP11). (Note: The
bends on long supports point inward as
shown.)
Figure 13
19. Place drum collection bag (P) into drum with
its top edge wrapped around top edge of
drum. Place bag frame (R) inside bag and
press all the way down. See Figure 14.
20. Pull down both quick levers (Q, Figure 12)
then assemble drum lid (H, Figure 12) to
quick levers. Tighten long nut (Q
onto each quick lever.
21. Raise drum lid using quick levers, and
position drum beneath lid. Lower quick
levers to secure lid upon drum.
, Figure 12)
1
12
Figure 14
