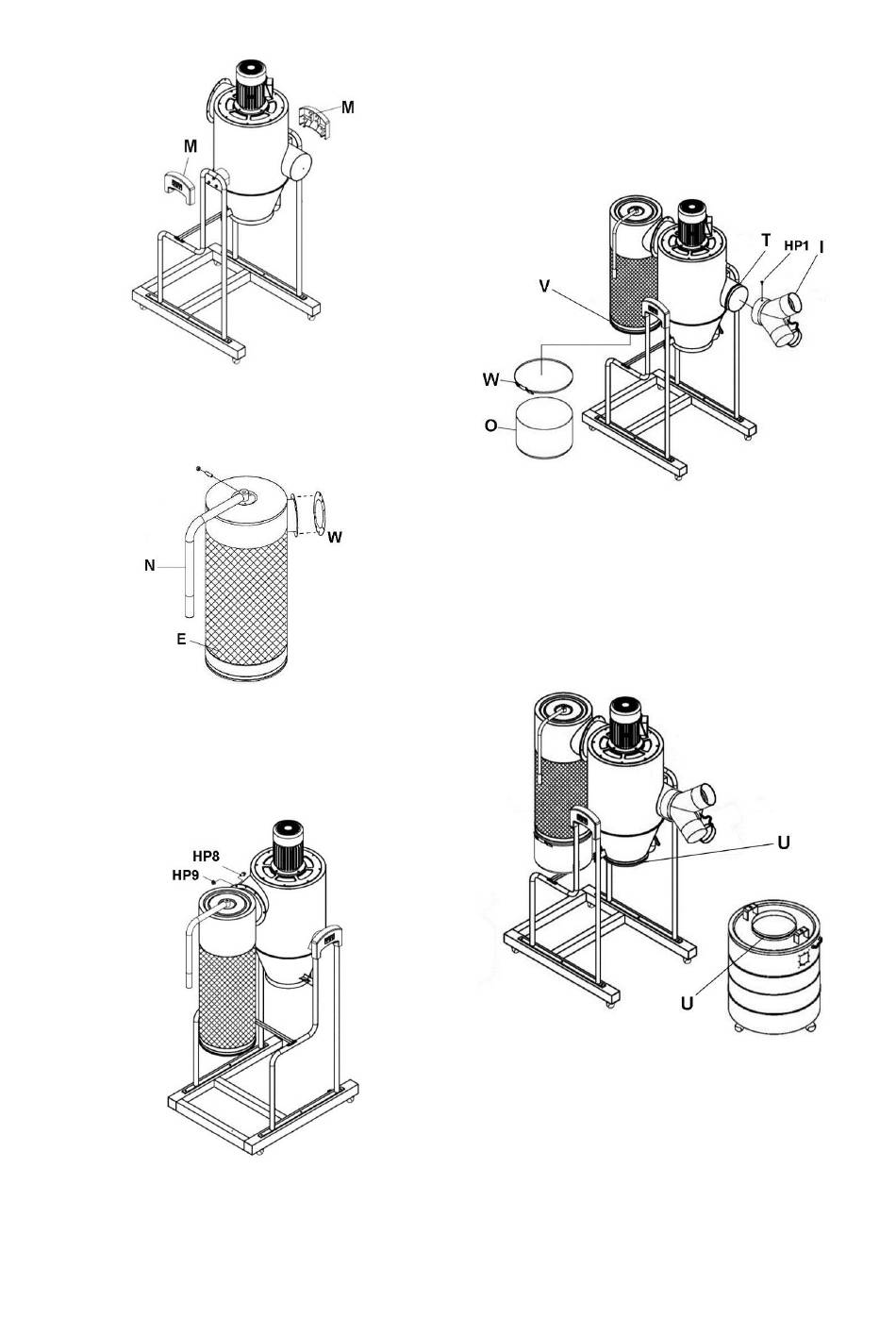

8. Install side cover (M) on left and right stands.
See Figure 7.
Figure 7
9. Assemble handle (N) to canister filter (E)
using set screw and nut. See Figure 8.
Figure 8
10. Place gasket (W) between canister filter and
main housing. Install canister filter onto main
housing, and tighten with flange head screws
(HP8) and nuts (HP9). See Figure 9.
Figure 9
11. Apply foam tape (T) around inlet port near
edge. See Figure 10. The foam tape should
completely encircle the port.
12. Install inlet adaptor (I) on main housing and
secure with pan head screw (HP1).
13. Apply foam tape (V) just above lower lip of
canister filter. The foam tape should
completely encircle the canister filter.
14. Install collection bag (O) to bottom of
canister filter and secure with steel bag
clamp (W).
15. Apply foam tape (U) around funnel just
above its bottom edge. See Figure 11. The
foam tape should completely encircle the
funnel.
16. Apply foam tape (U) around outside lip of
drum opening. The foam should completely
encircle the lip.
17. Install hose (J) onto cone and drum lid and
secure with two hose clamps (K), at top and
bottom. See Figure 12.
11
Figure 10
Figure 11
