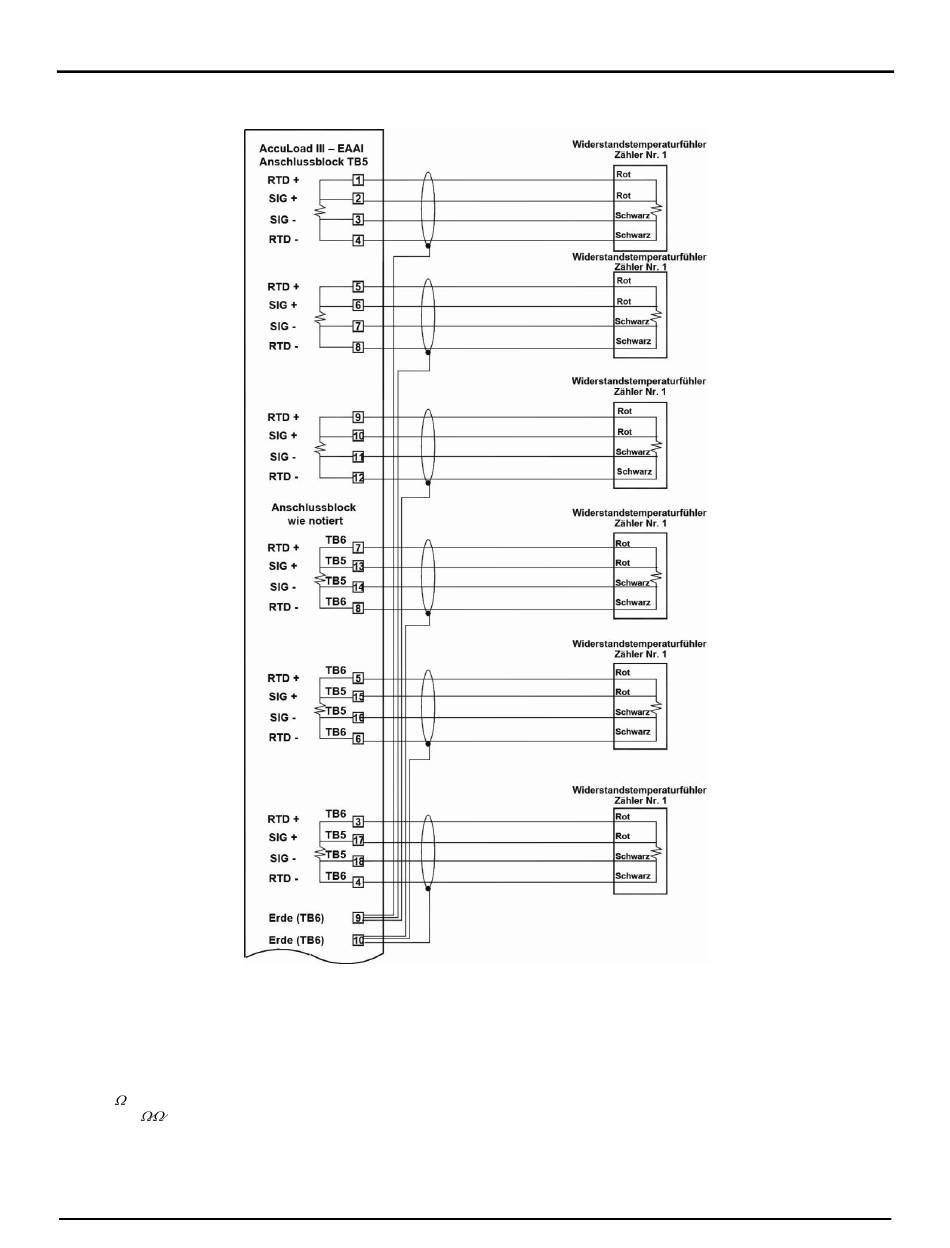

Abbildung 31. Resistance (RTD) Eingang
Note: If using two twisted pairs of wires, RTD+ and RTD– should be wired with one twisted pair. Sig+ and Sig– should be wired with another
twisted pair.
Used for temperature Eingang from a platinum RTD. This Eingang requires a four-wire connection to a platinum sensor with the following
specification:
1.
100
@ 0 Degrees Celsius.
2.
0.00385
Deg. C., DIN 43760, BS1904, or IPTS 1948 Temperature Coefficient.
44
Abschnitt IV – Diagramme
