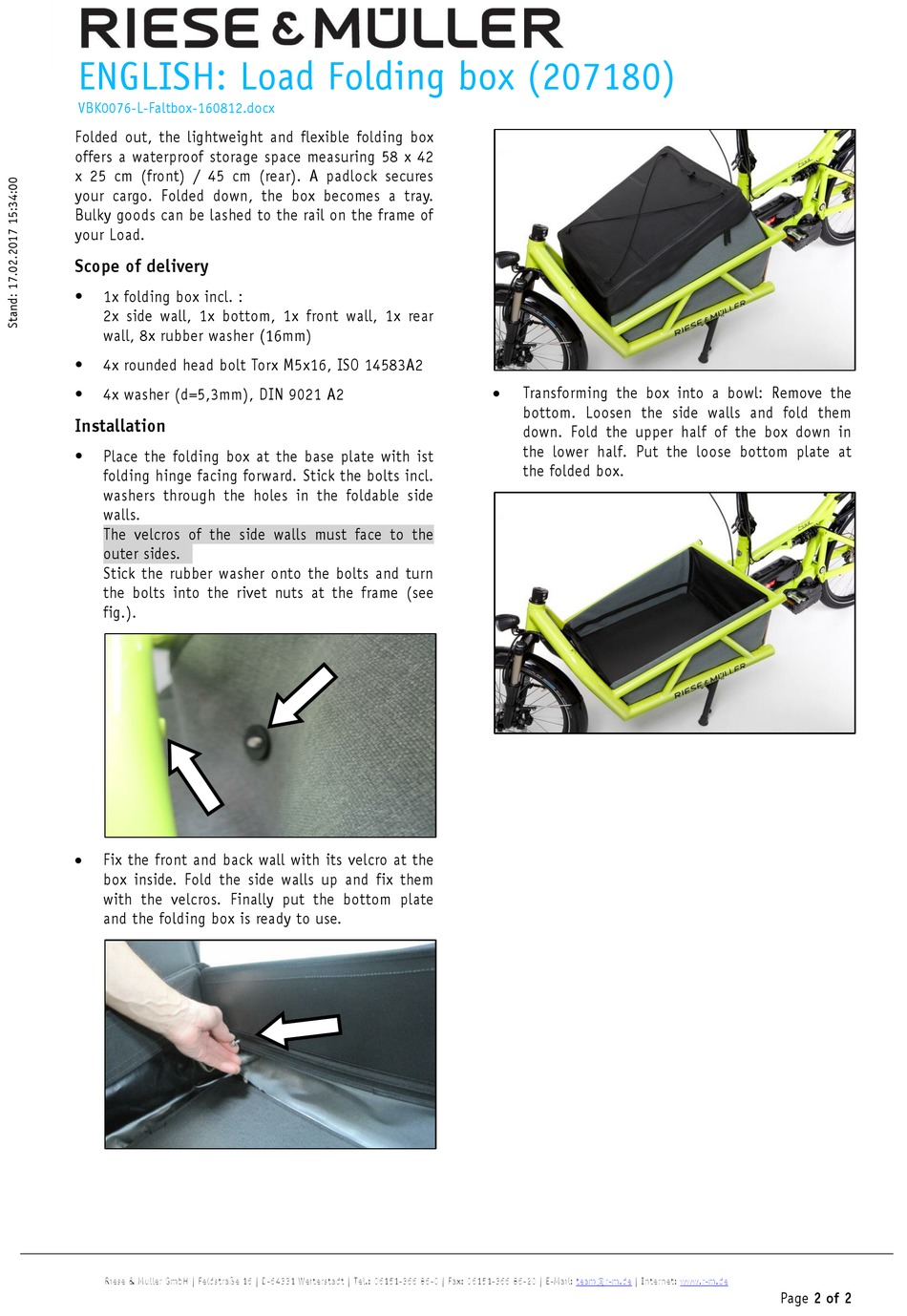

ENGLISH: Load Folding box (207180)
VBK0076-L-Faltbox-160812.docx
Folded out, the lightweight and flexible folding box
offers a waterproof storage space measuring 58 x 42
x 25 cm (front) / 45 cm (rear). A padlock secures
your cargo. Folded down, the box becomes a tray.
Bulky goods can be lashed to the rail on the frame of
your Load.
Scope of delivery
•
1x folding box incl. :
2x side wall, 1x bottom, 1x front wall, 1x rear
wall, 8x rubber washer
•
4x rounded head bolt Torx M5x16, ISO 14583A2
•
4x washer (d=5,3mm), DIN 9021 A2
Installation
•
Place the folding box at the base plate with ist
folding hinge facing forward. Stick the bolts incl.
washers through the holes in the foldable side
walls.
The velcros of the side walls must face to the
outer sides.
Stick the rubber washer onto the bolts and turn
the bolts into the rivet nuts at the frame (see
fig.).
Fix the front and back wall with its velcro at the
box inside. Fold the side walls up and fix them
with the velcros. Finally put the bottom plate
and the folding box is ready to use.
Riese & Müller GmbH | Feldstraße 16 | D-64331 Weiterstadt | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail:
mm)
Transforming the box into a bowl: Remove the
bottom. Loosen the side walls and fold them
down. Fold the upper half of the box down in
the lower half. Put the loose bottom plate at
the folded box.
team@r-m.de
| Internet:
www.r-m.de
Page 2 of 2
