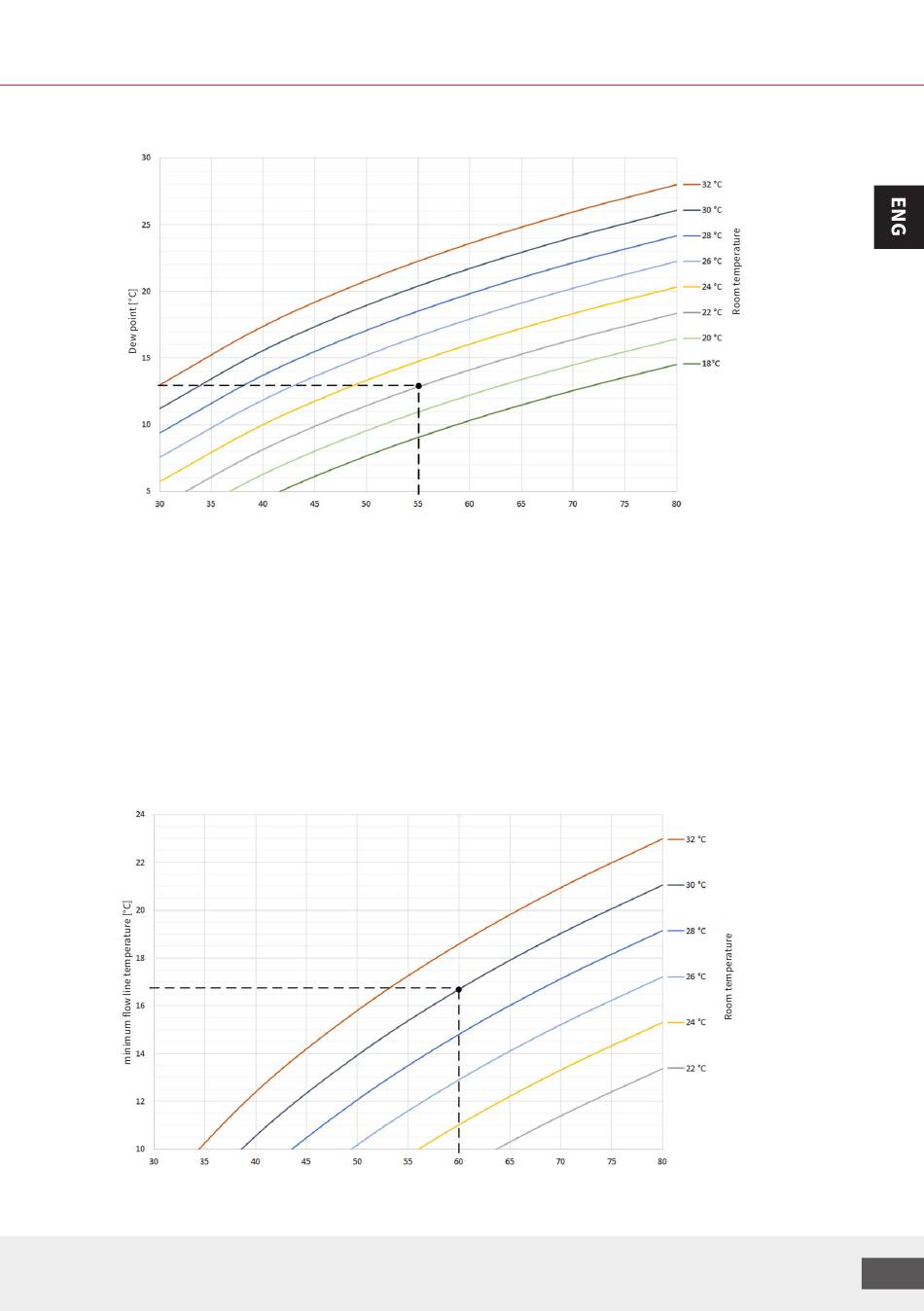

Dew point determination:
Relative humidity [%]
Example: Room temperature = 22°C, relative humidity = 55%, results in a dew point temperature = 13°C
At temperatures below the dew point, condensation occurs on the cold surfaces. The process of
condensation is a continuous process because insulation is not diffusion-tight (but has diffusion-
damping properties). How much water condenses depends on how much and how long the
temperature falls below the dew point.
Permanent use of the pump group at the level of the dew point and below is not permissible.
The MeiFow Top S -X is optimally suited for heating and cooling with heat pumps. Falling below the
dew point temperature is possible for a short time, provided the minimum flow line temperature
is observed (see diagram for determining the minimum flow line temperature) and the system is
installed correctly.
Diagram for determining the minimum flow line temperature:
Relative humidity [%]
Example: Room temperature = 30°C, relative humidity = 60%, results in a minimum flow line temperature of approx. 17°C
