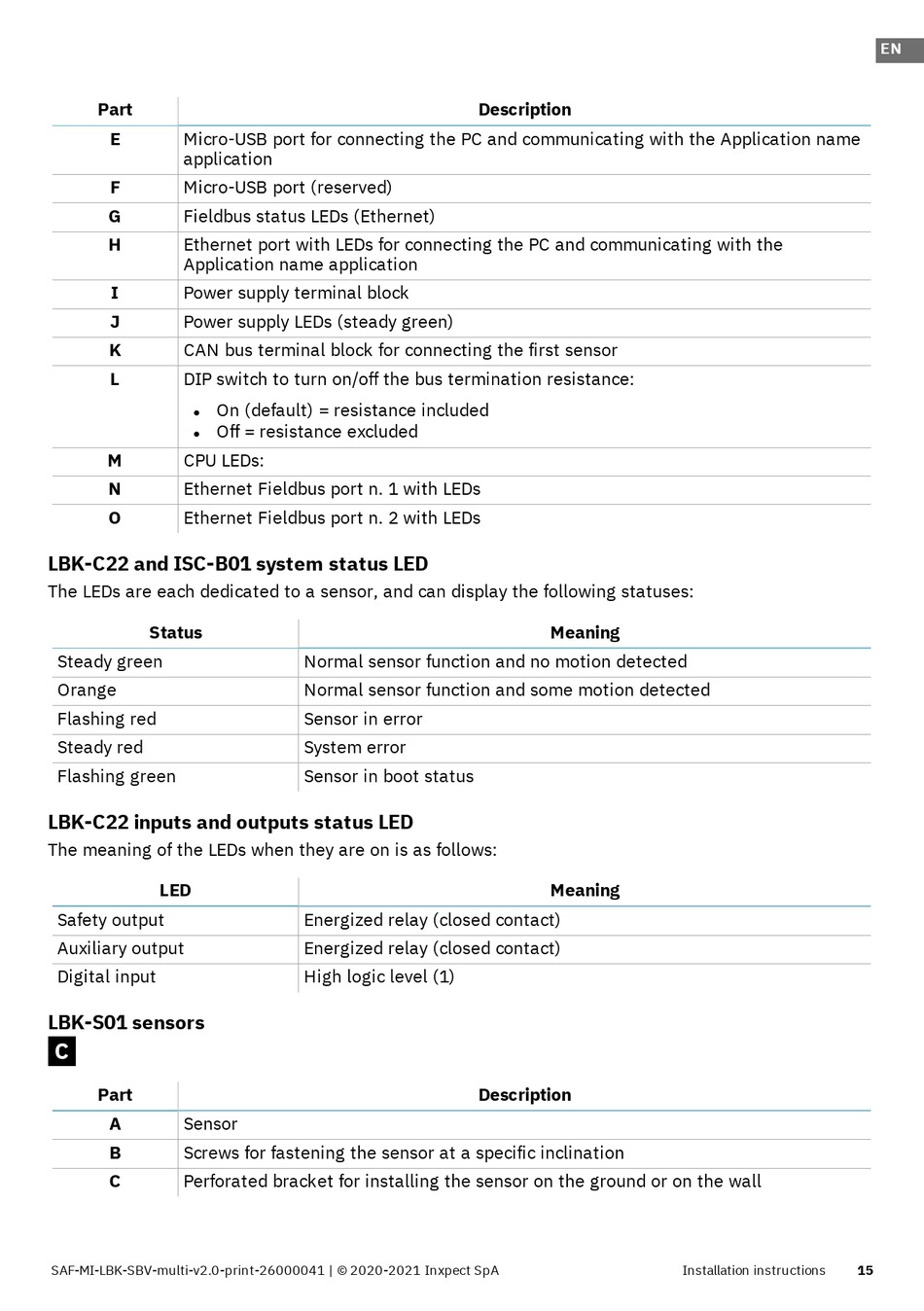

Part
E Micro-USB port for connecting the PC and communicating with the Application name
application
F Micro-USB port (reserved)
G Fieldbus status LEDs (Ethernet)
H Ethernet port with LEDs for connecting the PC and communicating with the
Application name application
I Power supply terminal block
J Power supply LEDs (steady green)
K CAN bus terminal block for connecting the first sensor
L DIP switch to turn on/off the bus termination resistance:
On (default) = resistance included
l
Off = resistance excluded
l
M CPU LEDs:
N Ethernet Fieldbus port n. 1 with LEDs
O Ethernet Fieldbus port n. 2 with LEDs
LBK-C22 and ISC-B01 system status LED
The LEDs are each dedicated to a sensor, and can display the following statuses:
Status
Steady green
Orange
Flashing red
Steady red
Flashing green
LBK-C22 inputs and outputs status LED
The meaning of the LEDs when they are on is as follows:
LED
Safety output
Auxiliary output
Digital input
LBK-S01 sensors
C
Part
A Sensor
B Screws for fastening the sensor at a specific inclination
C Perforated bracket for installing the sensor on the ground or on the wall
SAF-MI-LBK-SBV-multi-v2.0-print-26000041 | © 2020-2021 Inxpect SpA
Description
Normal sensor function and no motion detected
Normal sensor function and some motion detected
Sensor in error
System error
Sensor in boot status
Energized relay (closed contact)
Energized relay (closed contact)
High logic level (1)
Description
Meaning
Meaning
