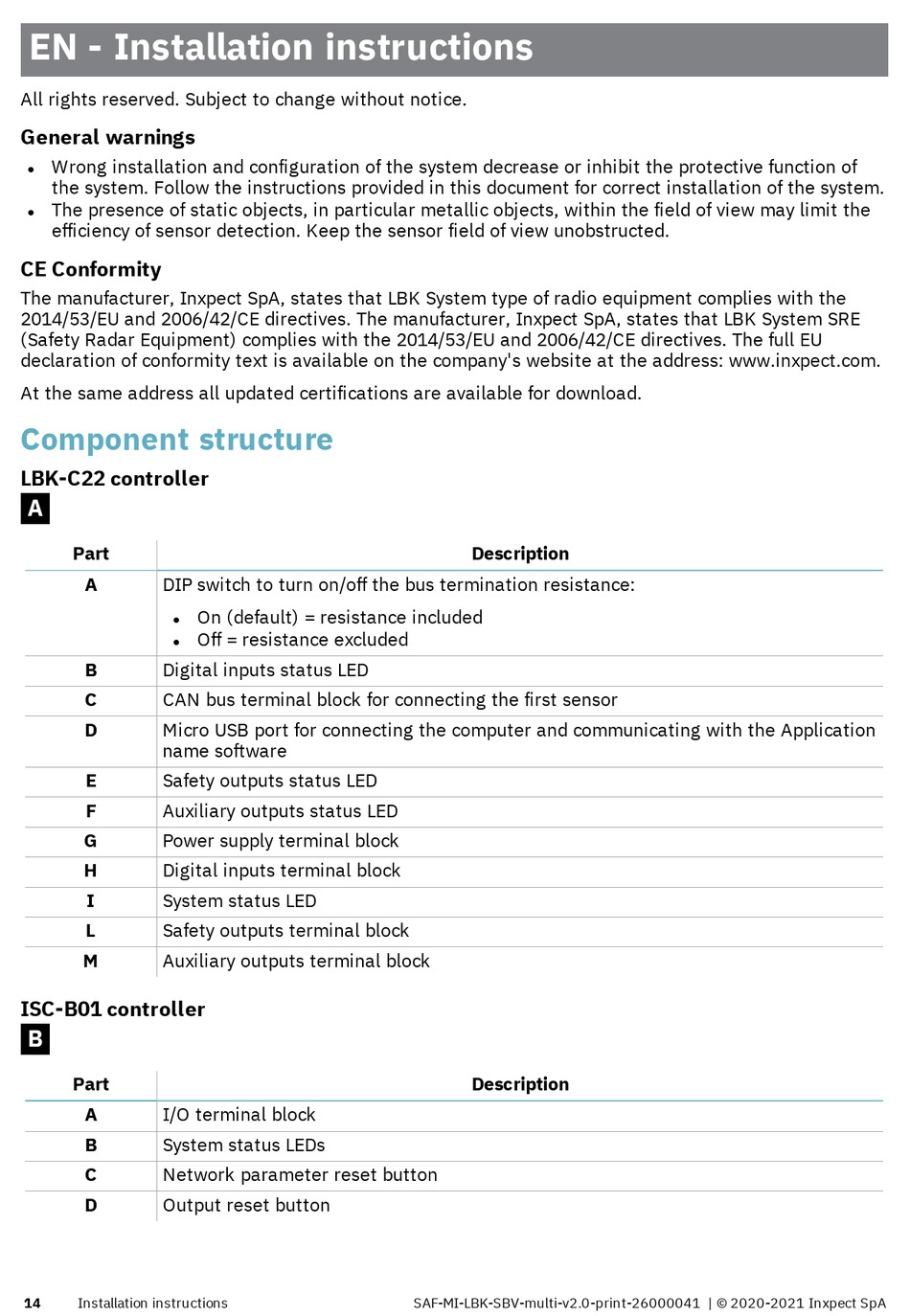

Inxpect LBK System Installationsanleitung Seite 14

EN - Installation instructions
All rights reserved. Subject to change without notice.
General warnings
Wrong installation and configuration of the system decrease or inhibit the protective function of
l
the system. Follow the instructions provided in this document for correct installation of the system.
The presence of static objects, in particular metallic objects, within the field of view may limit the
l
efficiency of sensor detection. Keep the sensor field of view unobstructed.
CE Conformity
The manufacturer, Inxpect SpA, states that LBK System type of radio equipment complies with the
2014/53/EU and 2006/42/CE directives. The manufacturer, Inxpect SpA, states that LBK System SRE
(Safety Radar Equipment) complies with the 2014/53/EU and 2006/42/CE directives. The full EU
declaration of conformity text is available on the company's website at the address: www.inxpect.com.
At the same address all updated certifications are available for download.
Component structure
LBK-C22 controller
A
Part
A DIP switch to turn on/off the bus termination resistance:
l
l
B Digital inputs status LED
C CAN bus terminal block for connecting the first sensor
D Micro USB port for connecting the computer and communicating with the Application
name software
E Safety outputs status LED
F Auxiliary outputs status LED
G Power supply terminal block
H Digital inputs terminal block
I System status LED
L Safety outputs terminal block
M Auxiliary outputs terminal block
ISC-B01 controller
B
Part
A I/O terminal block
B System status LEDs
C Network parameter reset button
D Output reset button
14 Installation instructions
On (default) = resistance included
Off = resistance excluded
Description
Description
