KLASS Fan MODULO Anleitung Seite 33

VARIATION WITH LIGHT
Attention! Turn off the power line of your fan through your circuit breaker.

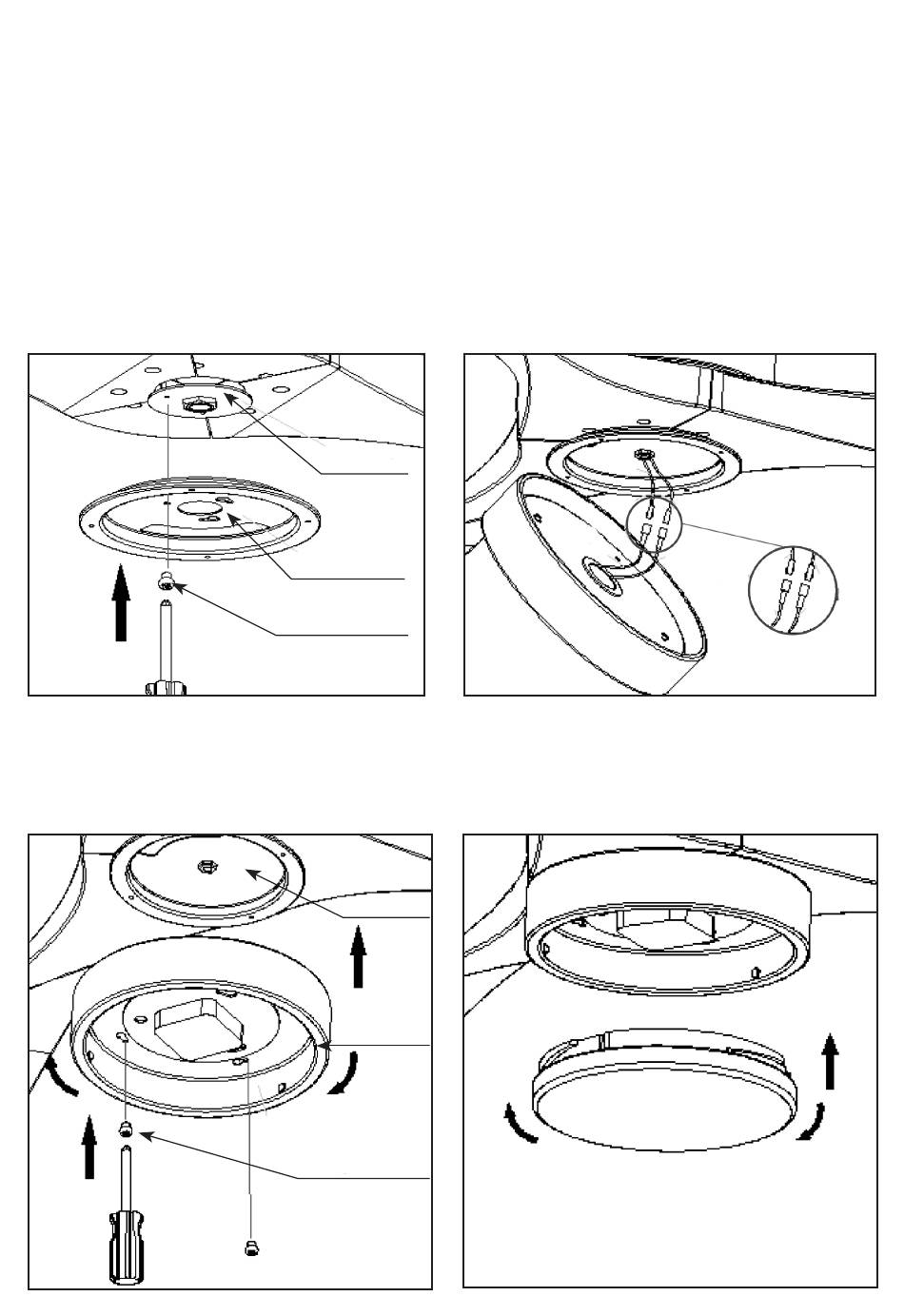

Remove one of the three screws from the rotor holder, and unscrew the other two.
Apply the fixing plate to the unscrewed screws and turn it to block it.
Bring the third screw. Screw the 3
Tighten the three screws. Take out the wires from the inside of the rotor.
Connect the fan cables with the cables of the light kit - Blue with blue, black with
black.
Fixed piece
Lamp disc
plate
BLUE
BLACK
Screws
Fix the light kit to the plate with the three screws. Be careful not to pinch the
cables.
Install your acrylic diffuser by screwing it in to the light kit
Light Fixture
Lamp disc
plate
Light
Fixture
Acrylic
cover
Screws
