IQ windowdrives
5

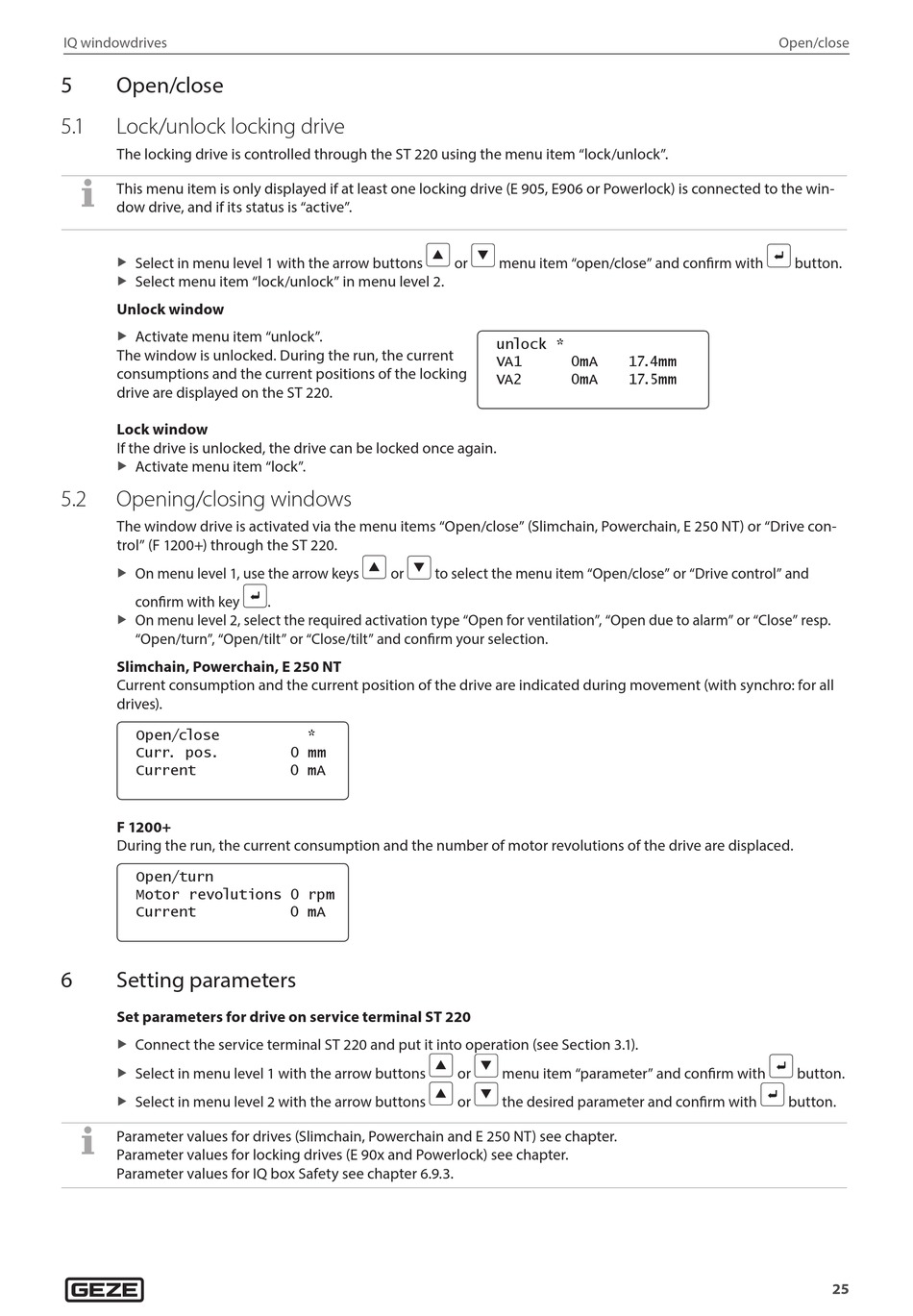

Open/close

5. 1

Lock/unlock locking drive

The locking drive is controlled through the ST 220 using the menu item "lock/unlock".
This menu item is only displayed if at least one locking drive (E 905, E906 or Powerlock) is connected to the win-
dow drive, and if its status is "active".
Select in menu level 1 with the arrow buttons
X
Select menu item "lock/unlock" in menu level 2.
X
Unlock window
Activate menu item "unlock".
X
The window is unlocked. During the run, the current
consumptions and the current positions of the locking
drive are displayed on the ST 220.
Lock window
If the drive is unlocked, the drive can be locked once again.
Activate menu item "lock".
X
5.2

Opening/closing windows

The window drive is activated via the menu items "Open/close" (Slimchain, Powerchain, E 250 NT) or "Drive con-
trol" (F 1200+) through the ST 220.
On menu level 1, use the arrow keys
X
confirm with key
On menu level 2, select the required activation type "Open for ventilation", "Open due to alarm" or "Close" resp.
X
"Open/turn", "Open/tilt" or "Close/tilt" and confirm your selection.
Slimchain, Powerchain, E 250 NT
Current consumption and the current position of the drive are indicated during movement (with synchro: for all
drives).
Open/close
Curr. pos.
Current
F 1200+
During the run, the current consumption and the number of motor revolutions of the drive are displaced.
Open/turn
Motor revolutions 0 rpm
Current
6

Setting parameters

Set parameters for drive on service terminal ST 220
Connect the service terminal ST 220 and put it into operation (see Section 3.1).
X
Select in menu level 1 with the arrow buttons
X
Select in menu level 2 with the arrow buttons
X
Parameter values for drives (Slimchain, Powerchain and E 250 NT) see chapter.
Parameter values for locking drives (E 90x and Powerlock) see chapter.
Parameter values for IQ box Safety see chapter 6.9.3.
or
to select the menu item "Open/close" or "Drive control" and
.
*
0 mm
0 mA
0 mA
or
menu item "open/close" and confirm with
unlock *
VA1
0mA
VA2
0mA
or
menu item "parameter" and confirm with
or
the desired parameter and confirm with
Open/close
button.
17 .4mm
17 .5mm
button.
button.
25
