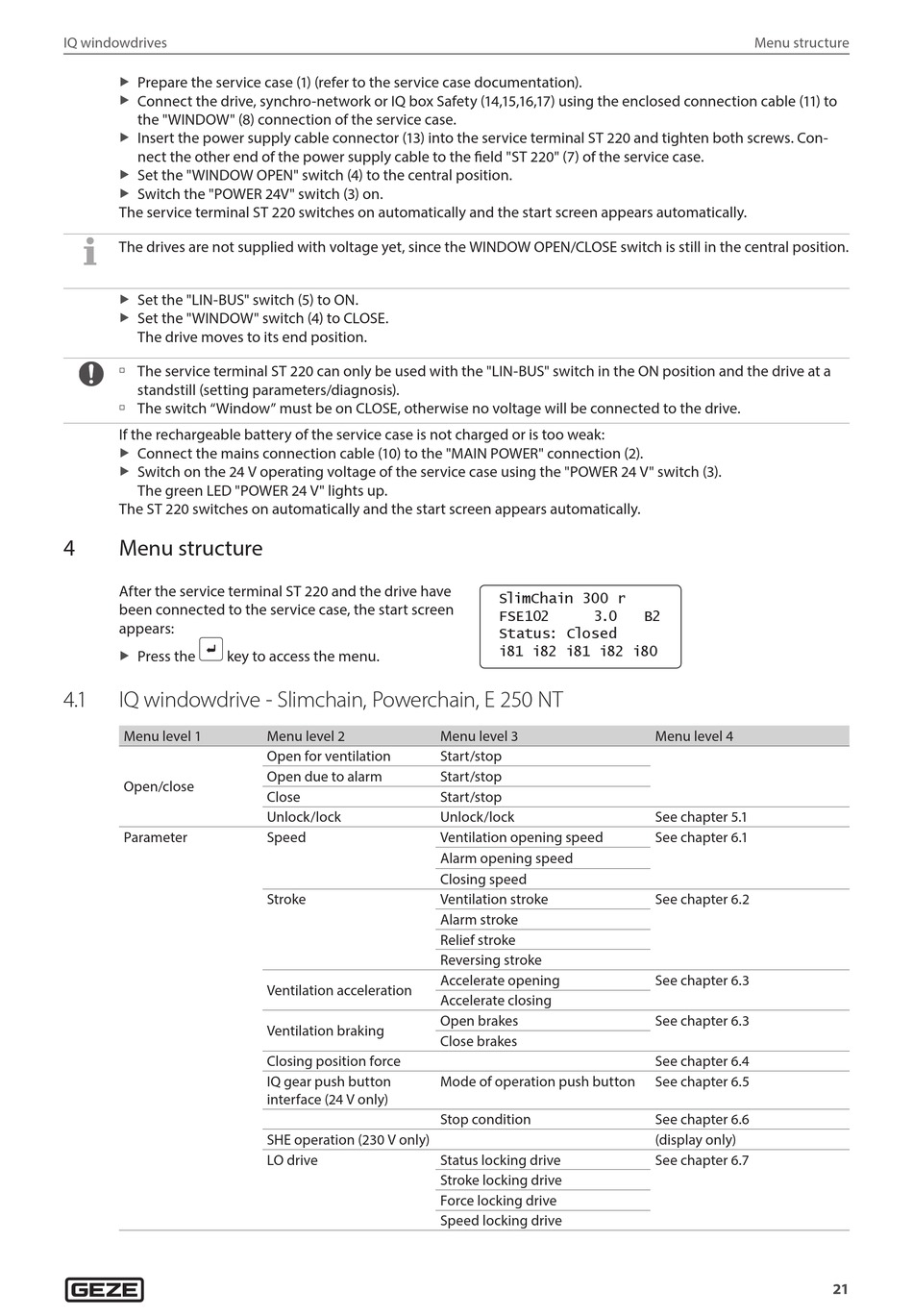

IQ windowdrives
Prepare the service case (1) (refer to the service case documentation).
X
Connect the drive, synchro-network or IQ box Safety (14,15,16,17) using the enclosed connection cable (11) to
X
the "WINDOW" (8) connection of the service case.
Insert the power supply cable connector (13) into the service terminal ST 220 and tighten both screws. Con-
X
nect the other end of the power supply cable to the field "ST 220" (7) of the service case.
Set the "WINDOW OPEN" switch (4) to the central position.
X
Switch the "POWER 24V" switch (3) on.
X
The service terminal ST 220 switches on automatically and the start screen appears automatically.
The drives are not supplied with voltage yet, since the WINDOW OPEN/CLOSE switch is still in the central position.
Set the "LIN-BUS" switch (5) to ON.
X
Set the "WINDOW" switch (4) to CLOSE.
X
The drive moves to its end position.
à The service terminal ST 220 can only be used with the "LIN-BUS" switch in the ON position and the drive at a
standstill (setting parameters/diagnosis).
à The switch "Window" must be on CLOSE, otherwise no voltage will be connected to the drive.
If the rechargeable battery of the service case is not charged or is too weak:
Connect the mains connection cable (10) to the "MAIN POWER" connection (2).
X
Switch on the 24 V operating voltage of the service case using the "POWER 24 V" switch (3).
X
The green LED "POWER 24 V" lights up.
The ST 220 switches on automatically and the start screen appears automatically.
4

Menu structure

After the service terminal ST 220 and the drive have
been connected to the service case, the start screen
appears:
Press the key to access the menu.
X
4. 1

IQ windowdrive - Slimchain, Powerchain, E 250 NT

Menu level 1
Open/close
Parameter
Menu level 2
Open for ventilation
Open due to alarm
Close
Unlock/lock
Speed
Stroke
Ventilation acceleration
Ventilation braking
Closing position force
IQ gear push button
interface (24 V only)
SHE operation (230 V only)
LO drive
SlimChain 300 r
FSE102 3.0
Status: Closed
i81 i82 i81 i82 i80
Menu level 3
Start/stop
Start/stop
Start/stop
Unlock/lock
Ventilation opening speed
Alarm opening speed
Closing speed
Ventilation stroke
Alarm stroke
Relief stroke
Reversing stroke
Accelerate opening
Accelerate closing
Open brakes
Close brakes
Mode of operation push button
Stop condition
Status locking drive
Stroke locking drive
Force locking drive
Speed locking drive
Menu structure
B2
Menu level 4
See chapter 5.1
See chapter 6.1
See chapter 6.2
See chapter 6.3
See chapter 6.3
See chapter 6.4
See chapter 6.5
See chapter 6.6
(display only)
See chapter 6.7
