IQ windowdrives
2

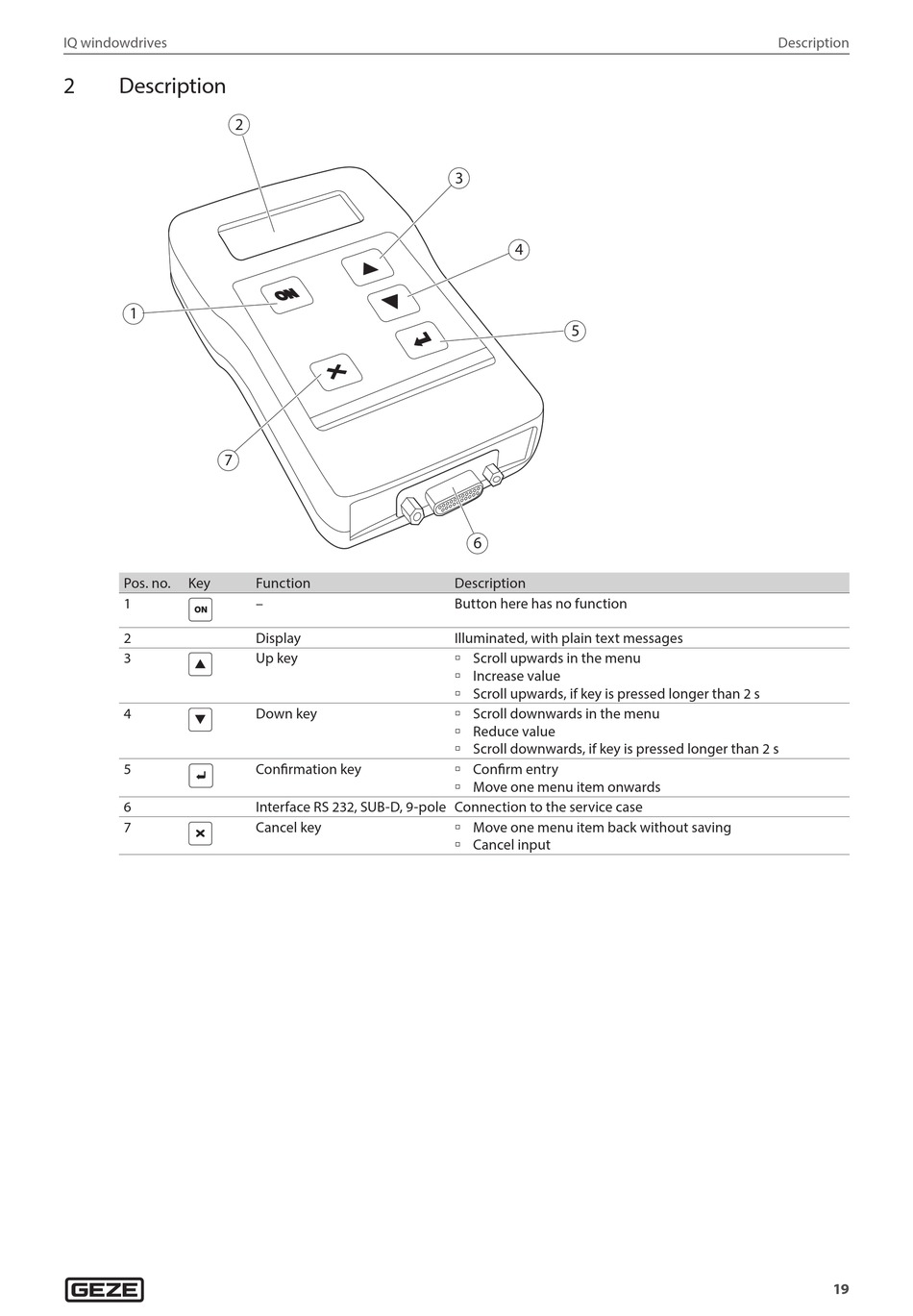

Description
2
1
7
Pos. no.
Key
1
2
3
4
5
6
7
Function
–
Display
Up key
Down key
Confirmation key
Interface RS 232, SUB-D, 9-pole Connection to the service case
Cancel key
3
4
5
6
Description
Button here has no function
Illuminated, with plain text messages
à Scroll upwards in the menu
à Increase value
à Scroll upwards, if key is pressed longer than 2 s
à Scroll downwards in the menu
à Reduce value
à Scroll downwards, if key is pressed longer than 2 s
à Confirm entry
à Move one menu item onwards
à Move one menu item back without saving
à Cancel input
Description
19
