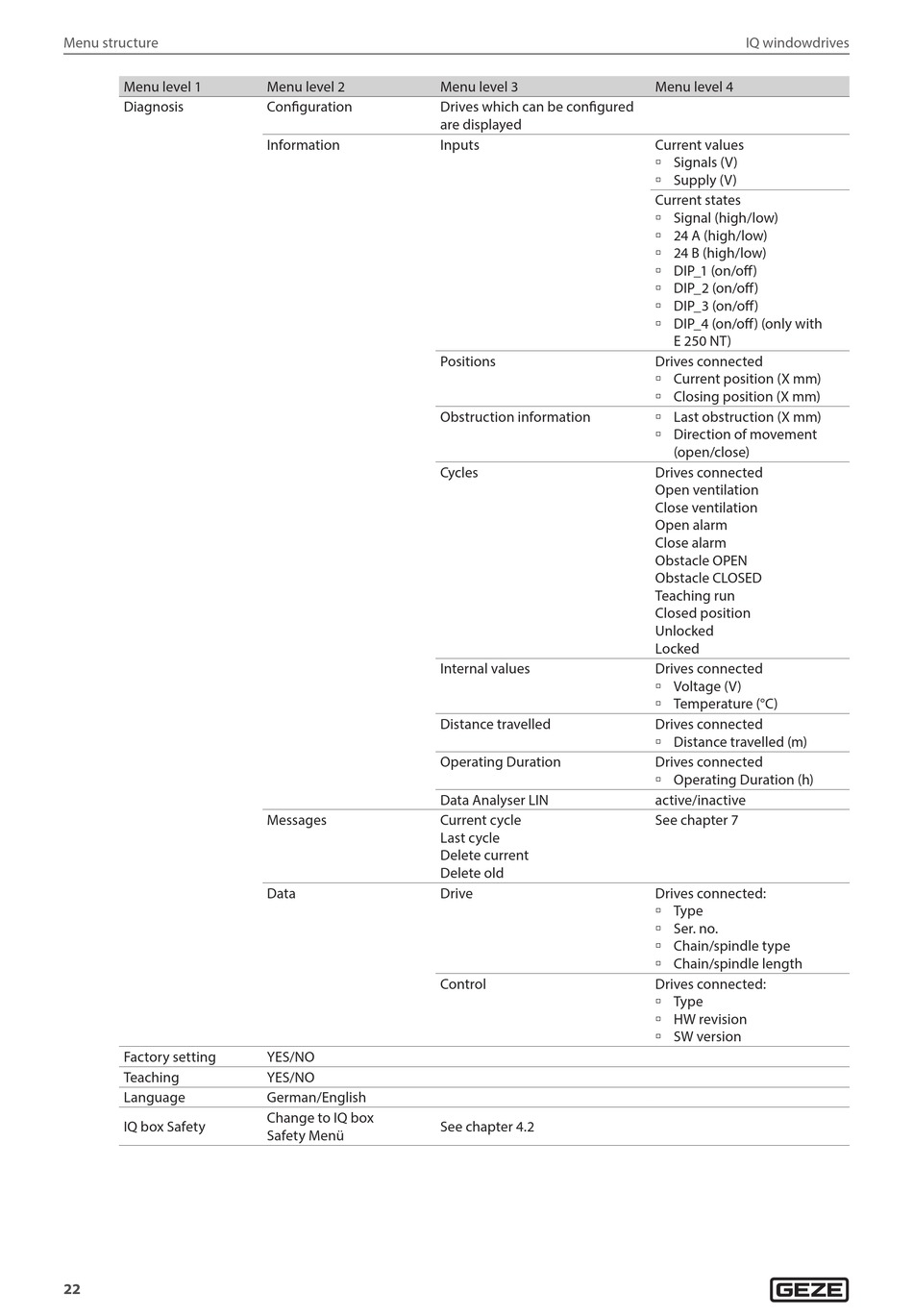

Menu structure
Menu level 1
Diagnosis
Factory setting
Teaching
Language
IQ box Safety
22
Menu level 2
Configuration
Information
Messages
Data
YES/NO
YES/NO
German/English
Change to IQ box
Safety Menü
Menu level 3
Drives which can be configured
are displayed
Inputs
Positions
Obstruction information
Cycles
Internal values
Distance travelled
Operating Duration
Data Analyser LIN
Current cycle
Last cycle
Delete current
Delete old
Drive
Control
See chapter 4.2
IQ windowdrives
Menu level 4
Current values
à Signals (V)
à Supply (V)
Current states
à Signal (high/low)
à 24 A (high/low)
à 24 B (high/low)
à DIP_1 (on/off)
à DIP_2 (on/off)
à DIP_3 (on/off)
à DIP_4 (on/off) (only with
E 250 NT)
Drives connected
à Current position (X mm)
à Closing position (X mm)
à Last obstruction (X mm)
à Direction of movement
(open/close)
Drives connected
Open ventilation
Close ventilation
Open alarm
Close alarm
Obstacle OPEN
Obstacle CLOSED
Teaching run
Closed position
Unlocked
Locked
Drives connected
à Voltage (V)
à Temperature (°C)
Drives connected
à Distance travelled (m)
Drives connected
à Operating Duration (h)
active/inactive
See chapter 7
Drives connected:
à Type
à Ser. no.
à Chain/spindle type
à Chain/spindle length
Drives connected:
à Type
à HW revision
à SW version
