Menu structure
Menu level 1
Factory Settings
Calibration
Language

IQ box Safety

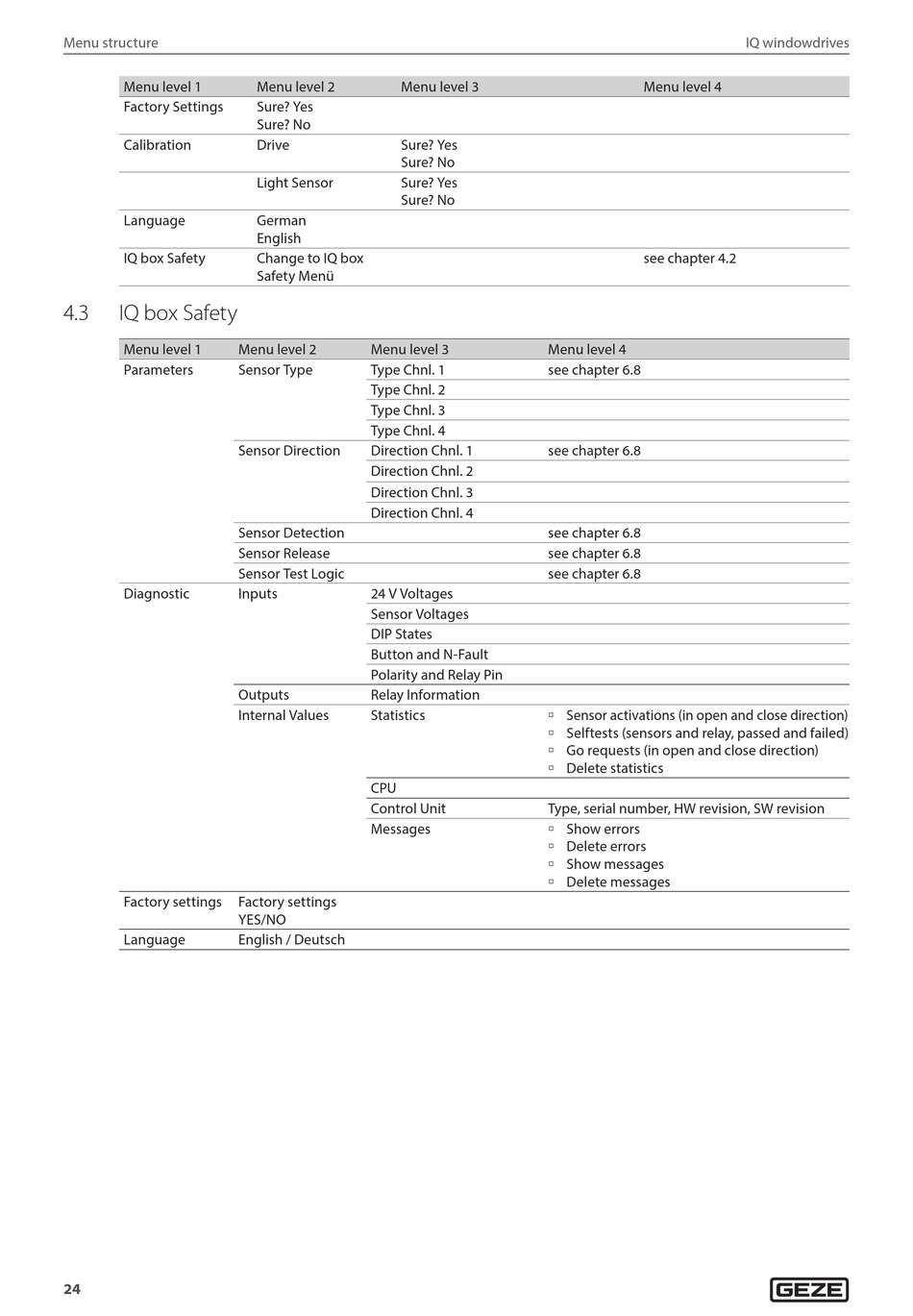

4.3 IQ box Safety
Menu level 1
Parameters
Diagnostic
Factory settings
Language
24
Menu level 2 Menu level 3
Sure? Yes
Sure? No
Drive Sure? Yes
Sure? No
Light Sensor Sure? Yes
Sure? No
German
English
Change to IQ box
Safety Menü
Menu level 2 Menu level 3
Sensor Type Type Chnl. 1
Type Chnl. 2
Type Chnl. 3
Type Chnl. 4
Sensor Direction Direction Chnl. 1
Direction Chnl. 2
Direction Chnl. 3
Direction Chnl. 4
Sensor Detection
Sensor Release
Sensor Test Logic
Inputs 24 V Voltages
Sensor Voltages
DIP States
Button and N-Fault
Polarity and Relay Pin
Outputs Relay Information
Internal Values Statistics
CPU
Control Unit
Messages
Factory settings
YES/NO
English / Deutsch
Menu level 4
see chapter 4.2
Menu level 4
see chapter 6.8
see chapter 6.8
see chapter 6.8
see chapter 6.8
see chapter 6.8
à Sensor activations (in open and close direction)
à Selftests (sensors and relay, passed and failed)
à Go requests (in open and close direction)
à Delete statistics
Type, serial number, HW revision, SW revision
à Show errors
à Delete errors
à Show messages
à Delete messages
IQ windowdrives
