Master ECLIPSE COMPACT Bedienungsanleitung Seite 9

WARNING
In this sheet there are included important information regarding way of use and
safety of installation. Respect this instructions and keep them for eventual follow-
ing consultations. The module ECLIPSE COMPACT/60.001.112 is suitable for
control of a asynchronous single-phase motor powered by voltage for the move-
ment of awnings or similar, every other use is inappropriate and prohibited.
1. TECHNICAL DATA (in reference of 20°C temperature)
- Power Supply:
- Maximum Motor Power:
- Temperature of exercise:
- Integrated Sensors:
- Wind Threshold:
- Sun Threshold:
- Radio Frequency:
- Memorizables Radio Codes:
2. NOTES ABOUT RADIO SYSTEMS
- Radio installation cannot be used where there is a high disturbing factor (for
examples: near police stations, airports, banks and hospitals). However it is
advisable that a technician could see the place before installing any kind of radio
system in order to verify the possibility of a radio installation.
- Radio devices can be used only if any possible interference or malfunction of the
transmitter or of the receiver are not a factor of risk, or if the factor of risk is can-
celled by security system.
- The presence of radio devices working at the same frequency of transmission
(for example alarms and earphones) could interfere with radio receiver of central
unit cutting down the capacity of the transmitter and restricting the full function-
ality of the system.

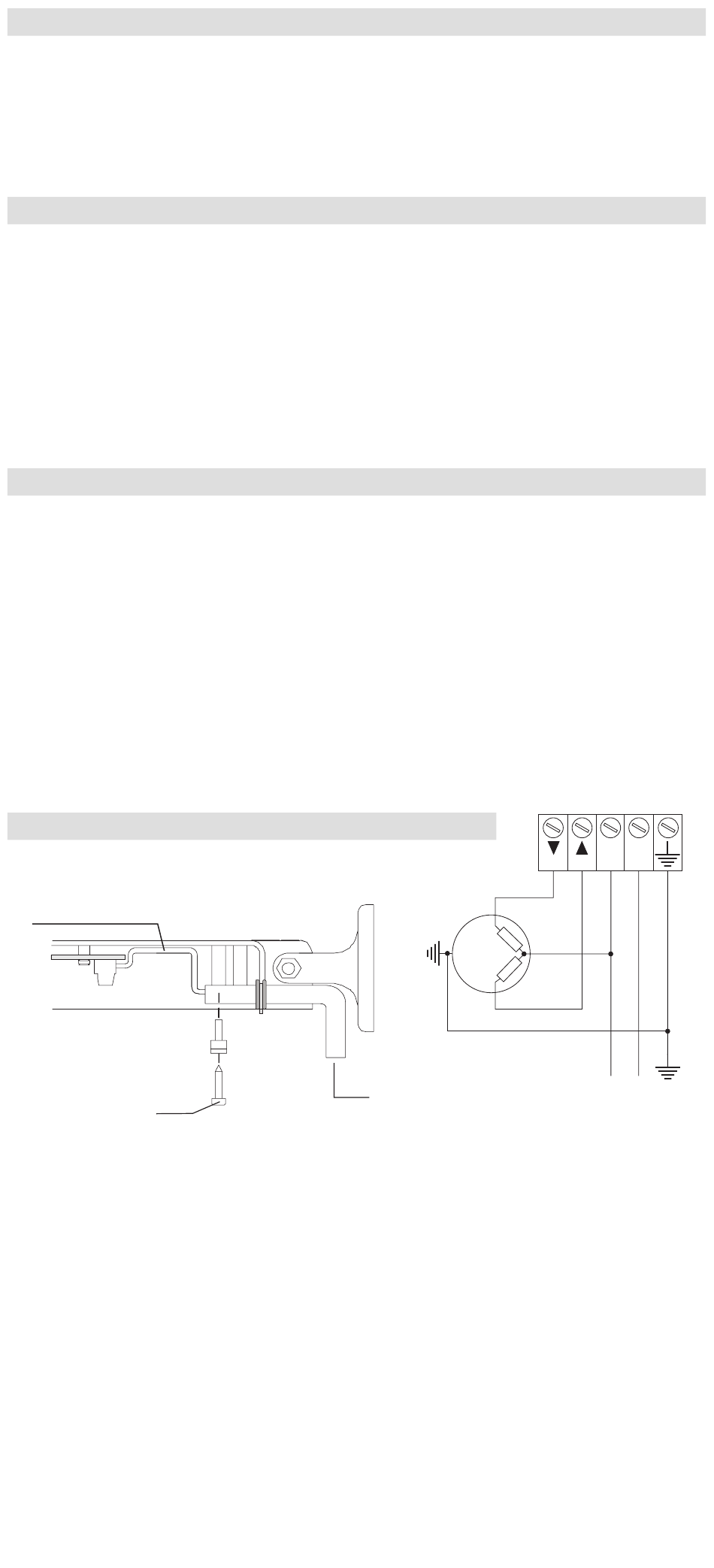

3. ELETTRIC CONNECTIONS
CABLES ON THE FUND
OF THE CONTAINER
- The product must to be installed by technical qualified staff to respect all the
rules and laws in forces on the territory.
- The module is subject by dangerous electric voltage. Make connections without
power supply.
- Work with caution on the product, use suitable tools.
- Verify that the line of supply doesn't result from circuit for lighting.
- The line of supply has to be protected from a suitable magnetothermic or differ-
ential device.
- In case of many radio installations in the same system, the distance between
them doesn't have to be less than 1,5 mt.
- Do not install the module near metallic surface.
Do not modify or replace parts without autorization of the head office.
Connect the motor with ground wire.
- Adjust the limit switch of the motor before connect it to the system.
ECLIPSE COMPACT_rev00
SCREW
120 or 230 Vac, 50/60 Hz
10 A @ 230 Vac
from –20 to +70 °C
wind, sun
from 10 Km/h to 35 Km/h
from 1 Klux to 45 Klux
433,92 MHz
15
CABLE
D1 S1
C
M
POWER SUPPLY
120 - 230 Vac
N L
50/60 Hz
9
