- For your safety, is forbidden working near the roller tube when the motor is pow-
ered.
- Be sure that the central unit had been installed in good expose for wind and sun
and without obstacles for movement of blades rotation of the wind sensor.
To verify the correct connection between motor and central unit, take on the
awning in intermediate position and check that the wind alarm starts up the motor
in upward.
3.1 Supply
The central unit ECLIPSE COMPACT/60.001.112 can be powered by tension of
120 Vac or 230 Vac and frequency 50/60 Hz. The tension of supply can be apply
to the terminals L and N.
3.2 Connection of the motor
The common wire of the motor has to be connected to the terminal N, the wrap-
pings of the motor have to be connected with terminals D1 and S1. When all the
connections are finished, bring the awning in intermediate position and check that
the wind alarm starts up the motor in upward (if the motor moves in downward,
reverse the wires at the terminals D1 and S1). Is forbidden connecting more than
one motor directly to the central unit without use the suitable modules of expan-
sion (for example the modules of expansion X52/60.002.003, X54/60.002.004 or
equivalents).

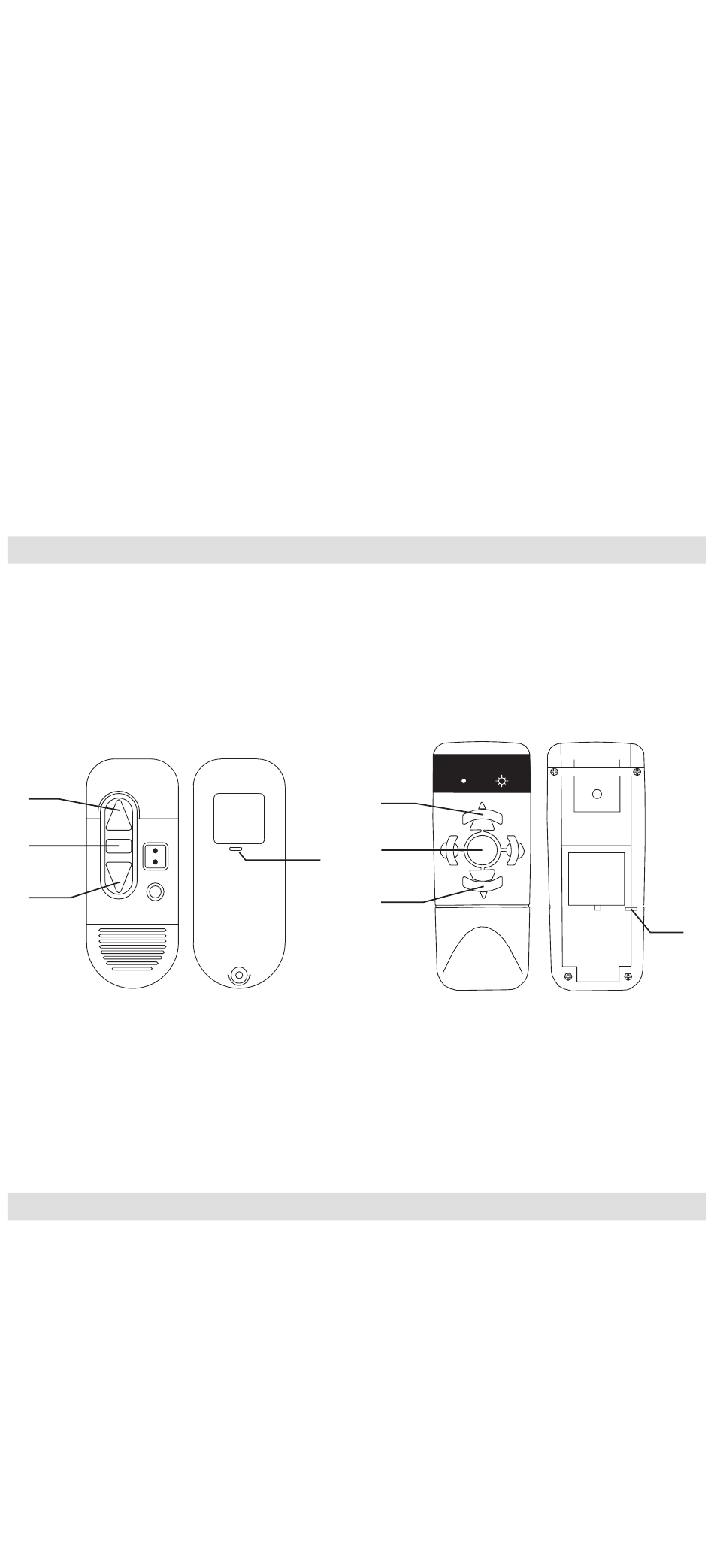

4. COMPATIBLE TRANSMITTERS

4.1 Portable transmitters
The central unit ECLIPSE COMPACT/60.001.112 is compatible with all the trans-
mitters of serie OTELLO SW/60.003.002, VECTOR/60.003.11 and equivalents
and it can hold since 15 different radio codes in its memory.
OTELLO SW
Up
Stop
Down
4.2 Radio Sensors
The central unit ECLIPSE COMPACT/60.001.112 is compatible with some radio
sensors product by this head office. The memorization of the radio sensor can be
as a usual transmitter (see point 8.1). Where provided, the operation threshold can
be programm directly on radio sensor. For more detail informations see the
instruction of radio sensor.

5. FIRST INSTALLATION

5.1 Memorization of the 1° transmitter
Keep press the button "1" on the body of the anemometer for about 4 sec since
the motor efects two upward movements to signal the entry in the menu "pro-
grammation transmitters". The yellow led switch on, than issue the button.
Within 8 sec, press STOP of the portable transmitter to insert in memory. Before
turn back to the usual activity, the central unit signals the acquisition of the code
with a upward moviment of the motor.
5.2 Memorization of other transmitters
The procedure describe at point 5.1 can be use to insert other transmitters (since
at most of 15), all the same is possible done this operation more comfortable,
using a transmitter memorized yet, as describe at point 8.1.
10
Series
60.003.002
Up
Stop
Prog
Down
Series
VECTOR
60.003.011
