6.2
Pin assignment of scanGrid2 CANopen
A
!
"
&
%
$
/
8025966/2020-12-02 | SICK
Subject to change without notice

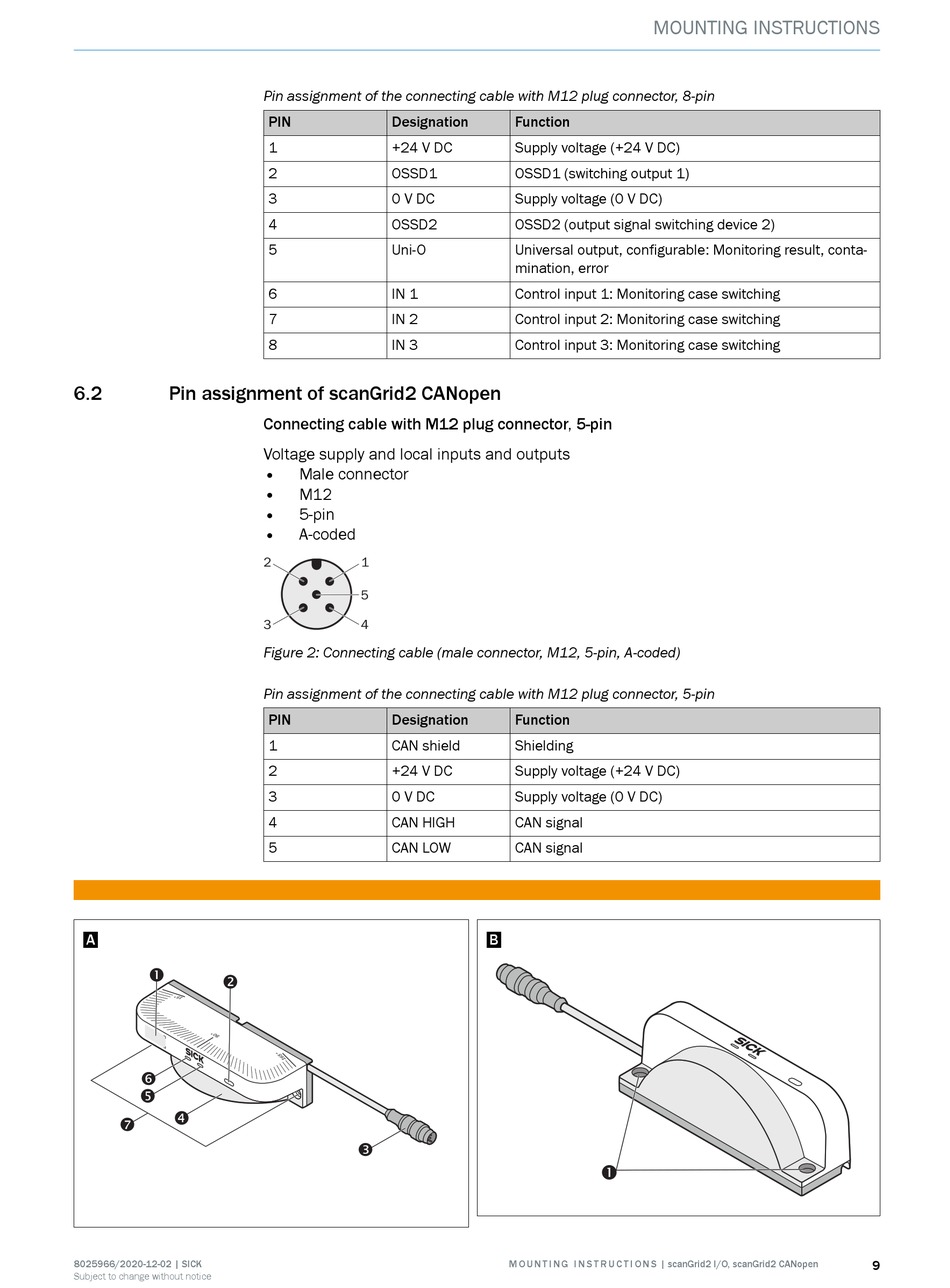

Pin assignment of the connecting cable with M12 plug connector, 8-pin
PIN
Designation
1
+24 V DC
2
OSSD1
3
0 V DC
4
OSSD2
5
Uni-O
6
IN 1
7
IN 2
8
IN 3
Connecting cable with M12 plug connector, 5-pin
Voltage supply and local inputs and outputs
•
Male connector
•
M12
•
5-pin
•
A-coded
2
1
5
3
4
Figure 2: Connecting cable (male connector, M12, 5-pin, A-coded)
Pin assignment of the connecting cable with M12 plug connector, 5-pin
PIN
Designation
1
CAN shield
2
+24 V DC
3
0 V DC
4
CAN HIGH
5
CAN LOW
§
MOUNTING INSTRUCTIONS
Function
Supply voltage (+24 V DC)
OSSD1 (switching output 1)
Supply voltage (0 V DC)
OSSD2 (output signal switching device 2)
Universal output, configurable: Monitoring result, conta‐
mination, error
Control input 1: Monitoring case switching
Control input 2: Monitoring case switching
Control input 3: Monitoring case switching
Function
Shielding
Supply voltage (+24 V DC)
Supply voltage (0 V DC)
CAN signal
CAN signal
B
!
