1

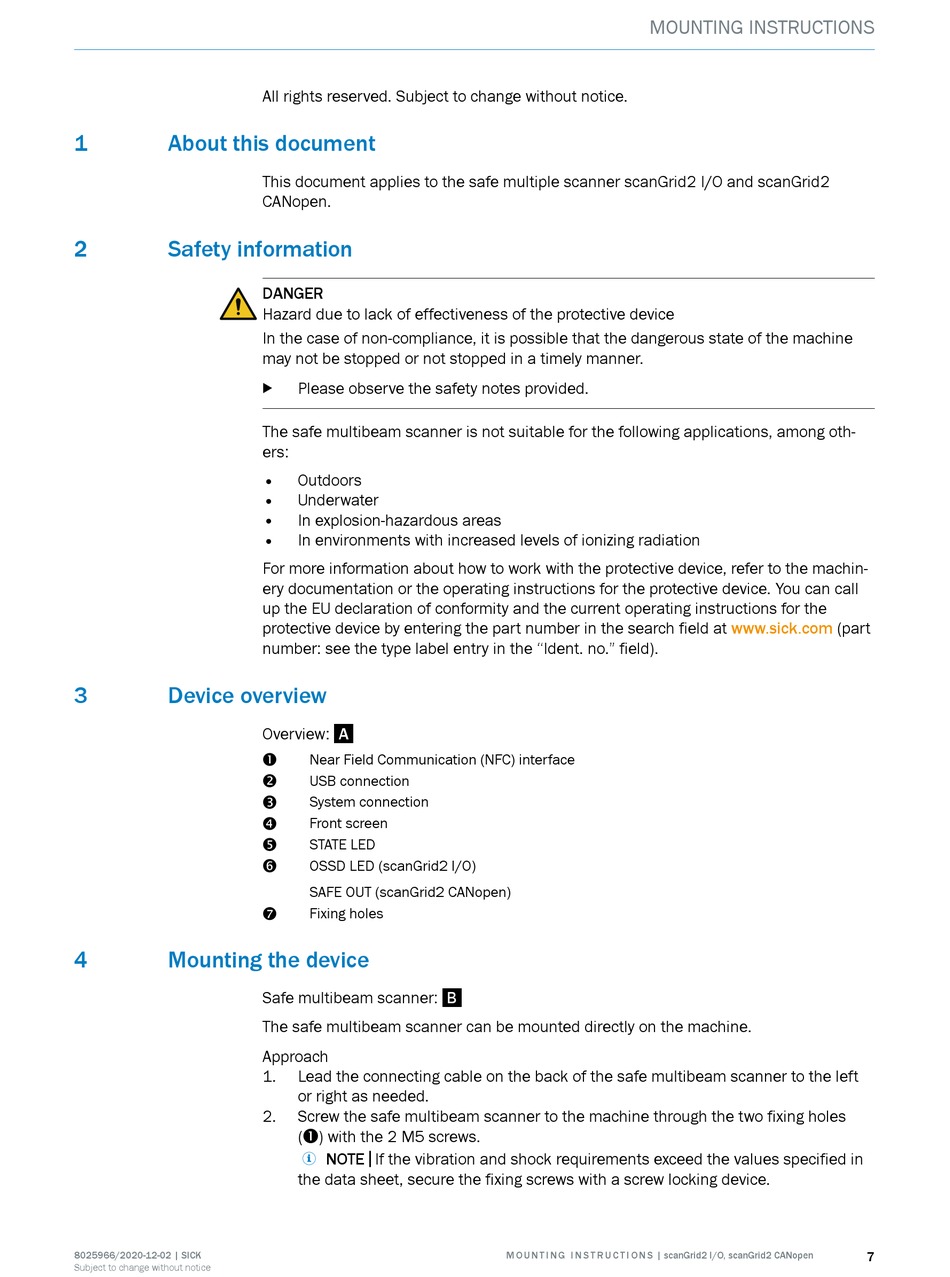

About this document
2
Safety information
3
Device overview
4
Mounting the device
8025966/2020-12-02 | SICK
Subject to change without notice
All rights reserved. Subject to change without notice.
This document applies to the safe multiple scanner scanGrid2 I/O and scanGrid2
CANopen.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Please observe the safety notes provided.
b
The safe multibeam scanner is not suitable for the following applications, among oth‐
ers:
•
Outdoors
•
Underwater
•
In explosion-hazardous areas
•
In environments with increased levels of ionizing radiation
For more information about how to work with the protective device, refer to the machin‐
ery documentation or the operating instructions for the protective device. You can call
up the EU declaration of conformity and the current operating instructions for the
protective device by entering the part number in the search field at
number: see the type label entry in the "Ident. no." field).
Overview:
A
Near Field Communication (NFC) interface
!
USB connection
"
System connection
§
Front screen
$
STATE LED
%
OSSD LED (scanGrid2 I/O)
&
SAFE OUT (scanGrid2 CANopen)
Fixing holes
/
Safe multibeam scanner:
The safe multibeam scanner can be mounted directly on the machine.
Approach
1.
Lead the connecting cable on the back of the safe multibeam scanner to the left
or right as needed.
2.
Screw the safe multibeam scanner to the machine through the two fixing holes
(!) with the 2 M5 screws.
NOTE If the vibration and shock requirements exceed the values specified in
the data sheet, secure the fixing screws with a screw locking device.
B
M O U N T I N G I N S T R U C T I O N S | scanGrid2 I/O, scanGrid2 CANopen
MOUNTING INSTRUCTIONS
www.sick.com
(part
7
