AXIS electronic module – Camera angle / web interface login
6

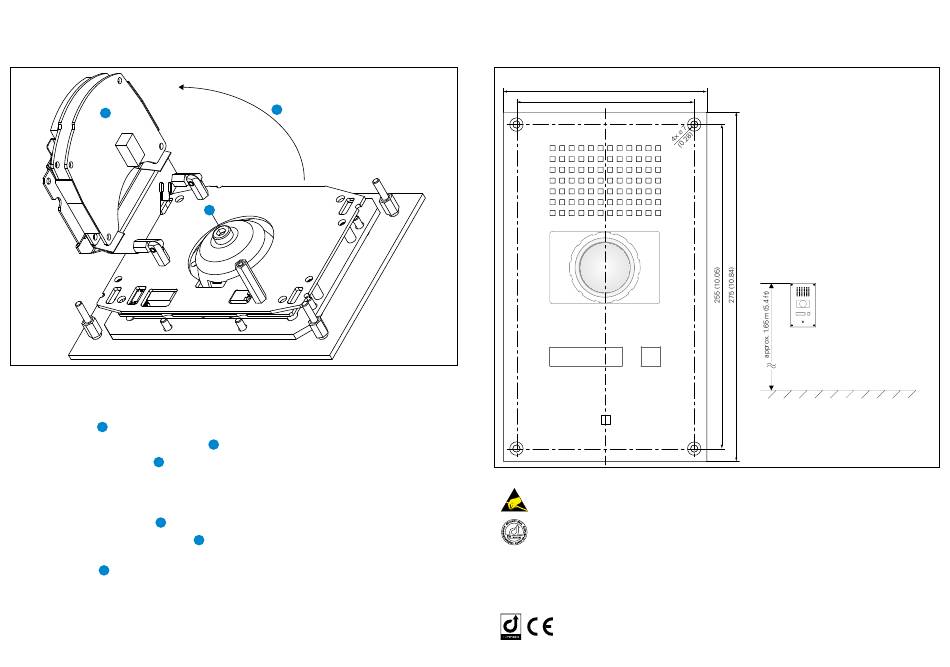

Adjusting the camera
In order to adjust the angle of the camera,
the following steps must be performed:
• Loosen screw
(Torx T8)
5
• Open up the AXIS electronic module
• Loosen the locking screw
(Torx T25)
7
on the back side of the camera
• Adjust the camera in the desired angle
(max. 25° in every direction)
• Tighten the locking screw
7
• Move the AXIS electronic module
back into its original position
• Tighten screw
5
Note: For further information on installation and settings see AXIS manual "P3904-R" .
6
7
First connection
The IP address is assigned directly via the
DHCP server.
If the network does not have a DHCP server
the default address 192.168.0.90 will be
6
used.
The web interface can be accessed via
a web browser using the URL http://<IP
address>. Additionally the URL http://<user
name>:<password>@<IP address>axis-cgi/
mjpg/video.cgi can be used to directly
access the MJPG stream.
6
Login for AXIS web interface
User name: root
Password: root
Attention: After a reset the password has to
be configured manually.
Measurements / Button Configuration
Measurements in mm (inch), not scale!
160 (6.3)
140 (5.5)
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
FA: Microphone adjusted ex works. If necessary the microphone sensitivity
should be set via CCT/ CCT 800 by an experienced technician.
An installation guide for the AXIS camera P3904-R can be found on the enclosed product
CD. For technical data and configuration see the respective datasheet.
For the current software please visit:www.software-manuals.com
Manufacturer's reference
This equipment fulfils the requirements of the EU standard EMV-RL
2004/108/EG in the current version. Therefore this equipment is CE labelled.
Please keep this description in safe custody!
Type: D-BZ-SIP-WS 201VCA, Version: 2.1/0516
Cleaning Instructions: The sta-
tion may only be cleaned with
cleaning agents for
stainless steel – in NO case
with cleaning agents contain-
ing chlorine or Isopropanol!
