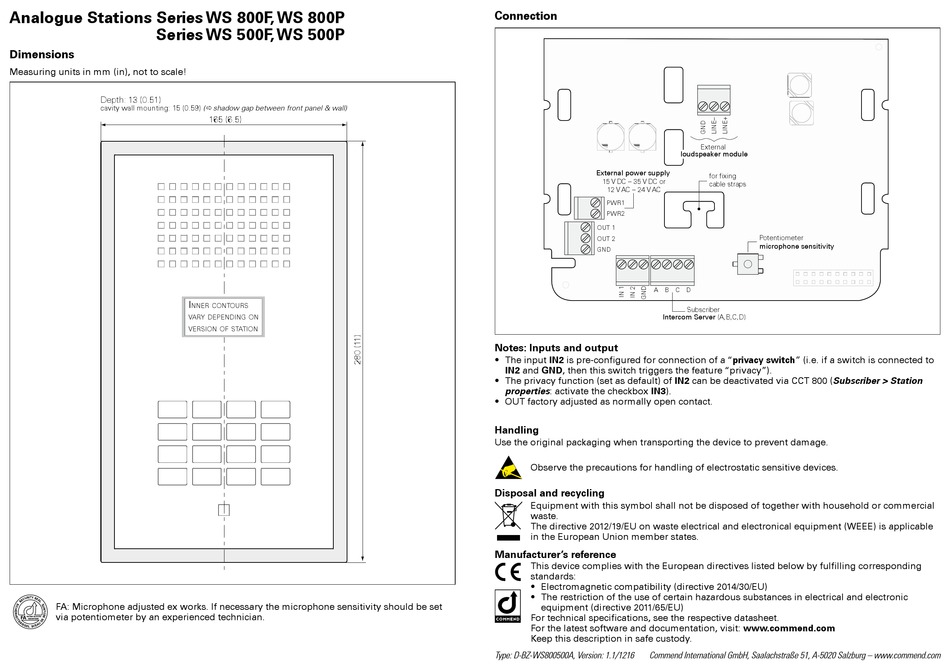

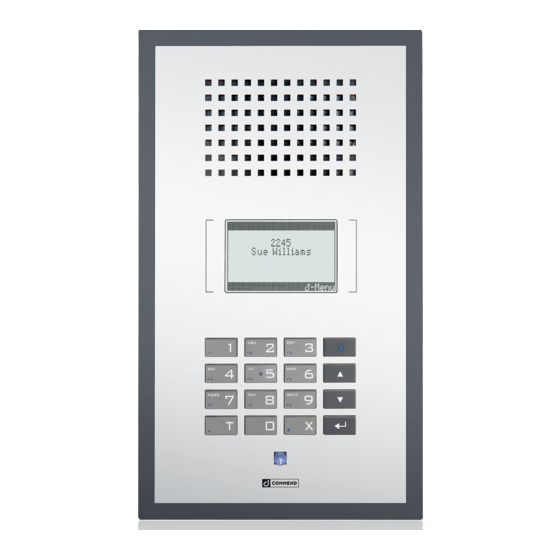

Analogue Stations Series WS 800F, WS 800P
Series WS 500F, WS 500P
Dimensions
Measuring units in mm (in), not to scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) (shadow gap between front panel & wall)
I
VARY DEPENDING ON
VERSION OF STATION
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be set
via potentiometer by an experienced technician.
165 (6.5)
NNER CONTOURS
Connection
External power supply
15 V DC – 35 V DC or
12 V AC – 24 V AC
PWR1
PWR2
OUT 1
OUT 2
GND
A B C D
Intercom Server (A,B,C,D)
Notes: Inputs and output
• The input IN2 is pre-configured for connection of a "privacy switch" (i.e. if a switch is connected to
IN2 and GND, then this switch triggers the feature "privacy").
• The privacy function (set as default) of IN2 can be deactivated via CCT 800 (Subscriber > Station
properties: activate the checkbox IN3).
• OUT factory adjusted as normally open contact.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective datasheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-WS800500A, Version: 1.1/1216 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
External
loudspeaker module
for fixing
cable straps
Potentiometer
microphone sensitivity
Subscriber
