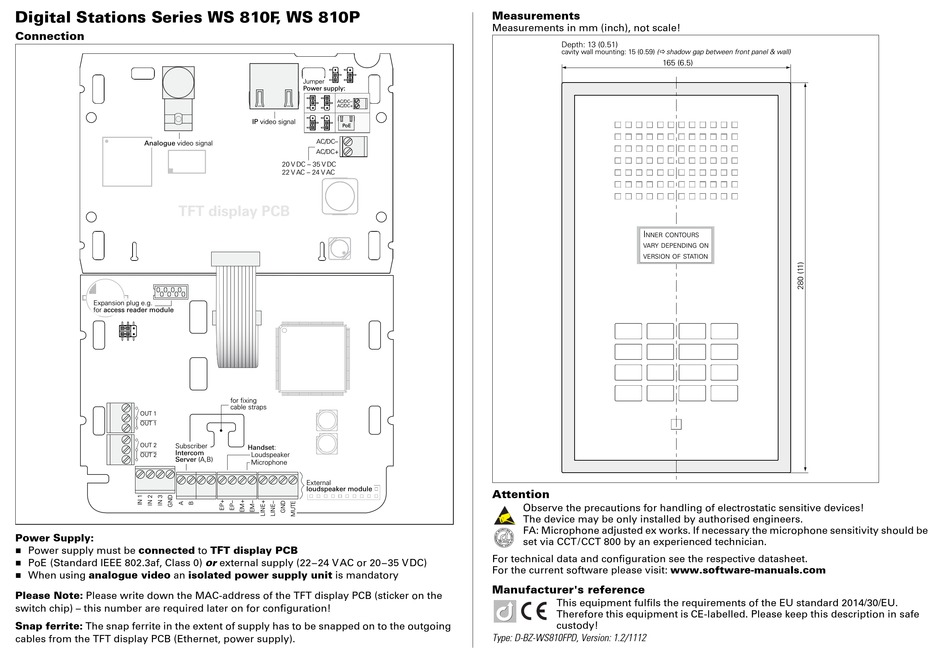

Digital Stations Series WS 810F , WS 810P
Connection
Analogue video signal
TFT display PCB
Expansion plug e.g.
for access reader module
OUT 1
OUT 1
OUT 2
Subscriber
Intercom
OUT 2
Server (A,B)
Power Supply:
Power supply must be connected to TFT display PCB
PoE (Standard IEEE 802.3af, Class 0) or external supply (22–24 VAC or 20–35 VDC)
When using analogue video an isolated power supply unit is mandatory
Please Note: Please write down the MAC-address of the TFT display PCB (sticker on the
switch chip) – this number are required later on for configuration!
Snap ferrite: The snap ferrite in the extent of supply has to be snapped on to the outgoing
cables from the TFT display PCB (Ethernet, power supply).
Jumper
Power supply:
AC/DC–
AC/DC+
IP video signal
PoE
AC/DC–
AC/DC+
20 V DC – 35 V DC
22 V AC – 24 V AC
HQT ZKPI
cable straps
Handset:
Loudspeaker
Microphone
External
loudspeaker module
Measurements
Measurements in mm (inch), not scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) (shadow gap between front panel & wall)
165 (6.5)
I
NNER CONTOURS
VARY DEPENDING ON
VERSION OF STATION
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via CCT/CCT 800 by an experienced technician.
For technical data and configuration see the respective datasheet.
For the current software please visit: www.software-manuals.com
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 2014/30/EU.
Therefore this equipment is CE-labelled. Please keep this description in safe
custody!
Type: D-BZ-WS810FPD, Version: 1.2/1112
