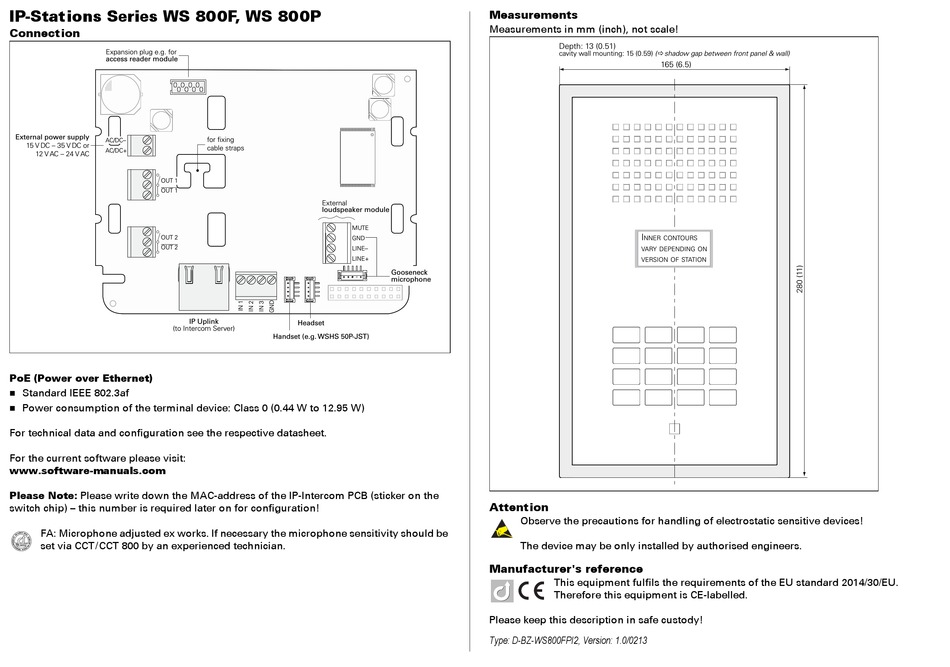

IP-Stations Series WS 800F, WS 800P
Connection
Expansion plug e.g. for
access reader module
External power supply
AC/DC–
15 V DC – 35 V DC or
AC/DC+
12 V AC – 24 V AC
OUT 1
OUT 1
OUT 2
OUT 2
(to Intercom Server)
PoE (Power over Ethernet)
Standard IEEE 802.3af
Power consumption of the terminal device: Class 0 (0.44 W to 12.95 W)
For technical data and configuration see the respective datasheet.
For the current software please visit:
www.software-manuals.com
Please Note: Please write down the MAC-address of the IP-Intercom PCB (sticker on the
switch chip) – this number is required later on for configuration!
FA: Microphone adjusted ex works. If necessary the microphone sensitivity should be
set via CCT/CCT 800 by an experienced technician.
HQT ZKPI
cable straps
External
loudspeaker module
MUTE
GND
LINE–
LINE+
IP Uplink
Headset
Handset (e.g. WSHS 50P-JST)
Measurements
Measurements in mm (inch), not scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) (shadow gap between front panel & wall)
Gooseneck
microphone
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 2014/30/EU.
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-WS800FPI2, Version: 1.0/0213
165 (6.5)
I
NNER CONTOURS
VARY DEPENDING ON
VERSION OF STATION
