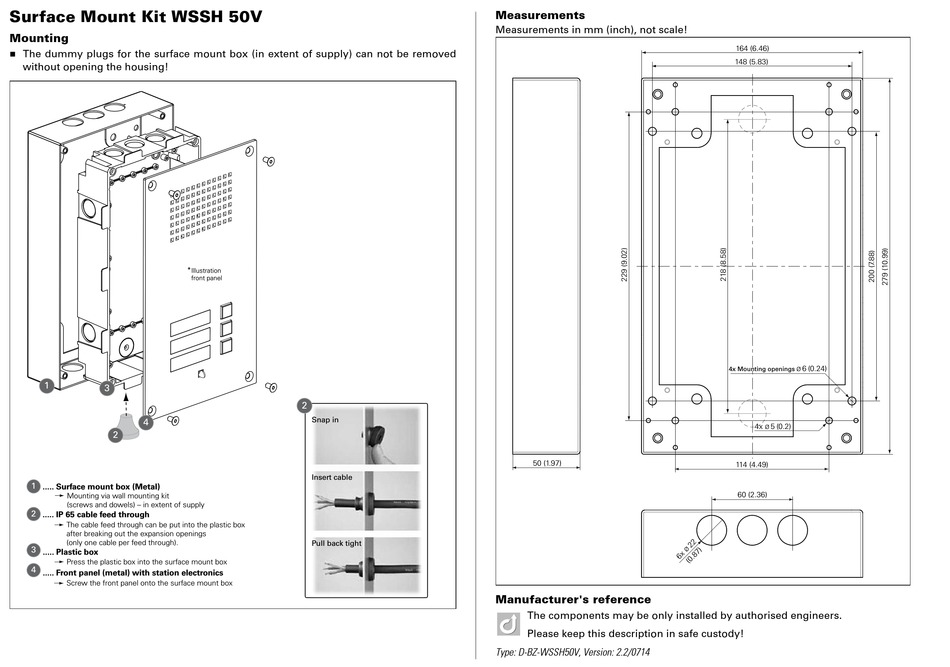

Commend WSSH 50V Kurzanleitung Seite 2

Surface Mount Kit WSSH 50V
Mounting
 The dummy plugs for the surface mount box (in extent of supply) can not be removed
without opening the housing!
*
1
3
4
2
1
..... Surface mount box (Metal)
Mounting via wall mounting kit
(screws and dowels) – in extent of supply
2
..... IP 65 cable feed through
The cable feed through can be put into the plastic box
after breaking out the expansion openings
(only one cable per feed through).
3
..... Plastic box
Press the plastic box into the surface mount box
4
..... Front panel (metal) with station electronics
Screw the front panel onto the surface mount box
Illustration
front panel
2
Snap in
Insert cable
Pull back tight
Measurements
Measurements in mm (inch), not scale!
50 (1.97)
Manufacturer's reference
The components may be only installed by authorised engineers.
Please keep this description in safe custody!
Type: D-BZ-WSSH50V, Version: 2.2/0714
164 (6.46)
148 (5.83)
6 (0.24)
4x Mounting openings
Ø
4x 5 (0.2)
Ø
114 (4.49)
60 (2.36)
