17.

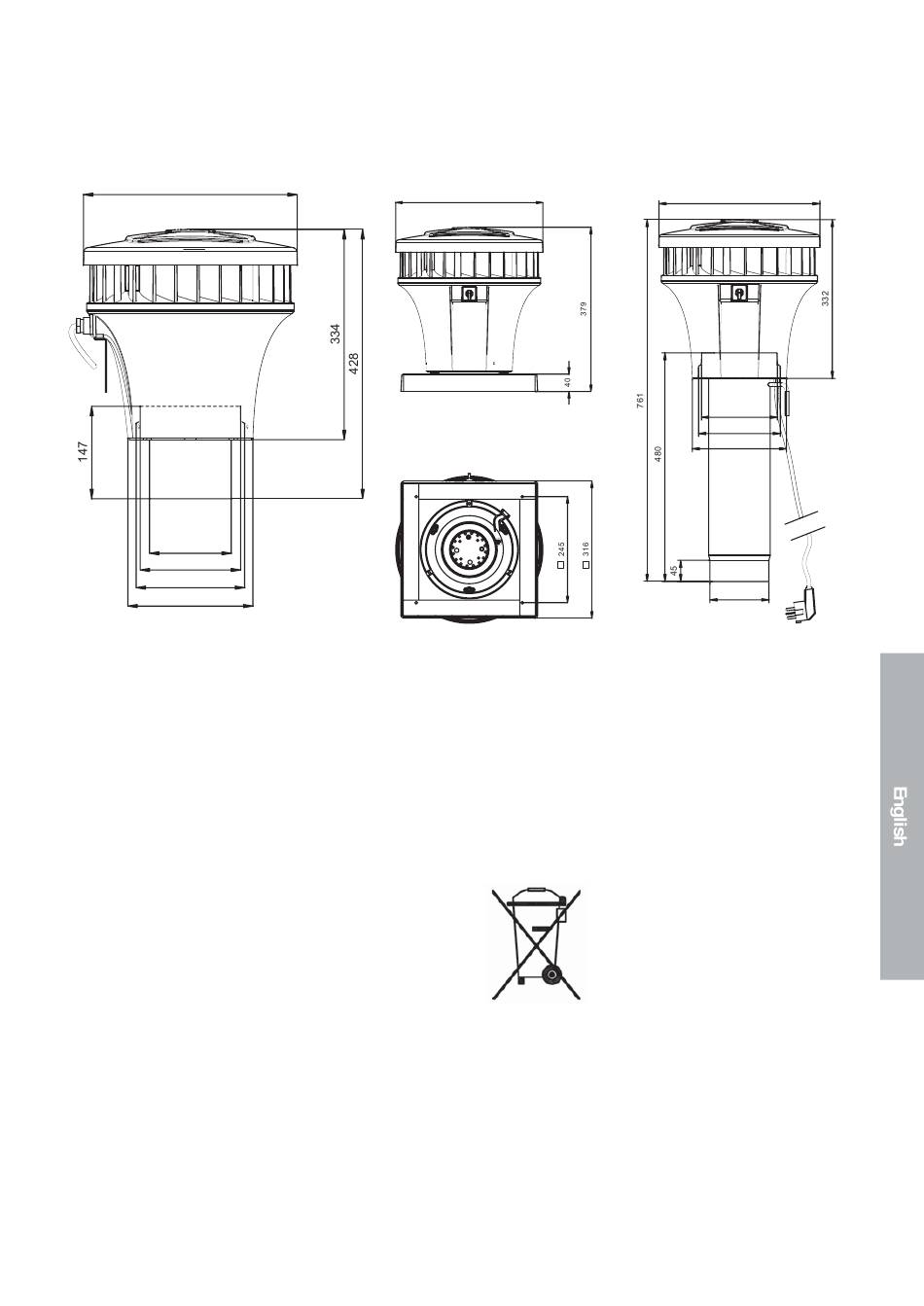

Dimensioned drawings
Dimensions are in mm.
ø340
ø130
ø160
ø173
ø199
fi g. 9
18.
Specifi cations
Power supply voltage: 230V±10%, single-phase, 50Hz
Minimum ambient temperature: -10°C
Maximum ambient temperature: +50°C
19.
End of useful life
At the end of the life-span of the fan, the user is
responsible for the safe dismantling of the fan and for
removal of the parts in compliance with locally applica-
ble legislation or statutes.
ø
340
fi g. 10
35
ø
340
ø
160
ø
173uitw.
ø
199inw.
124
