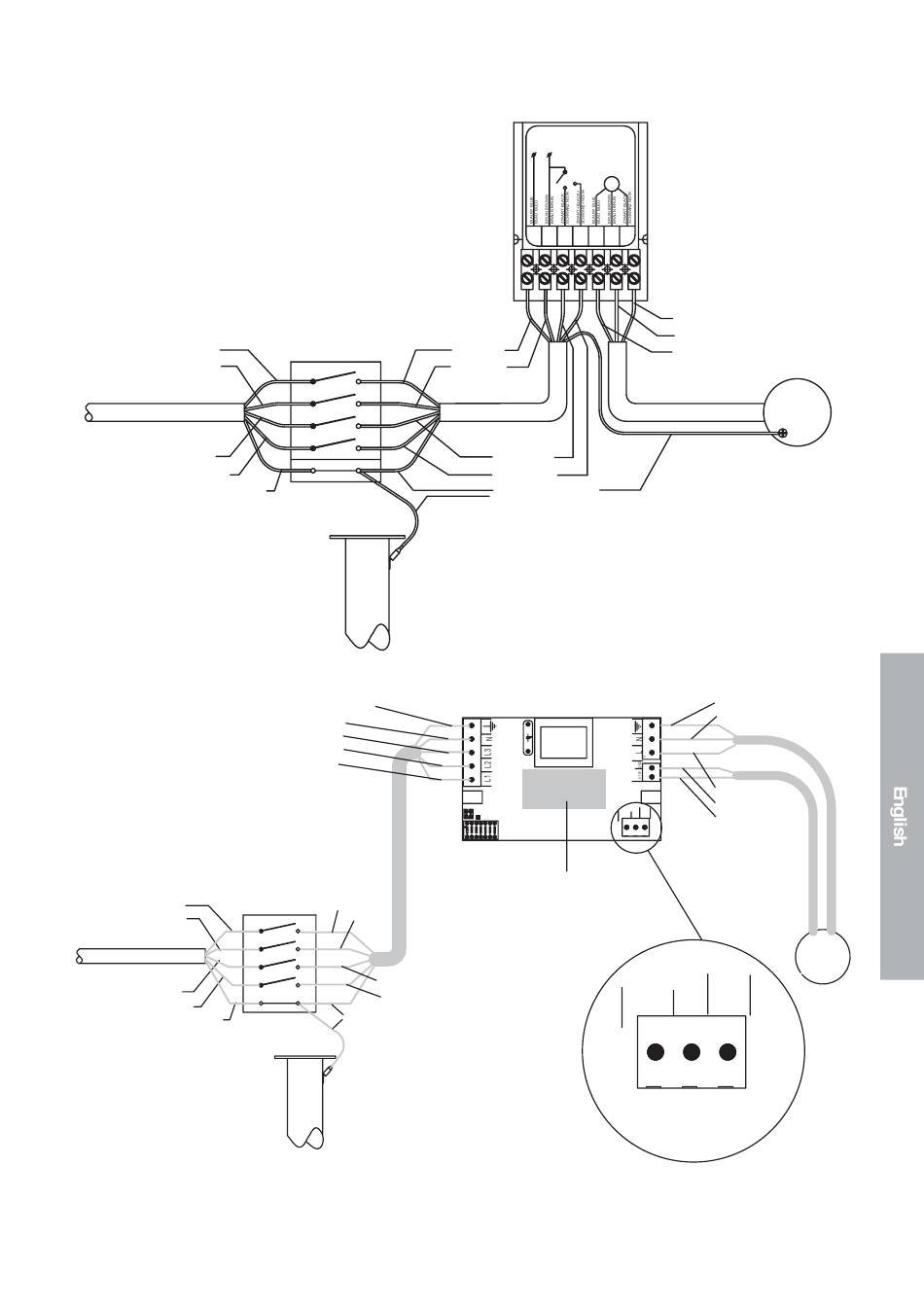

Wiring diagram

Blue
Brown
Network connection
Black
Grey
Yellow/Green
fi g. 5
Operating switch
Blue
Brown
Network connection
Black
Grey
Yellow/Green
Standpipe
RPM, VPM,
KPM
fi g. 6
When connecting the RF / 0-10V controller, it is not necessary to connect
the wires to the operating switch number 6 (black) and number 8 (grey).
Condenser module
Operating switch
2 1
4 3
6 5
8 7
PE
Standpipe
RPM, VPM,
KPM
Yellow/Green
Blue
Brown
Black
Grey
Blue
Brown
2 1
4 3
6 5
8 7
Black
Grey
PE
Yellow/Green
230V 50Hz
L = LAAG LOW NIEDRIG BAS
M = MIDDEN MEDIUM MITTEL MOYEN
H = HOOG HIGH HOCH HAUT
L
H
M
M
1~
N L3 L2 L1 U1 Z U2
Blue
Brown
Black
Grey
Yellow/green
C10
L1
J1
J7
0-10V
R28
SW1
R27
RPMe Rev3.00
RF raised PCB
(optional)
33
Black
Brown
Blue
M
Yellow/Green
Blue
Brown
Blue
Yellow
GND 10V
J9
0-10V
Input
10V
0-10V GND
M
