11. Settings for the DC fan

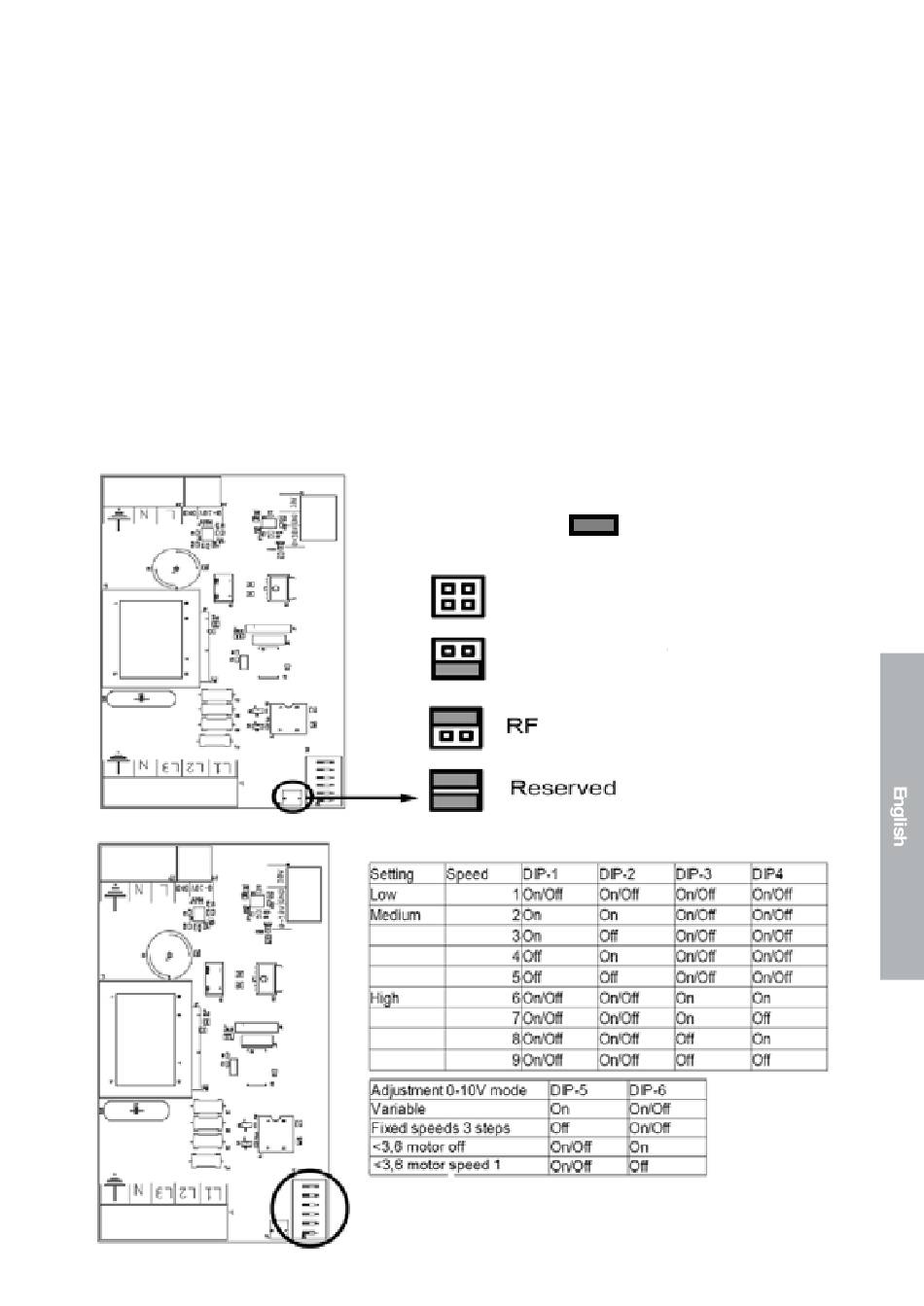

Jumper settings (see fi g. 2)
Three different inputs can be selected using the
jumper.
• Perilex input (factory setting)
• External 0-10 Volt signal. This signal can be con-
nected to the clamps designated 0-10V/GND/10V
(fi g. 6)
• RF (cordless radio-controlled remote). The
J.E.StorkAir (RFZ) switch, receiver/raised PCB, can
be supplied for this.
Dipswitch. (see fi g. 3)
Nine capacity ranges can be selected using the
dipswitch.
• Low setting - no choice
• Medium setting - choice of 4 ranges
• High setting - choice of 4 ranges
Perilex jumper settings (see fi g. 2)
• Controlled via perilex input
0-10Volt input
Place the jumper in the setting given below (see fi g. 2)
• For variable control, set DIP 5 to On
• For control in three positions, set DIP5 to Off.
(table DIP1 to 4 are used).
• <5Volt is low
• Between 5Volt and 9Volt is medium
• Higher than 9Volt is high.
RF (optional)
Set the jumper to the setting given below (see fi g. 2)
Fit the RF raised PCB (see fi g. 7)
Jumper setting
Perilex input (factory setting)
External 0 - 10V
