Service Mode; Backwash Mode - Davey Lifeguard DPLGEU Installations- Und Betriebsanweisungen

• Return to the dashboard now by using the home button (refer Figure 9.22).
• Once back at the dashboard "Winter Mode Active" will now appear (refer Figure 9.23).
• To turn off WINTER MODE, repeat the process shown above, but opt for "WINTER MODE: OFF".

9.4 SERVICE MODE

The service mode menu is only accessed by the manufacturer &/or it's Authorised Service Representatives.
9.5 SPA MODE
The Davey Lifeguard is compatible with large swimming pool applications as well as much smaller spa
applications. SPA MODE is only applicable if NO ORP probe is connected. Turning on the SPA MODE
reduces the chlorinator cell duty cycle by 80% of its current setting.
For example:
• If the EcoSalt2 is on for 10 hours per day, the CHLORINE OUTPUT is set to 50%, but the SPA MODE
is off: the EcoSalt2 cell duty cycle is 5 hours of that day.
• However, if the EcoSalt2 is on for 10 hours per day, the CHLORINE OUTPUT is set to 50%, and
SPA MODE is on: the EcoSalt2 cell duty cycle is only 1 hour of that day.
• Similarly, if the EcoSalt2 is on for 10 hours per day, the CHLORINE OUTPUT is set to 25%, and
SPA MODE is on: the EcoSalt2 cell duty cycle is only 30 minutes of that day.
Reminder: SPA MODE can only be selected from the menu if ORP probe is not connected.

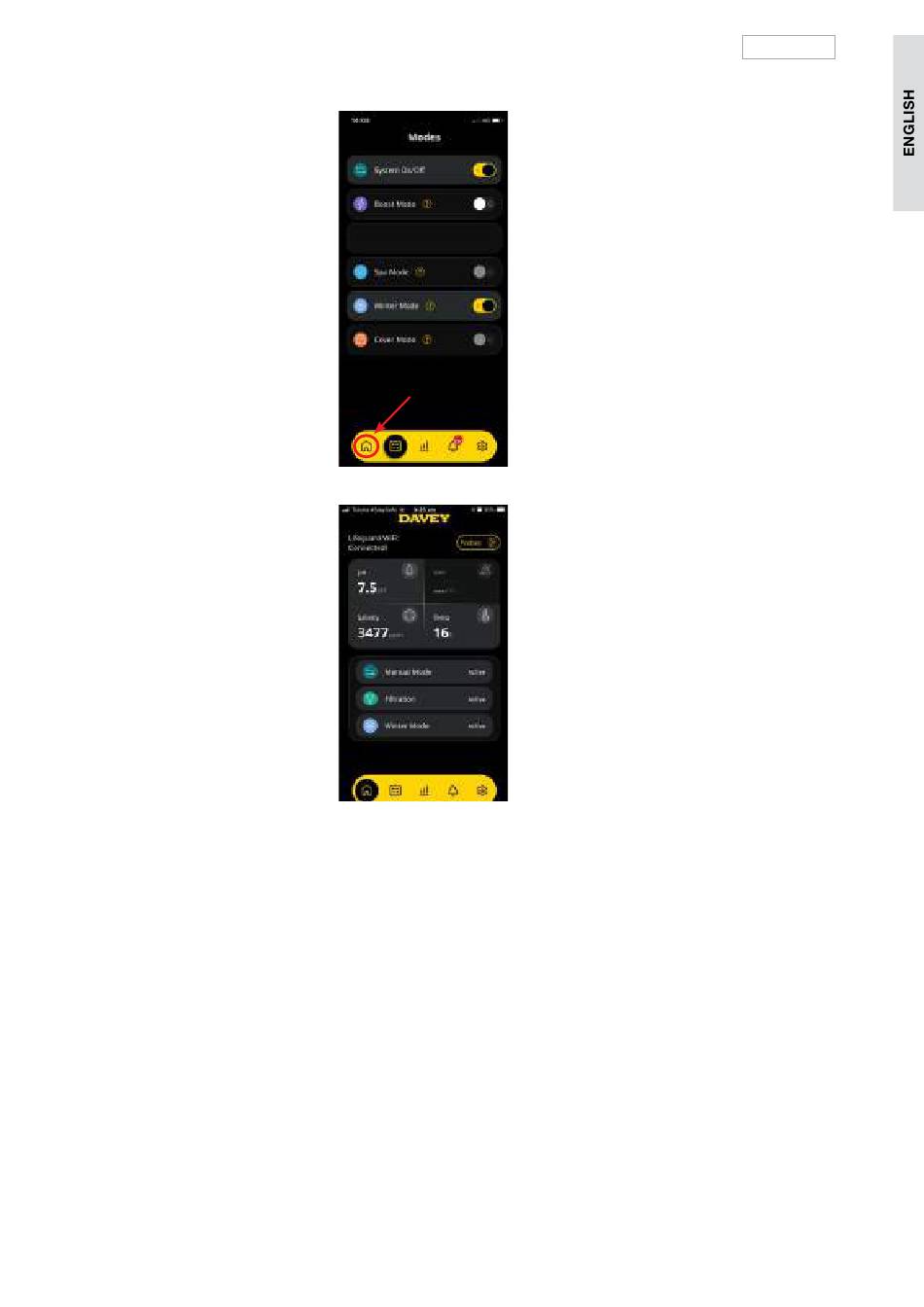

Figure 9.22
Figure 9.23
