4.4.5. Plumbing the probe & injection point housing to acid dosing pump
Following Section 4.3, the acid (delivery) feeder tubing should be fitted to the delivery connection of the
pump (represented on the lid with s), and tightened with the locking nut.
IMPORTANT: Davey recommends ensuring that all feeder tubing and probe cables
be attached to pipework where possible. Use "cable ties" or "sticky/electrical tape".
This is good practice, not only as the installation looks more professional, but it also
limits potential damage to feeder tubes and probe cables by becoming entangled, or
pulled by users during servicing of equipment etc.
• Screw the acid injection point, into the probe injection point housing (refer Figure 4.10). This will require
plumbing thread tape only. DO NOT USE SEALING COMPOUNDS, OR PIPE DOPE.
• Attach the other end of the acid injection point to the acid (delivery) feeder tubing and tighten the nut on
the acid injection point (refer Figure 4.11).

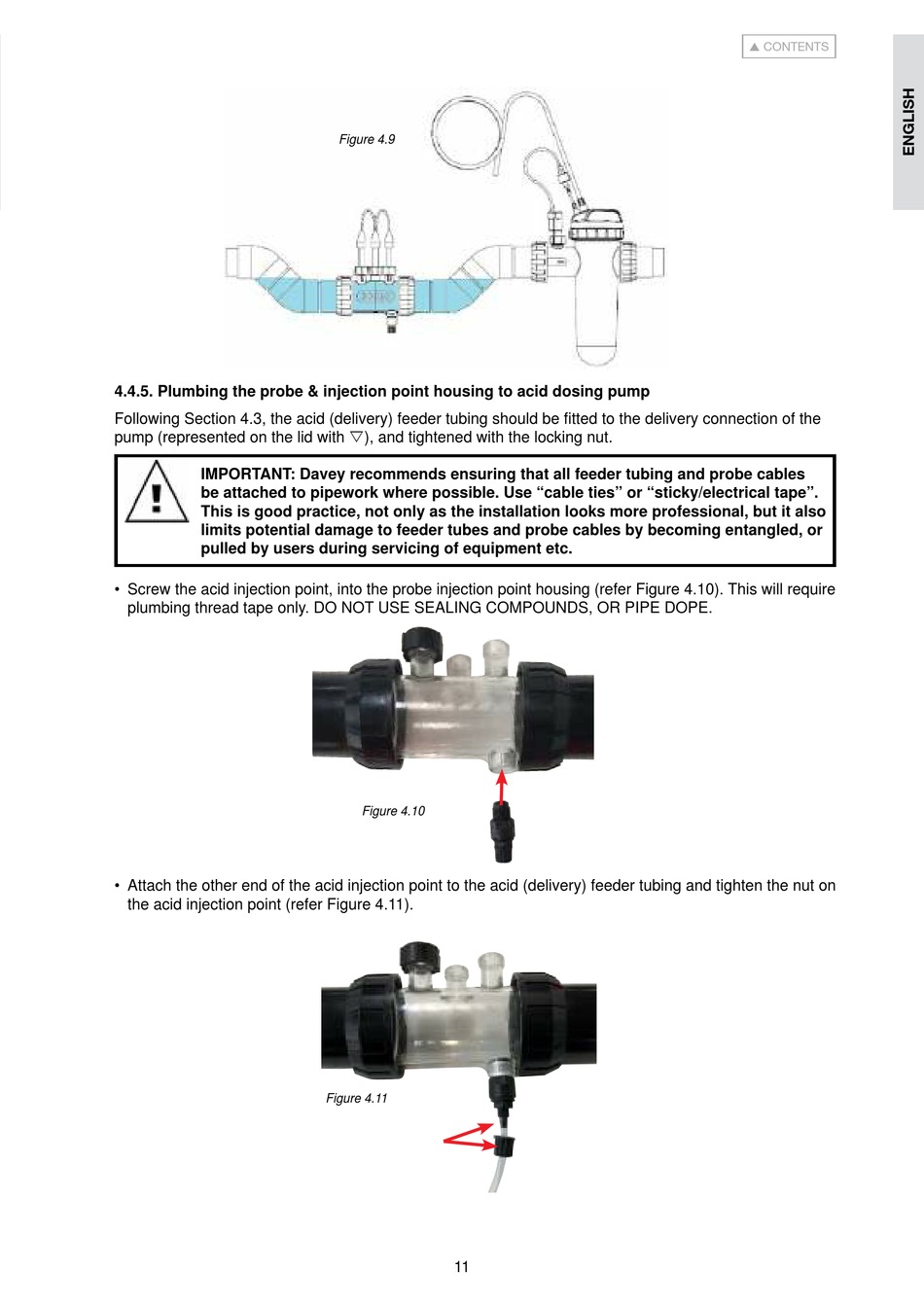

Figure 4.9
Figure 4.10
Figure 4.11
