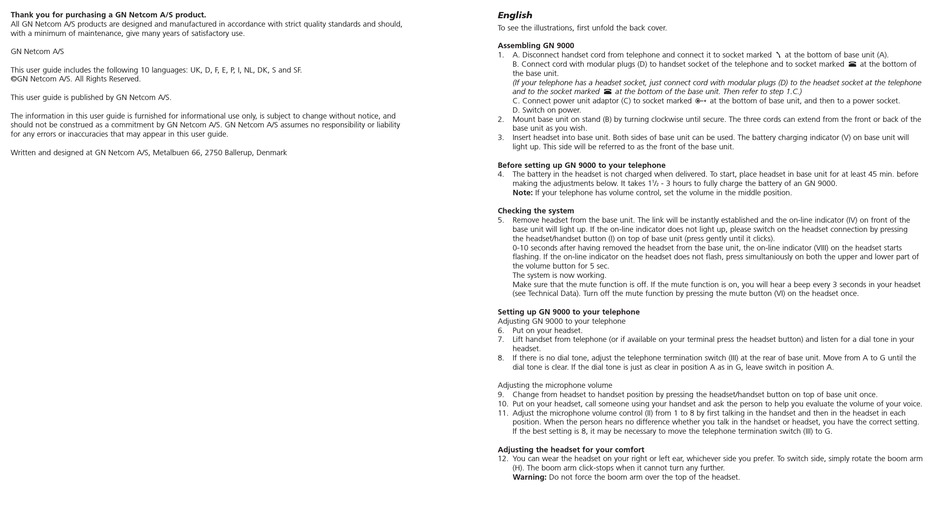

Thank you for purchasing a GN Netcom A/S product.
All GN Netcom A/S products are designed and manufactured in accordance with strict quality standards and should,
with a minimum of maintenance, give many years of satisfactory use.
GN Netcom A/S
This user guide includes the following 10 languages: UK, D, F, E, P, I, NL, DK, S and SF.
©GN Netcom A/S. All Rights Reserved.
This user guide is published by GN Netcom A/S.
The information in this user guide is furnished for informational use only, is subject to change without notice, and
should not be construed as a commitment by GN Netcom A/S. GN Netcom A/S assumes no responsibility or liability
for any errors or inaccuracies that may appear in this user guide.
Written and designed at GN Netcom A/S, Metalbuen 66, 2750 Ballerup, Denmark
English
To see the illustrations, first unfold the back cover.
Assembling GN 9000
A. Disconnect handset cord from telephone and connect it to socket marked 0 at the bottom of base unit (A).
1.
B. Connect cord with modular plugs (D) to handset socket of the telephone and to socket marked
the base unit.
(If your telephone has a headset socket, just connect cord with modular plugs (D) to the headset socket at the telephone
1
and to the socket marked
at the bottom of the base unit. Then refer to step 1.C.)
C. Connect power unit adaptor (C) to socket marked 2 at the bottom of base unit, and then to a power socket.
D. Switch on power.
2.
Mount base unit on stand (B) by turning clockwise until secure. The three cords can extend from the front or back of the
base unit as you wish.
3.
Insert headset into base unit. Both sides of base unit can be used. The battery charging indicator (V) on base unit will
light up. This side will be referred to as the front of the base unit.
Before setting up GN 9000 to your telephone
4.
The battery in the headset is not charged when delivered. To start, place headset in base unit for at least 45 min. before
making the adjustments below. It takes 1
1
/
- 3 hours to fully charge the battery of an GN 9000.
2
Note: If your telephone has volume control, set the volume in the middle position.
Checking the system
5.
Remove headset from the base unit. The link will be instantly established and the on-line indicator (IV) on front of the
base unit will light up. If the on-line indicator does not light up, please switch on the headset connection by pressing
the headset/handset button (I) on top of base unit (press gently until it clicks).
0-10 seconds after having removed the headset from the base unit, the on-line indicator (VIII) on the headset starts
flashing. If the on-line indicator on the headset does not flash, press simultaniously on both the upper and lower part of
the volume button for 5 sec.
The system is now working.
Make sure that the mute function is off. If the mute function is on, you will hear a beep every 3 seconds in your headset
(see Technical Data). Turn off the mute function by pressing the mute button (VI) on the headset once.
Setting up GN 9000 to your telephone
Adjusting GN 9000 to your telephone
6.
Put on your headset.
7.
Lift handset from telephone (or if available on your terminal press the headset button) and listen for a dial tone in your
headset.
8.
If there is no dial tone, adjust the telephone termination switch (III) at the rear of base unit. Move from A to G until the
dial tone is clear. If the dial tone is just as clear in position A as in G, leave switch in position A.
Adjusting the microphone volume
9.
Change from headset to handset position by pressing the headset/handset button on top of base unit once.
10. Put on your headset, call someone using your handset and ask the person to help you evaluate the volume of your voice.
11. Adjust the microphone volume control (II) from 1 to 8 by first talking in the handset and then in the headset in each
position. When the person hears no difference whether you talk in the handset or headset, you have the correct setting.
If the best setting is 8, it may be necessary to move the telephone termination switch (III) to G.
Adjusting the headset for your comfort
12. You can wear the headset on your right or left ear, whichever side you prefer. To switch side, simply rotate the boom arm
(H). The boom arm click-stops when it cannot turn any further.
Warning: Do not force the boom arm over the top of the headset.
1
at the bottom of
