Full-integrated

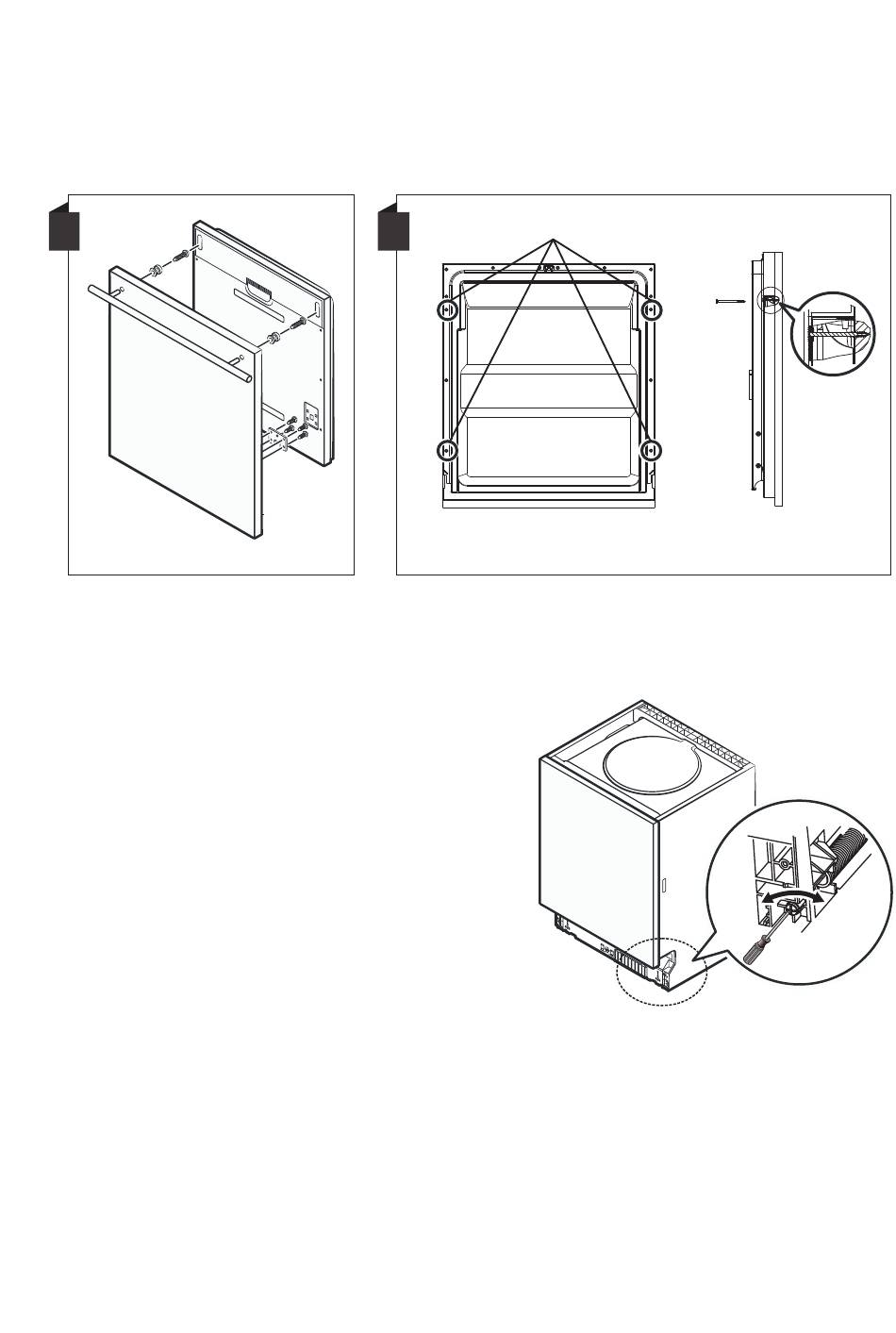

Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher (see figure A). After positioning of the panel , fix the panel
onto the outer door by screws and bolts (See figure B).
A
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to
the proper tension for the outer door. If
aesthetic wooden panel are installed, you
will have to adjust the door spring tension.
Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight
lift of a finger.
model
B
1.Take away the four short screws
23
2.Pin up the four long screws
