8. GENERAL INFORMATION

8.1 COVERAGE
The following factors influence the maximum measurement
range:
More coverage
Color of target object
Light
Surface
Shiny
Angle to target object Vertical
Size of object
Large
Sunlight Weak (cloudy)
Atmospheric
Clear
conditions
Structure of object Uniform (house wall)

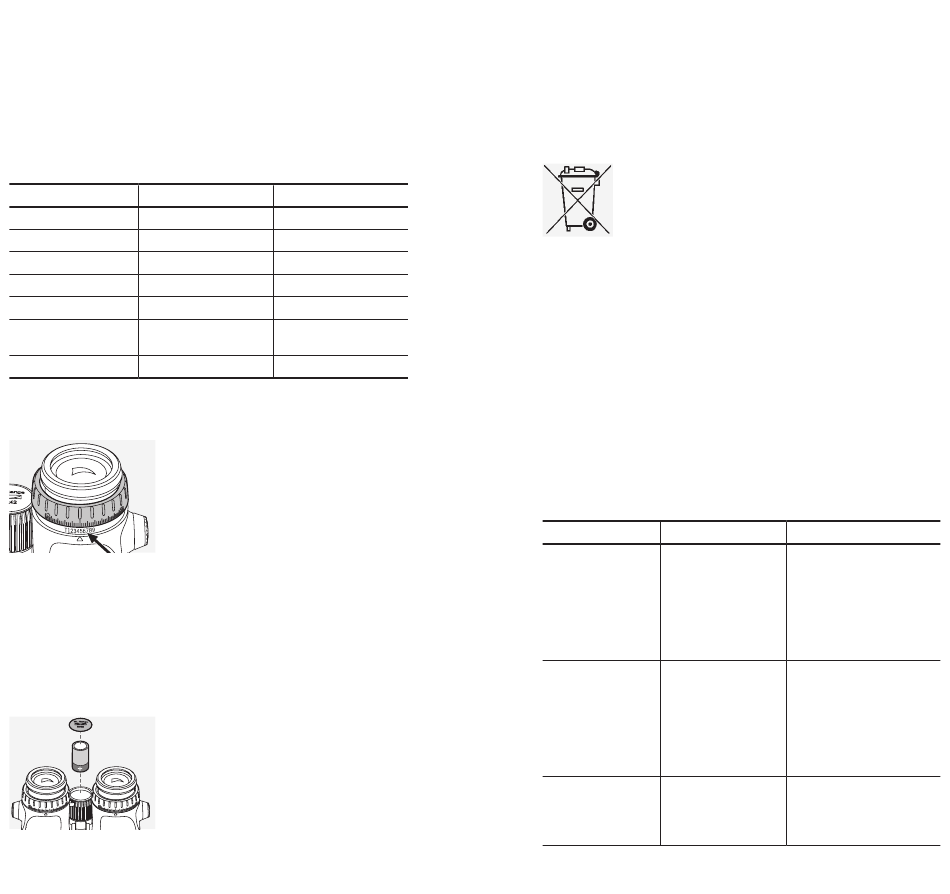

8.2 SERIAL NUMBER
You will find the serial number of
your binoculars on the right eyepiece
adapter. You will need to lift up the
right diopter adjustment ring.

8.3 CHANGING THE BATTERY

The battery symbol indicates when the battery is low. You can
still take about 100 measurements after the battery symbol
has appeared for the first time.
Changing the battery
• Open the battery compartment
cover in the focusing wheel using
the BT tool supplied. Remove the
dead battery.
• Insert the new CR2 battery. Please
check the polarities are correct, as
marked inside the compartment.
40
EL RANGE / EN EL RANGE / DE
Less coverage
Dark
Matt
Acute
Small
Strong (sunny)
Hazy
Not uniform (bush, tree)
Always use leakproof batteries.
Warning: Do not use rechargeable batteries!
• Screw the battery cover back on.
Batteries
Batteries must not be disposed of in household
waste. You are legally obliged to return used
batteries. You can return used batteries locally
(for example at your retailer or at a waste recy-
cling center) free of charge. Batteries are marked with the
symbol of a crossed-out wheeled waste container as well
as the chemical symbol for the hazardous substance they
contain: "Cd" for cadmium, "Hg" for mercury, and "Pb" for
lead.
Please help us to protect our environment from damaging
pollutants.
8.4 TROUBLESHOOTING AND DISPLAY
Problem Cause
The image doesn't The eyecup setting is
fill the entire field of not correctly adjusted
view (vignetting). for viewing with or
without glasses.
When measuring 1. Measurements out-
distance, the display side the measurement
shows "-----". range.
2. The object is not
sufficiently reflective.
3. The target is not
in focus.
When measuring 1. The measurement
distance, the display range is not reached.
shows "co" (clean 2. The objective lens
optic). is dirty.
EL RANGE / EN EL RANGE / DE
Solution
If you wear glasses, twist
in the eyecup as far as it
will go. If you do not wear
glasses, unscrew the eye-
cup to the desired position
(see section 3.1 Adjusting
the twist-in eyecup).
1. See the enclosed
technical data sheet.
2. See Section 8.1
Coverage.
3. See Section 3.5
Adjusting the focus.
1. See technical data.
2. Clean the objective lens.
41
