4. Adjusting the seat to the child's size / shortening the belts
4.10

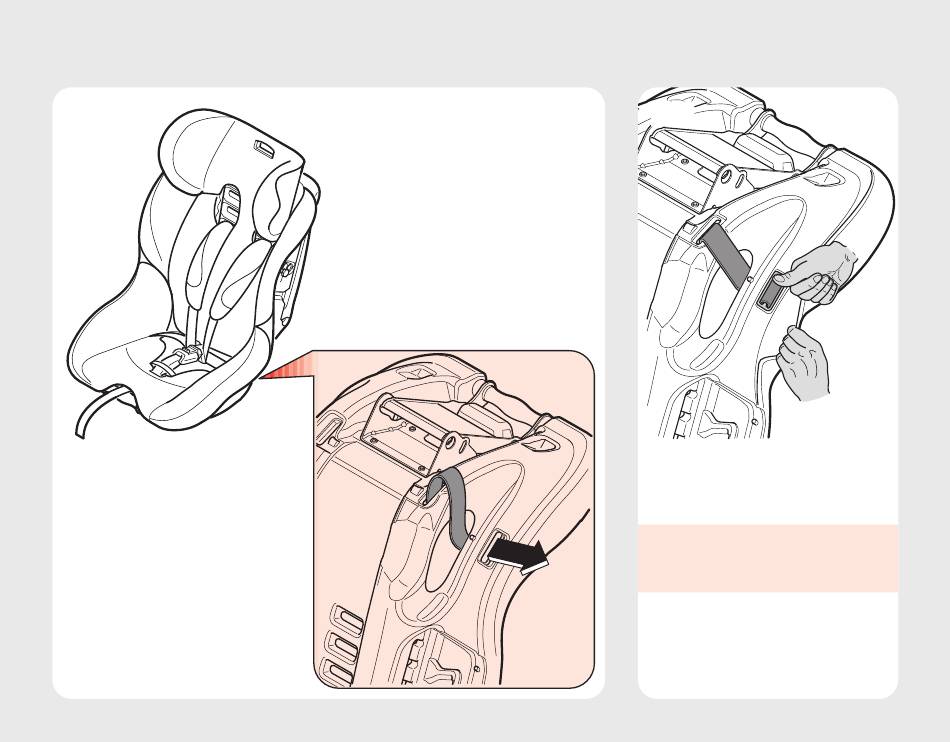

Remove the seat shell from the
base unit and lay the shell upside
down on a clean surface.
Release the elastic tapes on the
cover and pull the cover back a
little. Lever out the metal clasps
secured on the bottom of the
shell, and thread them through
the large side opening and the
small slot (see illustration).
4.11
0045-05
Now press the metal clasps from
the outside into the recess.
Both sides must be adjusted
equally!
