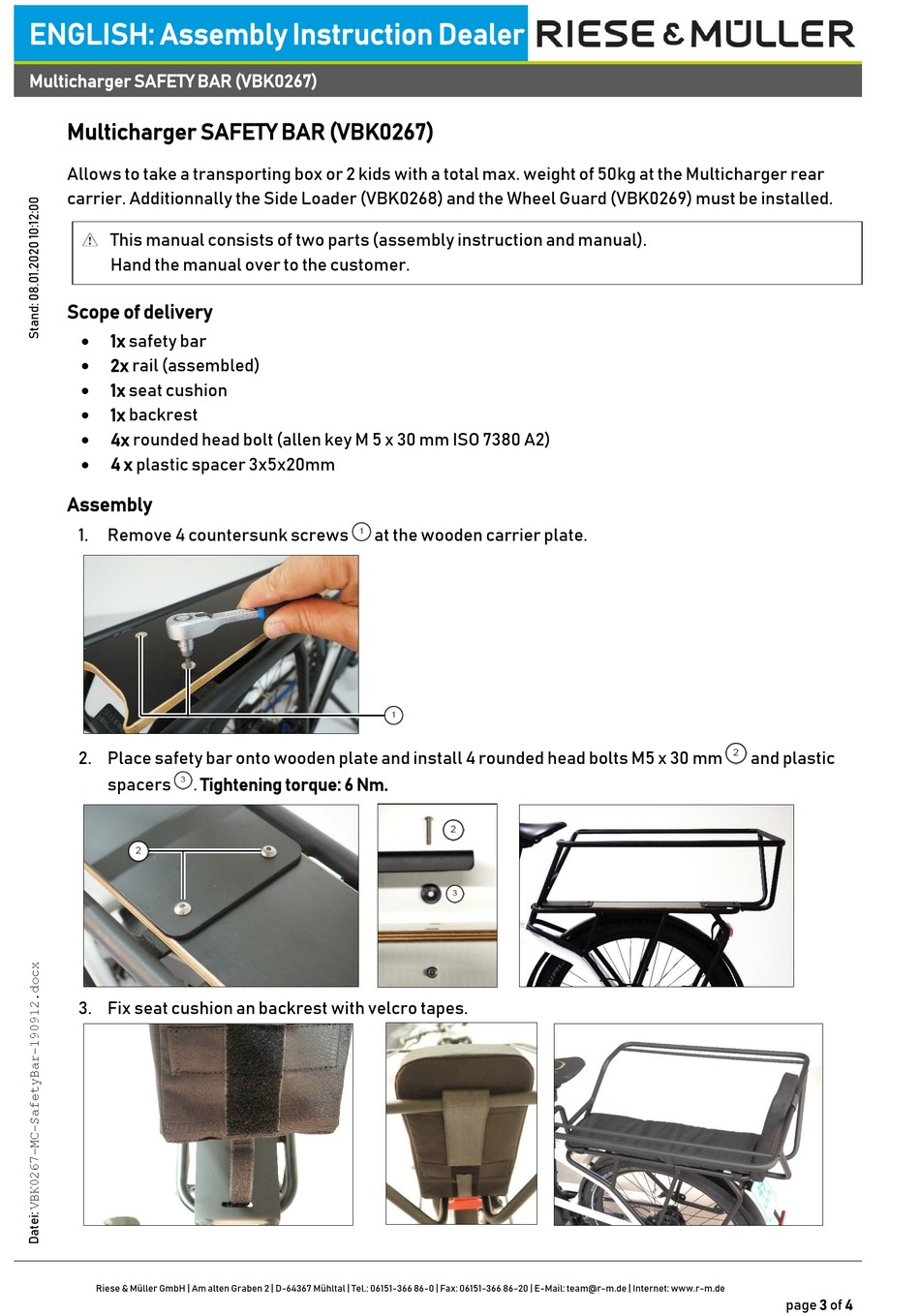

Multicharger SAFETY BAR (VBK0267)
Multicharger SAFETY BAR (VBK0267)
Allows to take a transporting box or 2 kids with a total max. weight of 50kg at the Multicharger rear
carrier. Additionnally the Side Loader (VBK0268) and the Wheel Guard (VBK0269) must be installed.
This manual consists of two parts (assembly instruction and manual).
Hand the manual over to the customer.
Scope of delivery
1x safety bar
2x rail (assembled)
1x seat cushion
1x backrest
4x rounded head bolt (allen key M 5 x 30 mm ISO 7380 A2)
4 x plastic spacer 3x5x20mm
Assembly
1.
Remove 4 countersunk screws
2. Place safety bar onto wooden plate and install 4 rounded head bolts M5 x 30 mm
spacers
. Tightening torque: 6 Nm.
3. Fix seat cushion an backrest with velcro tapes.
Riese & Müller GmbH | Am alten Graben 2 | D-64367 Mühltal | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
at the wooden carrier plate.
and plastic
