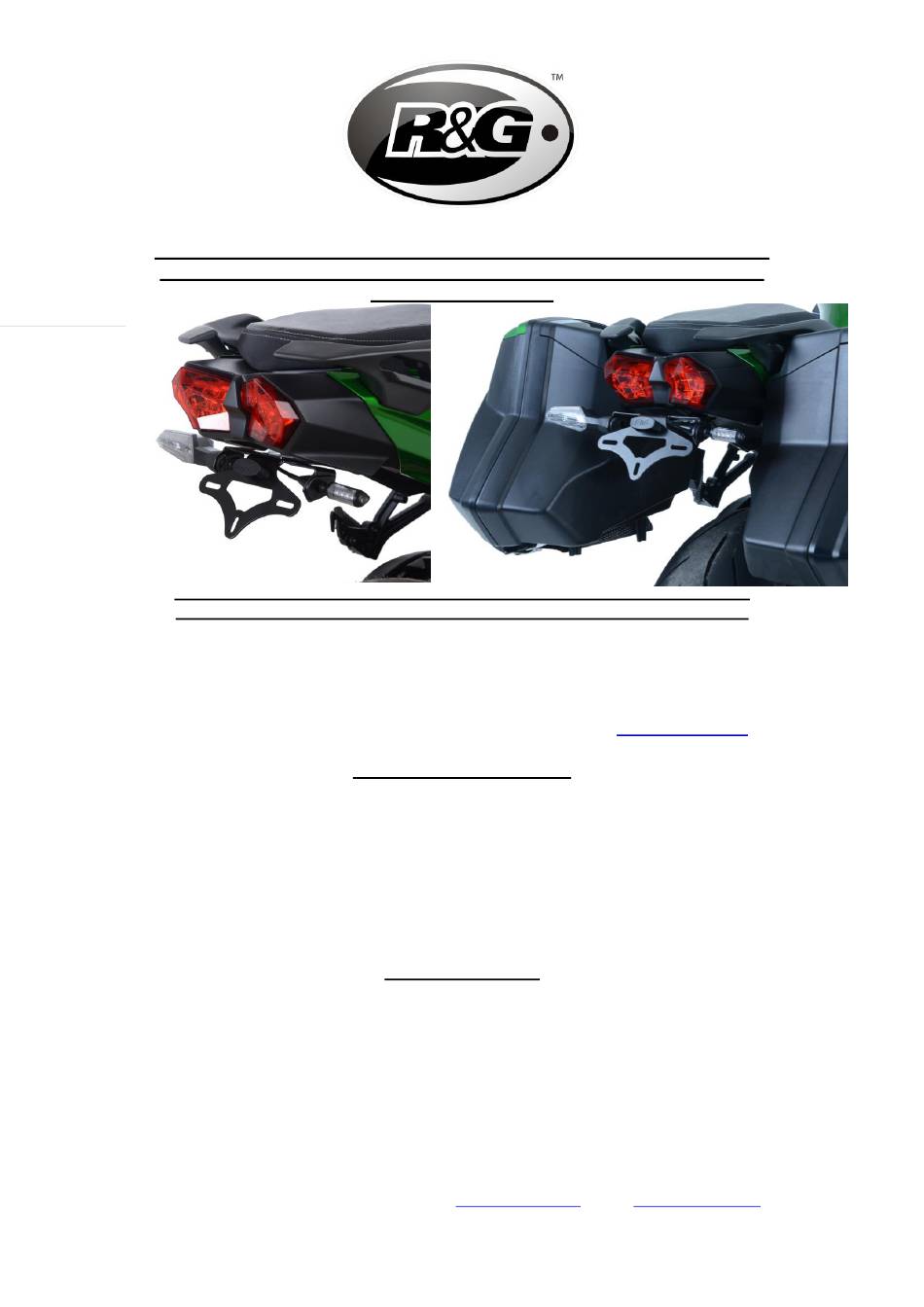

FITTING INSTRUCTIONS FOR LP0247BK LICENCE PLATE BRACKET
KAWASAKI H2 SX 2018 (FOR USE WITH STANDARD AND R&G MINI
Page | 1
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Digital copies of these instructions are available to download from
Please note that in cases where kits are packed with rubber washers holding the components
•
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
INDICATORS (8mm))
mounting to the bike
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
onto the bolt – the rubber washers should be thrown away!
TOOLS REQUIRED
•
Set of metric Allen keys to include 3, 4 and 5mm A/F sizes.
Socket set to include 6, 10 and 12mm A/F socket and wrench or spanners.
•
•
Electrical pliers/crimps.
•
Small amount of super glue.
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
www.rg-racing.com
Phillips driver.
www.rg-racing.com
Email:
1
LP0247
)
info@rg-racing.com
Werbung
Verwandte Anleitungen für R&G LP0247BK
Inhaltszusammenfassung für R&G LP0247BK
- Seite 1 LP0247 FITTING INSTRUCTIONS FOR LP0247BK LICENCE PLATE BRACKET KAWASAKI H2 SX 2018 (FOR USE WITH STANDARD AND R&G MINI INDICATORS (8mm)) Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

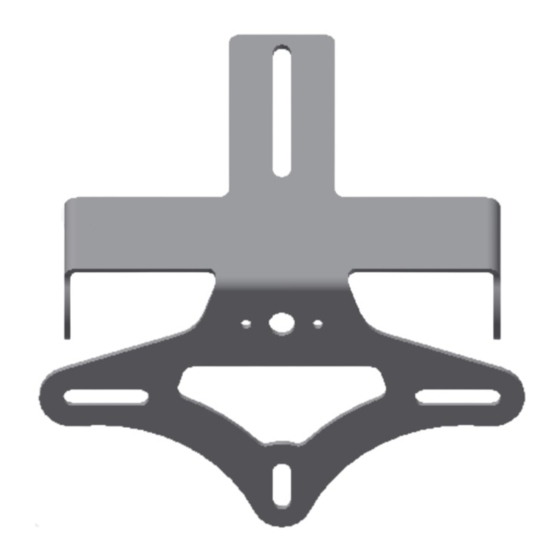

- Seite 2 LP0247 Page | 2 LEGEND ITEM 1 = LICENCE PLATE MOUNTING BRACKET (TB0247 PART 1) (x1). ITEM 2 = M6 WASHER (x11). ITEM 3 = M6 NYLOC NUTS (x4). ITEM 4 = M6 x 20mm LONG BUTTON HEAD BOLTS (x4). ITEM 5 = LICENCE PLATE ILLUMINATOR/INDICATOR CONNECTORS (CON0004) (x3).
