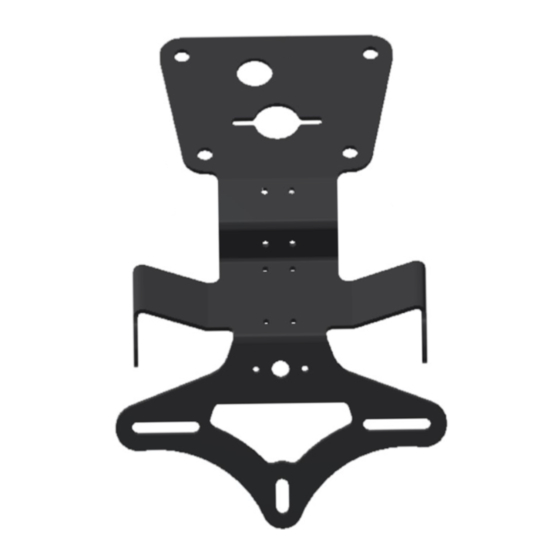

FITTING INSTRUCTIONS FOR LP0242BK LICENCE PLATE BRACKET
KAWASAKI Z900RS 2018 (FOR USE WITH STANDARD AND R&G MINI
Page | 1
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Digital copies of these instructions are available to download from
Please note that in cases where kits are packed with rubber washers holding the components
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
INDICATORS (8mm))
mounting to the bike
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
onto the bolt – the rubber washers should be thrown away!
TOOLS REQUIRED
Set of metric Allen keys to include, 4 and 5mm A/F sizes.
Socket set to include 10 and 13mm A/F socket and wrench.
Electrical pliers/crimps.
Small amount of super glue.
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
www.rg-racing.com
Phillips driver.
www.rg-racing.com
Email:
1
LP0242
)
info@rg-racing.com
Werbung
Verwandte Anleitungen für R&G LP0242BK
Inhaltszusammenfassung für R&G LP0242BK
- Seite 1 LP0242 FITTING INSTRUCTIONS FOR LP0242BK LICENCE PLATE BRACKET KAWASAKI Z900RS 2018 (FOR USE WITH STANDARD AND R&G MINI INDICATORS (8mm)) Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
- Seite 2 LP0242 Page | 2 LEGEND ITEM 1 = LICENCE PLATE BRACKET (TB0242) (x1). ITEM 2 = M8 x 20mm LONG BUTTON HEAD BOLTS (x4). ITEM 3 = M8 NYLOC NUTS (x4). ITEM 4 = M8 WASHER (x8). ITEM 5 = RUBBER GASKET (RG0034) (x1) ITEM 6 = MINI INDICATOR ADAPTORS (I0039) (x4).
- Seite 3 LP0242 Page | 3 Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 Picture 6 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 4 LP0242 Page | 4 Picture 7 Picture 8 Picture 9 Picture 10 Picture 11 Picture 12 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 5 LP0242 Page | 5 Picture 13 Picture 14 Picture 15 Picture 16 Picture 17 Picture 18 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 6 LP0242 Page | 6 Picture 19 Picture 20 Picture 21 Picture 22 Picture 23 Picture 24 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 7 LP0242 Page | 7 Picture 25 Picture 26 Picture 27 Picture 28 Picture 29 Picture 30 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Seite 8: Fitting Instructions
LP0242 Page | 8 Picture 31 Picture 32 FITTING INSTRUCTIONS To fit the R&G tail tidy, first remove the seat using the key as shown in picture 1. Remove the four bolts arrowed in pictures 2 and 3 (please be aware the bolts have spacers fitted as shown in picture 4). - Seite 9 LP0242 If fitting the R&G Mini Indicators, the OEM indicator wiring will need to be “cut and shut” in order to re-use the original connectors to connect the R&G Mini Indicators to the wiring loom. This is done by cutting the connectors off the original indicators (approximately 50mm from the plug socket), before fitting the bullet connectors (item 9) to the exposed wiring and Page | 9 connecting to the R&G indicators.
- Seite 10 LP0242 CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes.
-
Seite 11: Outils Requis
LP0242 NOTICE DE MONTAGE POUR LP0242BK SUPPORT DE PLAQUE KAWASAKI Z900RS 2018 (POUR UTILISER AVEC LES CLIGNOTANTS STANDARD OU MINI CLIGNOTANTS R&G (8mm)) Page | 11 Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. - Seite 12 LP0242 Page | 12 LÉGENDE ARTICLE 1 = SUPPORT DE PLAQUE (TB0242) (x1). ARTICLE 2 = M8 x 20mm BOULONS (x4). ARTICLE 3 = M8 ÉCROUS (x4). ARTICLE 4 = M8 RONDELLE (x8). ARTICLE 5 = JOINT EN CAOUTCHOUC (RG0034) (x1) ARTICLE 6 = ADAPTATEURS MINI CLIGNOTANTS (I0039) (x4).
- Seite 13 LP0242 Page | 13 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 14 LP0242 Page | 14 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 15 LP0242 Page | 15 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 16 LP0242 Page | 16 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Seite 17 LP0242 Page | 17 Photo 25 Photo 26 Photo 27 Photo 28 Photo 29 Photo 30 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Seite 18: Notice De Montage
LP0242 Page | 18 Photo 31 Photo 32 NOTICE DE MONTAGE Pour monter le support de plaque R&G, commencez par enlever le siège à l’aide de la clé, voir photo 1. Enlever les 4 boulons indiqués sur les photos 2 et 3 (attention, les boulons possèdent des entretoises, voir photo 4). - Seite 19 LP0242 Si vous montez les mini clignotants R&G, le fil de clignotants d’origine devra être “coupé puis fermé” pour réutiliser les connecteurs d’origine afin de connecter les mini clignotants R&G au faisceau de fils. Cela s’effectue en coupant les connecteurs des clignotants d’origine (à...
- Seite 20 LP0242 CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order. Page | 20 The Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality...
- Seite 21 LP0242 MONTAGEANLEITUNG FÜR LP0242BK KENNZEICHENHALTER KAWASAKI Z900RS 2018 (MONTAGE VON STANDARD- UND R&G MINIBLINKER (8mm)) Page | 21 ALLE KIT-TEILE SIND UNTEN ABGEBILDET UND GEKENNZEICHNET. BEVOR SIE MIT DER MONTAGE BEGINNEN, ÜBERPRÜFEN SIE, DASS ALLE TEILE VORHANDEN SIND. Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar.
- Seite 22 LP0242 Page | 22 LIEFERUMFANG ARTIKEL 1 = KENNZEICHENHALTER (TB0242) (x1) ARTIKEL 2 = M8 x 20mm INBUSSCHRAUBE (x4) ARTIKEL 3 = M8 SELBSTSICHERNDE MUTTER (x4) ARTIKEL 4 = M8 UNTERLEGSCHEIBE (x8) ARTIKEL 5 = GUMMIDICHTUNG (RG0034) (x1) ARTIKEL 6 = ADAPTER FÜR DIE MINIBLINKER (I0039) (x4) ARTIKEL 7 = SILICONABDECKUNGEN FÜR DIE MUTTER (BLINKER) (IWC0002) (x2) ARTIKEL 8 = KABELBINDER (x3) ARTIKEL 9 = KABELVERBINDUNG (CON0004) (x3)
- Seite 23 LP0242 MONTAGEANLEITUNG Um den R&G Kennzeichenhalter montieren zu können, entfernen Sie zuerst den Soziussitz (der Schlüssel wird hierfür benötigt) –siehe Abbildung 1. Entfernen Sie die vier Schrauben, die in den Abbildungen 2 und 3 abgebildet sind (bitte beachten Sie, dass Distanzhalter an den Schrauben montiert sind – siehe Abbildung 4). ...
- Seite 24 LP0242 Montieren Sie die R&G Kennzeichenbeleuchtung (Artikel 10) wie in den Abbildungen 25 und 26 abgebildet. Bitte beachten Sie, dass die Abdeckung für die Kennzeichenbeleuchtung mit etwas Sekundenkleber in Position befestigt werden muss. Die Verkabelung der original Kennzeichenbeleuchtung muss abgetrennt und abisoliert werden, um die original Verbinder wiederzuverwenden und mit den Kennzeichenbeleuchtung am Kabelbaum anzuschließen.
