5.2 Interface introduction
5.3 SpO2 probe installation
Open the USB plug of the device, then insert the SpO2 probe interface into the USB port of the device.
5.4 Connection of USB cable
Open the USB plug of the device, insert the micro end of USB cable into the SpO2 probe interface , the
other end into computer or power adapter.
5.5 Structure and accessories
A. Structure: main unit, SpO2 probe, USB cable, power adapter (optional).
B. Accessories: one SpO2 probe, one USB cable, one power adapter (optional), one User Manual.
Please check the device and accessories according to the list to avoid that the device can not work
normally.
6. Operating
6.1 Measurement
A. Insert the finger into the probe as shown in Figure 4.
(The appearance of actual probe may be different with the one shown as Figure 4, please refer to
the actual probe.)
B. Press button to turn on the device, it displays the measurement interface.
C. Wait a few seconds, the device directly shows measurement result on the screen.
When inserting the finger, the light emitting from the sensor must be directly irradiated to the
side of the fingernail.
During measuring, do not shake the finger and keep quiet, not move.
6.2 Measurement interface
A. In sound prompt "ON" state, when the sound prompt occurs, short press the button to pause the
sound prompt, and it will resume automatically after about 60s.
Sound prompt includes over-limit prompt, low-battery prompt, probe off or finger out prompt.
B. If you want to turn off the sound prompt permanently, please set it in menu.
If there is no sound prompt, short pressing the button will directly enter clock interface, press again
to exit.
6.3 Menu operation
Under the measurement interface, long press the button to enter the main menu interface as shown in
Figure 5, sound, record, clock,system, etc. can be set, methods are as followings:

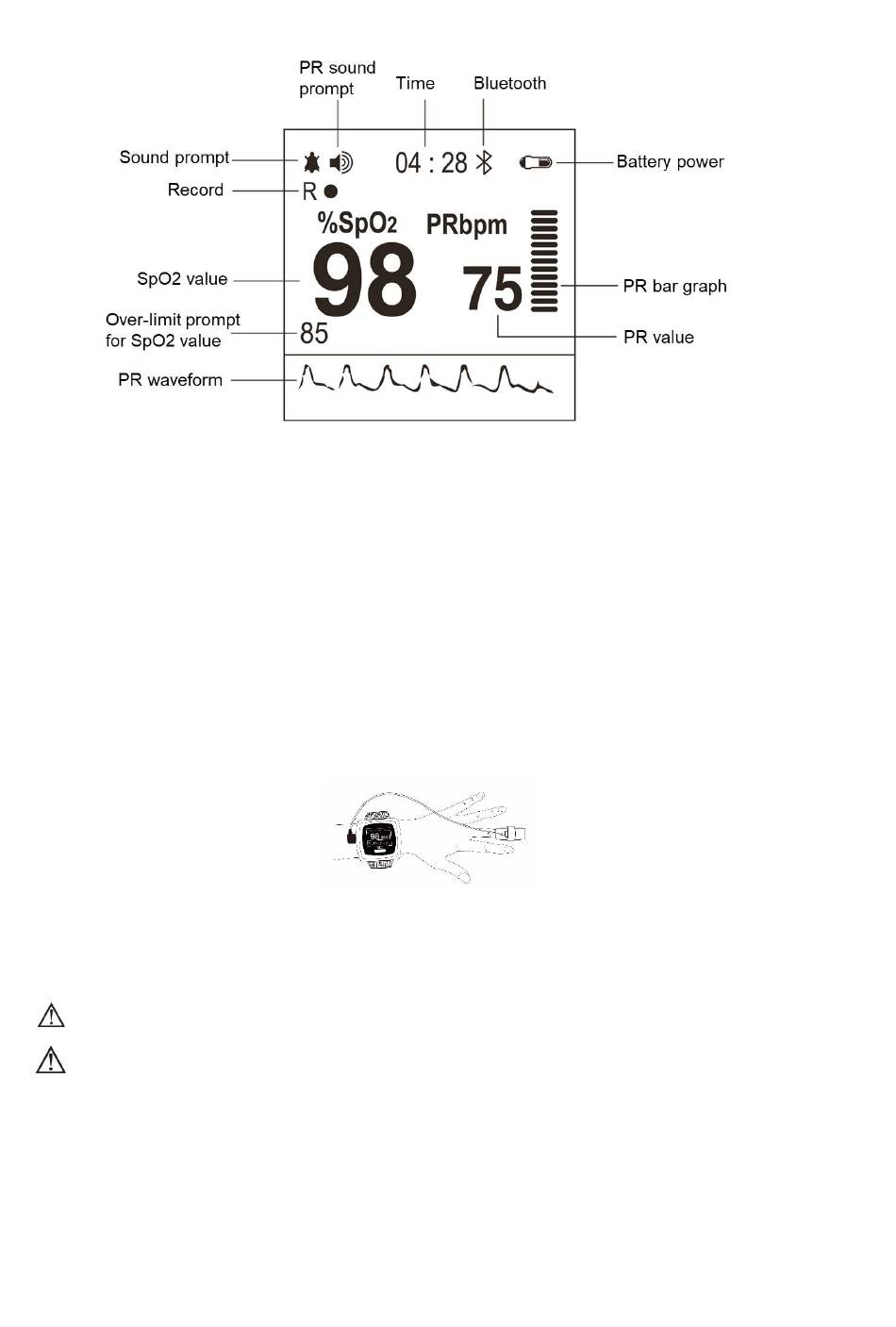

Figure 3 Measurement interface
Fig. 4
EN
