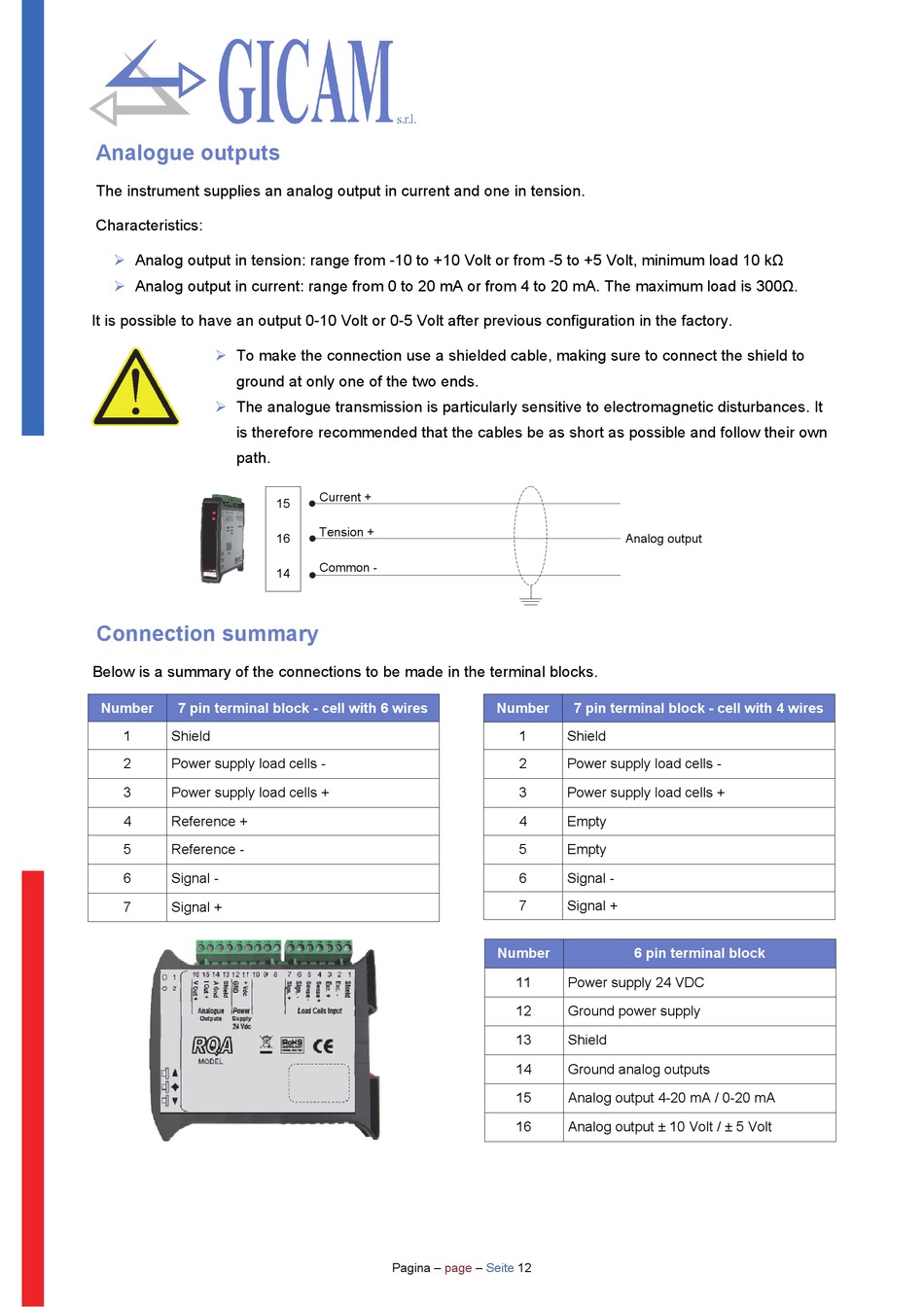

Analogue outputs
The instrument supplies an analog output in current and one in tension.
Characteristics:
Analog output in tension: range from -10 to +10 Volt or from -5 to +5 Volt, minimum load 10 kΩ
Analog output in current: range from 0 to 20 mA or from 4 to 20 mA. The maximum load is 300Ω.
It is possible to have an output 0-10 Volt or 0-5 Volt after previous configuration in the factory.
To make the connection use a shielded cable, making sure to connect the shield to
ground at only one of the two ends.
The analogue transmission is particularly sensitive to electromagnetic disturbances. It
is therefore recommended that the cables be as short as possible and follow their own
path.

Connection summary

Below is a summary of the connections to be made in the terminal blocks.
Number
7 pin terminal block - cell with 6 wires
1
Shield
2
Power supply load cells -
3
Power supply load cells +
4
Reference +
5
Reference -
6
Signal -
7
Signal +
Current +
15
Tension +
16
Common -
14
Pagina –
page
Analog output
Number
7 pin terminal block - cell with 4 wires
1
Shield
2
Power supply load cells -
3
Power supply load cells +
4
Empty
5
Empty
6
Signal -
7
Signal +
Number
6 pin terminal block
11
Power supply 24 VDC
12
Ground power supply
13
Shield
14
Ground analog outputs
15
Analog output 4-20 mA / 0-20 mA
16
Analog output ± 10 Volt / ± 5 Volt
