Video IntercomModule Door Station · User Manual

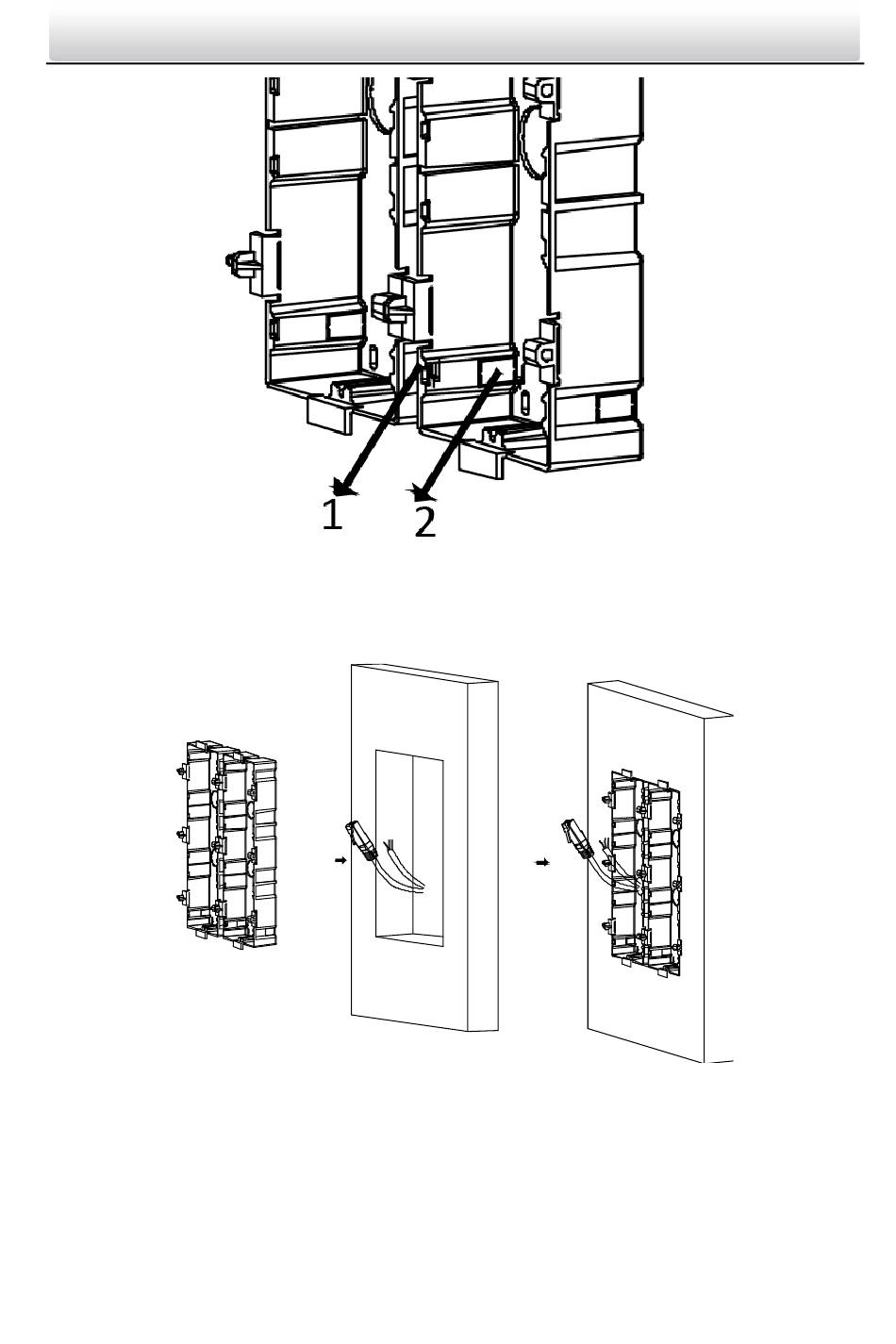

Figure 4-57 Remove the Plastic Sheets
5. Insert the gang boxes into the hole and pull out the cables through the cable entry. Mark the screw holes'
position with a marker, and take out the gang boxes.
Figure 4-58 Mark the Screw Holes
6. Chisel 8 holes with drill align to marks on the wall, and insert the expansion sleeves into the screw holes.
The suggested size of hole is 6 (diameter) × 45 (depth) mm.
7. Fix the gang boxes with 8 expansion bolts.
54
